Danfoss 02-165472

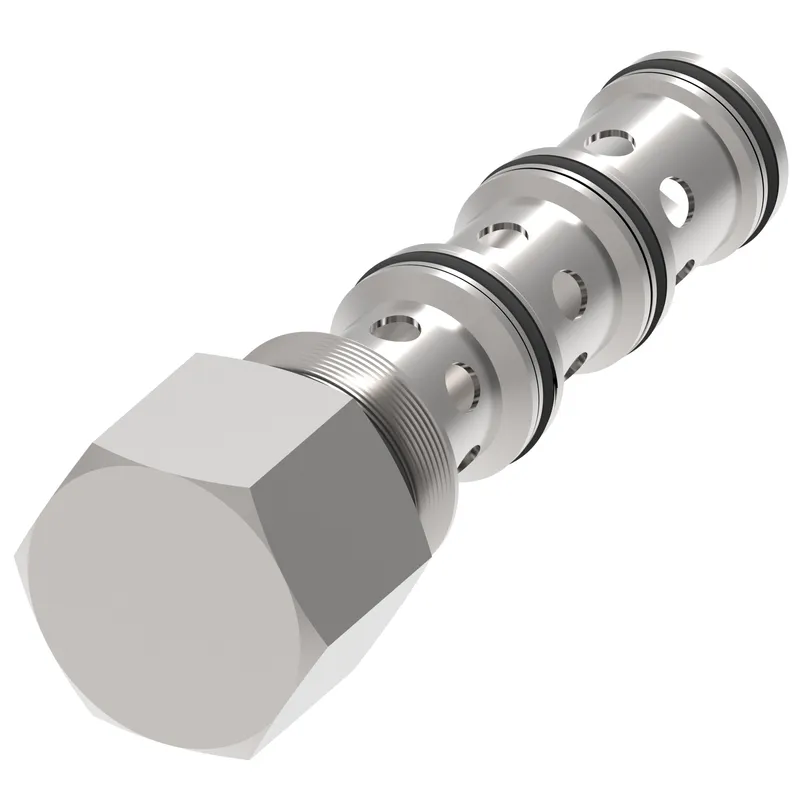

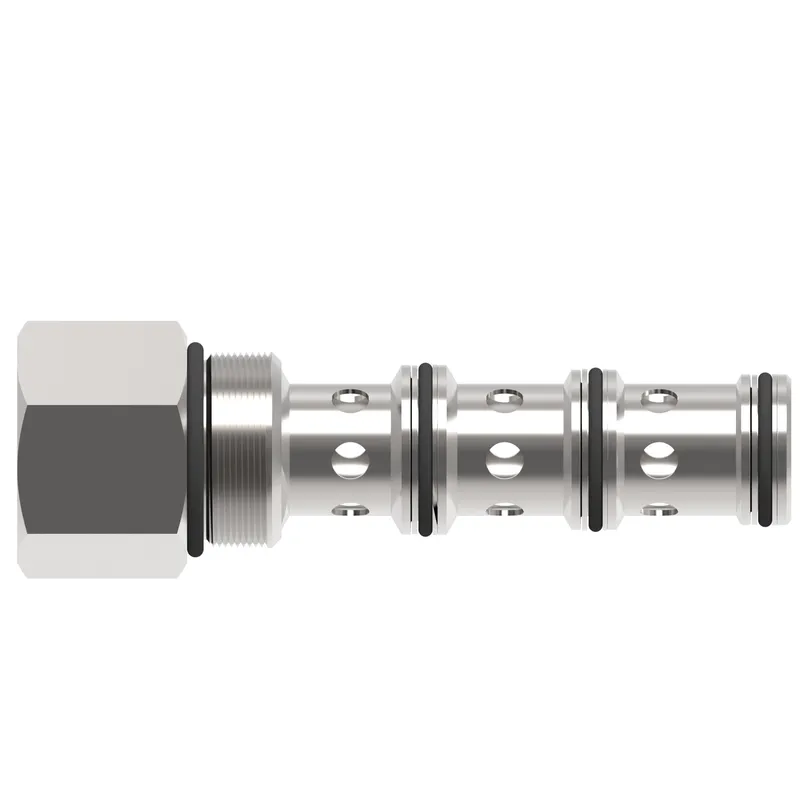

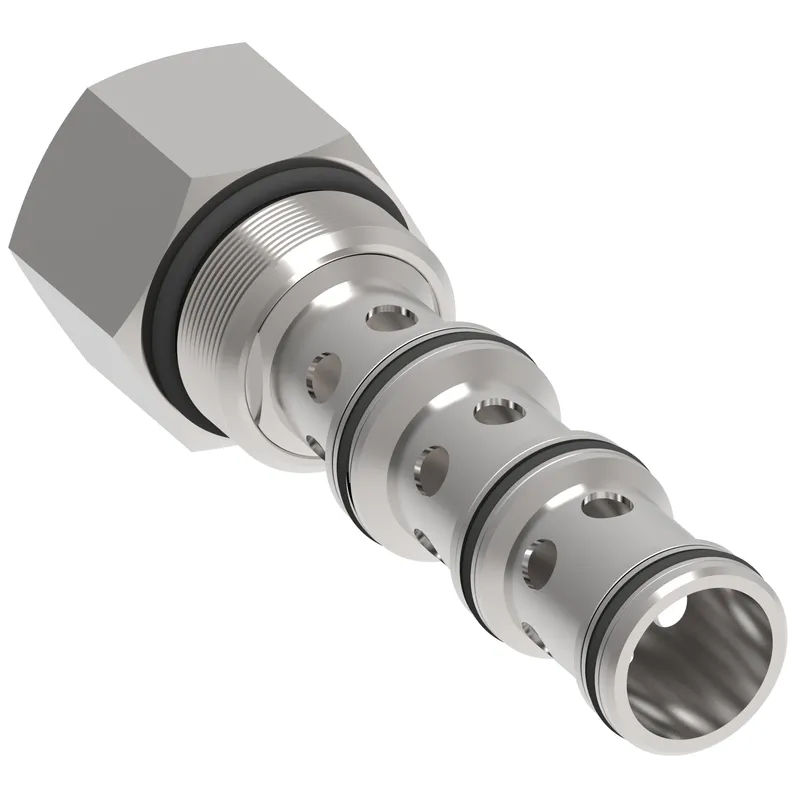

DSV4-10-0-0-160 HOT OIL SHUTTLE CART, DSV4-10-O-0-160

MPN: 02-165472
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-165472?

Danfoss DSV4-10-0-0-160 HOT OIL SHUTTLE CART, DSV4-10-O-0-160, manufacturer part number 02-165472. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation option	None
Adjustment type	None
Brand	Vickers by Danfoss
Cavity	C-10-4
Detent option	No
Flow rate GPM	7.00
Flow rate LPM	26.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Shuttle Valve
Housing	No
Housing material	None
Installation type	Screw-in Cartridge
Leakage	164 cc/min
Model Code 1	DSV4-10-O-0-160
Number of housing ports	4
Number of valve ports	4
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Pilot operated
Pilot pressure setting BAR	11.00
Port size	None
Port type	Cartridge Only
Pressure rating BAR	350.00
Pressure rating PSI	5000.00
Product height in	1.000
Product height mm	25.400
Product length in	3.040
Product length mm	77.216
Product width in	1.000
Product width mm	25.400 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	Open
Style	4-Way 2-Position
Torque into aluminium cavity	47-54 Nm
Torque into steel cavity	68-75 Nm
