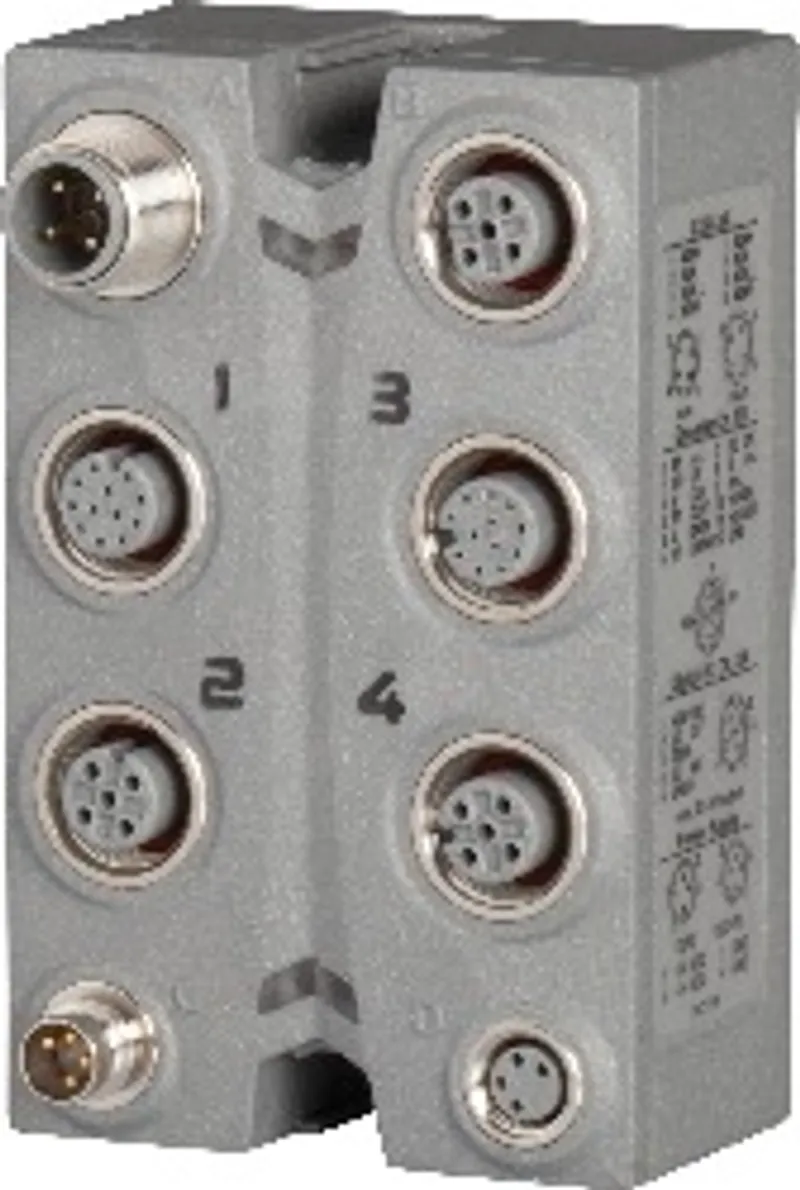

B&R X67DC2322

I/O module, 2 resolver inputs, 2 digital inputs

MPN: X67DC2322
Category: Multi-function

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X67DC2322?

2 resolvers

BRX/BRT evaluation

2 digital inputs and outputs for each

The module is equipped with 2 resolver connections as well as 2 digital inputs and outputs for each. It is possible to evaluate BRX and BRT resolvers using a configurable sine gain of 1 or 0.25.

Specifications

Short description

I/O module

2 resolver inputs, 2 digital inputs, 2 digital outputs

General information

Diagnostics – Outputs	Yes, using LED status indicator and software
Diagnostics – I/O power supply	Yes, using LED status indicator and software
Connection type – X2X Link	M12, B-coded
Connection type – Inputs/Outputs	M12, A-coded
Connection type – Encoder	M12, 12-pin, A-coded
Connection type – I/O power supply	M8, 4-pin
Power consumption – Internal I/O	1 W
Power consumption – X2X Link power supply	0.75 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0xA5C7
Status indicators	I/O function per channel, supply voltage, bus function
Additional power dissipation caused by actuators (resistive) [W]	12.5 W

Resolver inputs

Reference output – Output voltage	Typ. 4.4 V eff
Reference output – Output current	Max. 50 mA eff
Reference output – Frequency	10 kHz
Resolver transformation ratio – BRX	0.5 (±10%)
Resolver transformation ratio – BRT	1 (±10%)
Quantity	2
Type	Differential
Angular position resolution	14-bit
Short-circuit protection (reference output)	Yes
Input impedance	10.4 kΩ - j*11.1 kΩ
Resolver type	BRX / BRT

I/O power supply

Nominal voltage	24 VDC
Voltage range	18 to 30 VDC

Digital inputs

Input filter – Hardware	≤20 µs
Input filter – Software	-
Switching threshold – Low	<5 V
Switching threshold – High	>15 V
Quantity	2
Nominal voltage	24 VDC
Input current at 24 VDC	Typ. 5 mA
Input circuit	Sink
Sensor power supply	0.5 A summation current
Input delay	<1 ms

Digital outputs

Switching delay – 0 → 1	Max. 500 µs
Switching delay – 1 → 0	Max. 500 µs
Switching frequency – Resistive load	Max. 100 Hz
Quantity	2
Nominal voltage	24 VDC
Nominal output current	0.5 A
Total nominal current	1 A
Output circuit	Source
Output protection	Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply

Electrical properties

Electrical isolation

Channel isolated from bus ; Channel not isolated from channel

Operating conditions

Mounting orientation – Any	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP67

Ambient conditions

Temperature – Operation	-25 to 60°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C

Mechanical properties

Dimensions – Width	53 mm
Dimensions – Height	85 mm
Dimensions – Depth	42 mm
Torque for connections – M8	Max. 0.4 Nm
Torque for connections – M12	Max. 0.6 Nm
Weight	200 g
