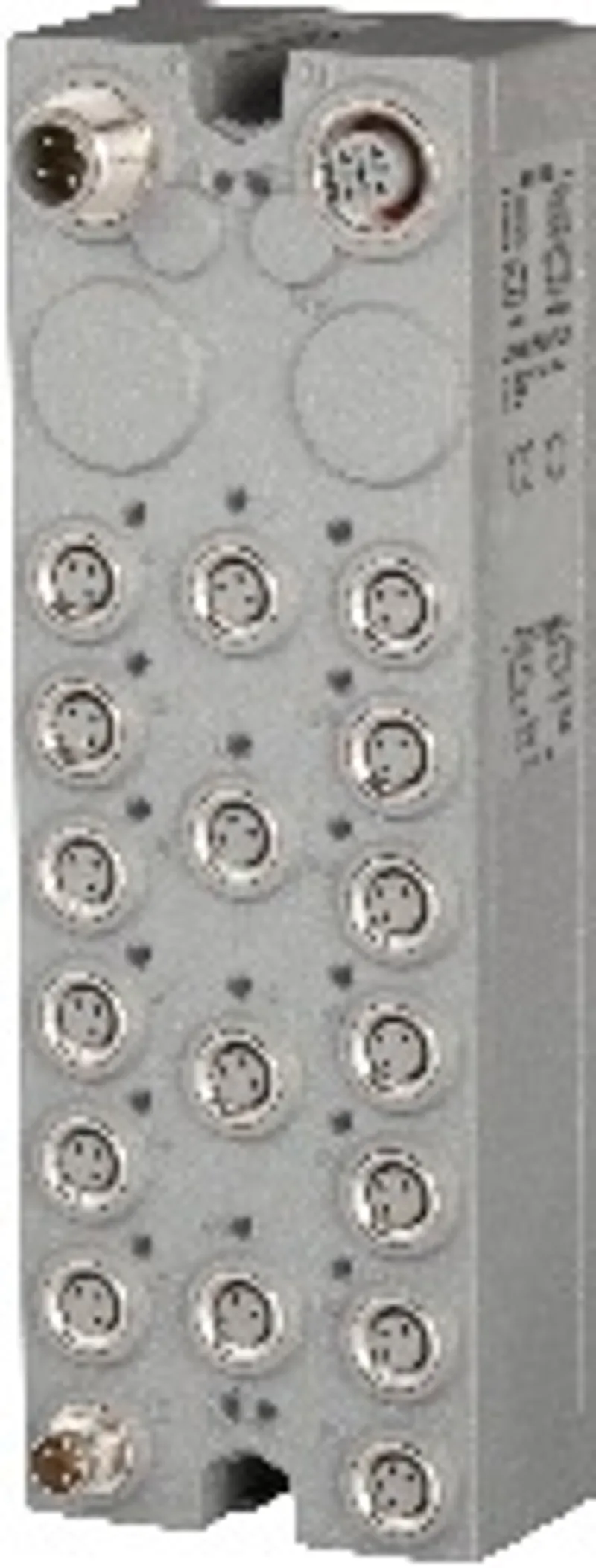

B&R X67DI1371.L08
I/O module, 16 digital inputs 24 VDC
- MPN
- X67DI1371.L08
- Category
- Digital input modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R X67DI1371.L08?
16 digital inputs
For all standard sensors with M8 connectors
1:1 replacement for passive distributors
Extremely short cycle times
Integrated sensor supply with short circuit protection
The module is a digital input module with high integration density. The module is equipped with 16 inputs and M8 connectors .
Specifications
Short description
| I/O module | 16 digital inputs 24 VDC |
General information
| Diagnostics – I/O power supply | Yes, using LED status indicator |
| Connection type – X2X Link | M12, B-coded |
| Connection type – Inputs | 16x M8, 3-pin |
| Connection type – I/O power supply | M8, 4-pin |
| Power consumption – Internal I/O | 0.5 W |
| Power consumption – X2X Link power supply | 0.75 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – KC | Yes |
| B&R ID code | 0x1A1A |
| Status indicators | I/O function per channel, supply voltage, bus function |
I/O power supply
| Power consumption – Sensor power supply | Max. 12 W (note: The power consumption of the sensors and actuators connected to the module is not permitted to exceed 12 W.) |
| Nominal voltage | 24 VDC |
| Voltage range | 18 to 30 VDC |
| Integrated protective function | Reverse polarity protection |
Digital inputs
| Input filter – Hardware | ≤100 μs |
| Input filter – Software | 1 ms |
| Switching threshold – Low | <5 VDC |
| Switching threshold – High | >15 VDC |
| Nominal voltage | 24 VDC |
| Input characteristics per EN 61131-2 | Type 1 |
| Input voltage | 18 to 30 VDC |
| Input current at 24 VDC | Typ. 7 mA |
| Input circuit | Sink |
| Input resistance | Typ. 3 kΩ |
| Sensor power supply | 0.5 A summation current |
| Insulation voltage between channel and bus | 500 V eff |
Sensor power supply
| Voltage | I/O power supply minus voltage drop for short-circuit protection |
| Voltage drop for short-circuit protection at 500 mA | Max. 2 VDC |
| Summation current | Max. 0.5 A |
| Short-circuit proof | Yes |
Electrical properties
| Electrical isolation | Channel isolated from bus ; Channel not isolated from channel |
Operating conditions
| Mounting orientation – Any | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP67 |
Ambient conditions
| Temperature – Operation | -25 to 60°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
Mechanical properties
| Dimensions – Width | 53 mm |
| Dimensions – Height | 155 mm |
| Dimensions – Depth | 42 mm |
| Torque for connections – M8 | Max. 0.4 Nm |
| Torque for connections – M12 | Max. 0.6 Nm |
| Weight | 300 g |
