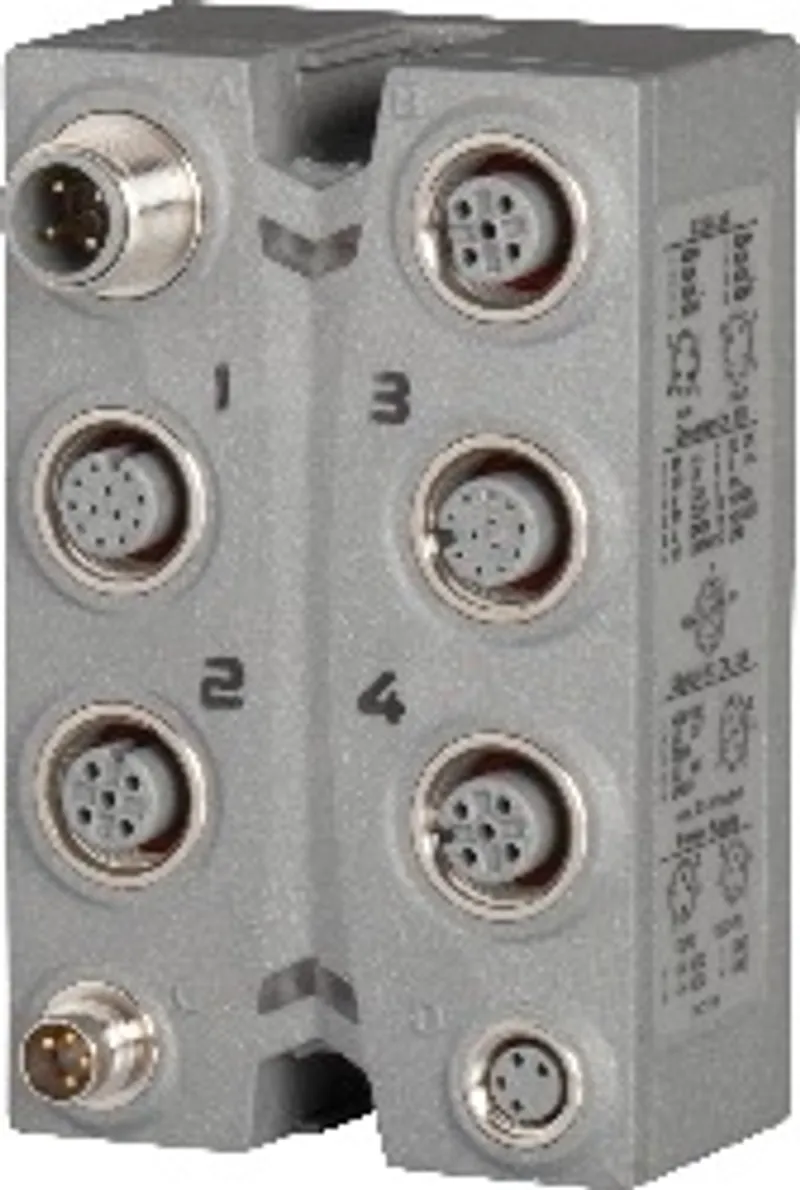

B&R X67DC1198
I/O module, 2 SSI absolute encoders 5 V or 2 ABR…
- MPN
- X67DC1198
- Category
- Multi-function
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R X67DC1198?
2 incremental or SSI encoder inputs 5 V
2 digital channels, 24 V per connection, configurable either as inputs or outputs
4 AB counters on the digital inputs
Pulse width modulation of the digital outputs
Encoder power supply 5 V and 24 V integrated in encoder connection
The possibilities are almost endless with this digital counter module.
Connectors 1 and 3 are 12-pin M12 connectors. Each of these can be used to connect 1 incremental encoder or SSI encoder with 5 V differential signals. In addition, there are 2 digital channels available on the same output which, when configured as inputs, can be used with incremental encoders with status outputs (e.g. alarms) . When configured as outputs, they act as preset and count direction switching functions when used together with SSI encoders, for example .
2 more sockets and 2 more configurable digital channels are available on female connectors 2 and 4. The inputs can be used as latch, gate, or home enable switches, while the outputs can be used as comparator outputs, for example .
Specifications
Short description
| I/O module | 2 SSI absolute encoders 5 V or 2 ABR incremental encoders 5 V, ; 4 AB counters or 4 up/down counters 24 V, ; 2x pulse width modulation, time measurement, relative timestamp |
General information
| Diagnostics – Outputs | Yes, using LED status indicator and software |
| Diagnostics – I/O power supply | Yes, using LED status indicator and software |
| Connection type – X2X Link | M12, B-coded |
| Connection type – Inputs/Outputs | 2x M12, 5-pin, A-coded |
| Connection type – SSI/ABR encoder | 2x M12, 12-pin, A-coded |
| Connection type – I/O power supply | M8, 4-pin |
| Power consumption – Internal I/O | 2.8 W |
| Power consumption – X2X Link power supply | 0.75 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – KC | Yes |
| Insulation voltage between encoder and bus | 500 V eff |
| B&R ID code | 0x18D0 |
| Sensor/Actuator power supply | 0.5 A summation current |
| Status indicators | I/O function per channel, supply voltage, bus function |
I/O power supply
| Power consumption – Sensor/Actuator power supply | Max. 12 W (note: The power consumption of the sensors and actuators connected to the module is not permitted to exceed 12 W.) |
| Nominal voltage | 24 VDC |
| Voltage range | 18 to 30 VDC |
| Integrated protective function | Reverse polarity protection |
Sensor/Actuator power supply
| Voltage | I/O power supply minus voltage drop for short-circuit protection |
| Voltage drop for short-circuit protection at 0.5 A | Max. 2 VDC |
| Summation current | Max. 0.5 A |
| Short-circuit proof | Yes |
SSI absolute encoder
| Encoder power supply – 5 VDC | Module-internal, max. 0.3 A summation current |
| Encoder power supply – 24 VDC | Module-internal, max. 0.5 A summation current |
| Quantity | 2 |
| Encoder inputs | 5 V, symmetrical |
| Counter size | 32-bit |
| Max. transfer rate | 1 Mbit/s |
| Coding | Gray/Binary |
| Overload characteristics of encoder power supply | Short-circuit proof, overload-proof |
| Transfer rate | 125 kbit/s, 250 kbit/s, 500 kbit/s, 1 Mbit/s |
ABR incremental encoder
| Encoder power supply – 5 VDC | Module-internal, max. 0.3 A summation current |
| Encoder power supply – 24 VDC | Module-internal, max. 0.5 A summation current |
| Input filter – Hardware | ≤200 ns |
| Input filter – Software | - |
| Quantity | 2 |
| Encoder inputs | 5 V, symmetrical |
| Counter size | 16/32-bit |
| Input frequency | Max. 250 kHz |
| Evaluation | 4x |
| Common-mode range | -7 V ≤ V CM ≤ +12 V |
| Overload characteristics of encoder power supply | Short-circuit proof, overload-proof |
AB counters
| Quantity | 4 |
| Evaluation | 4x |
| Input frequency | Max. 100 kHz |
| Encoder inputs | 24 V, asymmetrical |
| Encoder power supply 24 VDC | Module-internal, max. 0.5 A summation current |
| Counter size | 16/32-bit |
Digital inputs 5 VDC
| Input filter – Hardware | 200 ns |
| Input filter – Software | - |
| Quantity | Up to 6, configuration as input or output using software |
| Nominal voltage | 5 VDC differential signal, EiA RS485 standard |
| Input characteristics per EN 61131-2 | Type 1 |
| Additional functions | ABR incremental encoder, SSI absolute encoder, event counting, time measurement, relative timestamp |
Digital inputs 24 VDC
| Input filter – Hardware | ≤2 µs |
| Input filter – Software | - |
| Switching threshold – Low | <5 VDC |
| Switching threshold – High | >15 VDC |
| Quantity | Up to 8, configuration as input or output using software |
| Nominal voltage | 24 VDC |
| Input characteristics per EN 61131-2 | Type 1 |
| Input circuit | Sink |
| Input voltage | 18 to 30 VDC |
| Input current at 24 VDC | Approx. 3.3 mA |
| Input resistance | 7.31 kΩ |
| Additional functions | Reference enable inputs for ABR, event counting, latch function, time measurement, relative timestamp |
Event counters
| Quantity | 8 |
| Evaluation | 2x |
| Input frequency | Max. 100 kHz |
| Encoder inputs | 24 V, asymmetrical |
| Encoder power supply 24 VDC | Module-internal, max. 0.5 A summation current |
| Counter size | 16/32-bit |
Up/Down counters
| Quantity | 4 |
| Evaluation | 2x |
| Input frequency | Max. 100 kHz |
| Encoder inputs | 24 V, asymmetrical |
| Encoder power supply 24 VDC | Module-internal, max. 0.5 A summation current |
| Counter size | 16/32-bit |
Edge detection / Time measurement
| Counter frequency – Internal | 8 MHz, 4 MHz, 2 MHz, 1 MHz, 500 kHz, 250 kHz, 125 kHz, 62.5 kHz |
| Possible measurements | Gate time, period duration, edge offset for various channels |
| Measurements per module | Up to 9 |
| Measurements per channel | Up to 2 |
| Signal form | Square wave pulse |
| Counter size | 16-bit |
| Measurement type | Continuous or triggered |
Digital outputs 5 VDC
| Quantity | Up to 6, configuration as input or output using software |
| Type | 5 VDC differential signal, EiA RS485 standard |
| Output circuit | Sink or source |
| Output protection | Short circuit protection |
| Variant | Push / Pull / Push-Pull |
| Diagnostic status | Output monitoring |
Digital outputs 24 VDC
| Pulse width modulation – Period duration | 41.6 µs to 500 ms (note: Dead time when switching between push and pull: Max. 1.5 µs.) |
| Pulse width modulation – Pulse duration | 0 to 100% (note: Dead time when switching between push and pull: Max. 1.5 µs.) |
| Pulse width modulation – Resolution | 0.1% (note: Dead time when switching between push and pull: Max. 1.5 µs.) |
| Switching frequency – Resistive load | Max. 24 kHz |
| Switching delay – 0 → 1 | <2 µs |
| Switching delay – 1 → 0 | <2 µs |
| Quantity | Up to 8, configuration as input or output using software |
| Nominal voltage | 24 VDC |
| Nominal output current | 0.1 A |
| Total nominal current | 0.8 A |
| Variant | Push / Pull / Push-Pull |
| Output circuit | Sink or source |
| Output protection | Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply |
| Braking voltage when switching off inductive loads | Switching voltage + 0.6 VDC |
| Diagnostic status | Output monitoring |
| Switch-on in the event of overload shutdown or short-circuit shutdown | Approx. 10 ms (depends on the module temperature) |
| Peak short-circuit current | <10 A |
| Leakage current when the output is switched off | Max. 25 µA |
| Residual voltage | <0.9 V at 0.1 A nominal current |
| Switching voltage | I/O power supply minus residual voltage |
| Additional functions | Pulse width modulation, comparator function |
Electrical properties
| Electrical isolation | Bus isolated from encoder and channel ; Channel not isolated from channel and encoder ; Encoder not isolated from encoder |
Operating conditions
| Mounting orientation – Any | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP67 |
Ambient conditions
| Temperature – Operation | -25 to 60°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
Mechanical properties
| Dimensions – Width | 53 mm |
| Dimensions – Height | 85 mm |
| Dimensions – Depth | 42 mm |
| Torque for connections – M8 | Max. 0.4 Nm |
| Torque for connections – M12 | Max. 0.6 Nm |
| Weight | 200 g |
