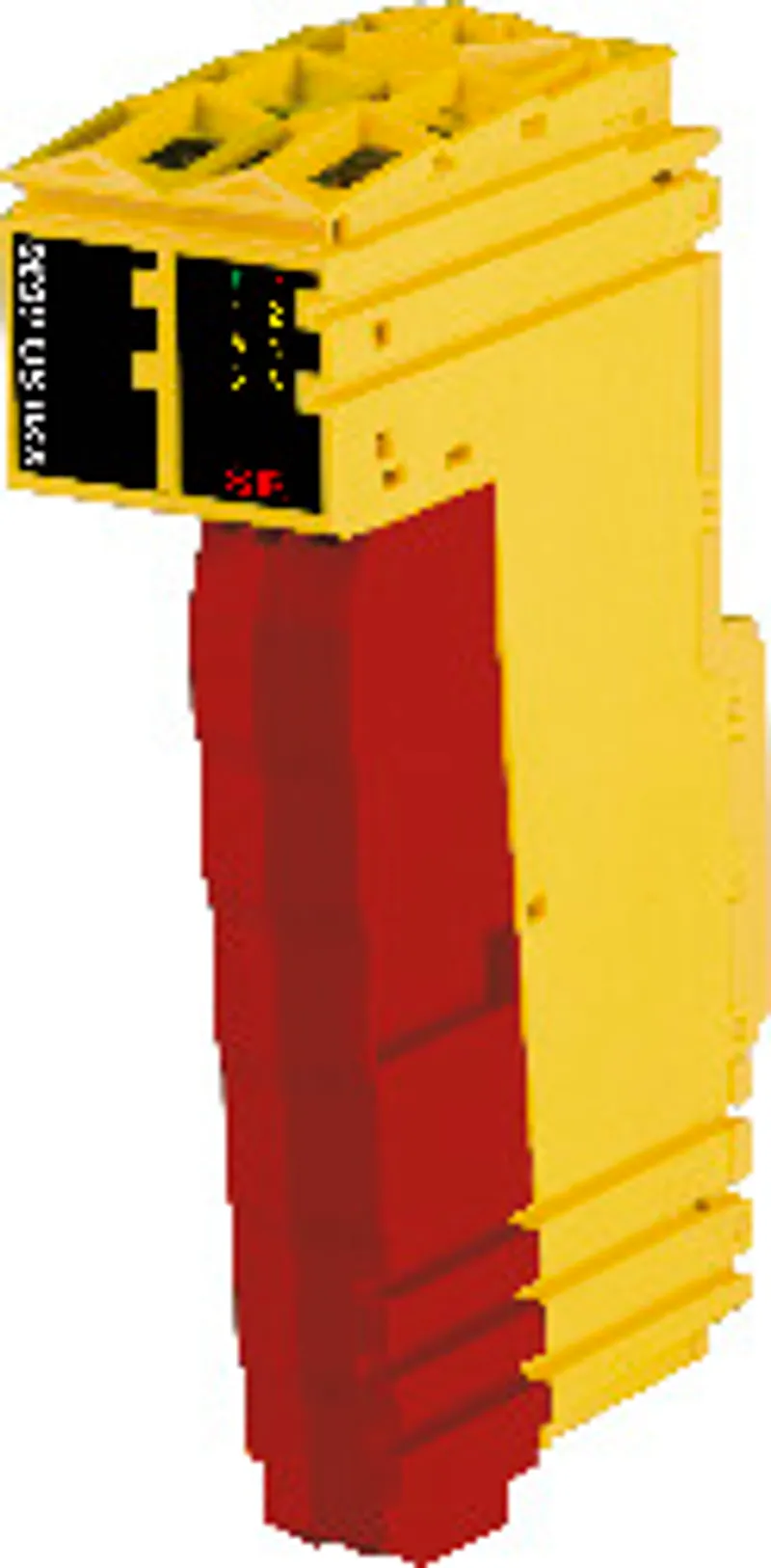

I/O module, 6 relays with 1 normally open contact each

MPN: X20SO6530
Category: Digital output modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20SO6530?

6 safe relay outputs

Output type "Relay"

Relay module for 230 VAC / 24 VDC

Switching current 6 A

Normally open contact

Single-channel isolated outputs

This module is equipped with 6 safe relay outputs.

The module can be used for controlling floating actuators in safety-related applications up to PL e or SIL 3.

Safety relays are installed in the module. The positively driven feedback contacts are evaluated internally by the module. Safe digital output channels provide protection against automatic restart when network errors occur.

This module is designed for X20 12-pin terminal blocks.

Specifications

Short description

I/O module

6 relays with 1 normally open contact each, 230 VAC / 2 A (6 A), 24 VDC / 6 A

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Outputs	Yes, using LED status indicator and software
Blackout mode – Scope	Module
Blackout mode – Function	Module functionality
Blackout mode – Standalone mode	No
Power consumption – Bus	0.26 W
Power consumption – Internal I/O	1.65 W
Electrical isolation – Channel - Bus	Yes
Electrical isolation – Channel - Channel	Yes
Certifications – EN 50155	No
Certifications – EN 61810-3	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – Functional safety	cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013
Certifications – Functional safety	IEC 61508, up to SIL 3 ; IEC 62061, up to SIL 3 ; ISO 13849-1, up to Cat. 4 / PL e ; IEC 61511-1, up to SIL 3
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment; cULus E537419; Engine generator controller
B&R ID code	0xF22A
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]Mechanical and electrical configuration" in the X20 system user's manual.">	4.32 (note: Number of outputs x Contact resistance x Nominal output current 2 . For a calculation example, see section)

Safety characteristics

Note	See section "Safety characteristics".

I/O power supply

Nominal voltage	24 VDC
Voltage range	24 VDC -15% / +20%
Integrated protective function	Reverse polarity protection

Relay outputs

Switching delay – 0 → 1	<50 ms
Switching delay – 1 → 0	<50 ms; Hardware upgrade 2.2.0.0 or later: <20 ms
Max. switching capacity – UL 508	B300 / R300
Quantity	6
Variant	Relay / Normally open contact, internal high-side and low-side control
Nominal output current	5 mA to 6 A (hardware revision <B5: 2 A)
Diagnostic status	Contact position determined by positively driven contacts
Max. switching frequency	See section "Inrush current behavior for output channels".
Insulation voltage between channel and bus	Safe disconnection of 300 VAC per EN 50178
Insulation voltage between channel and channel	Tested at 1350 VAC
Contact resistance (without terminal block)	20 mΩ
Contact service life	See "Contact service life".
Short-circuit/Overload protection	External 6 A gL/gG fuse (melting fuse), LS automat C characteristic 1.6 A
Switching voltage range	5 to 24 VDC, 5 to 230 VAC
Coil voltage	24 VDC -15% / +20%
Short-circuit proof	Yes, 1000 A (with specified short-circuit/overload protection)
Max. inrush current	AC: 50 A for 100 ms, DC: 10 A for 200 ms
Overvoltage category per EN 60664-1	II

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	0 to 60°C
Temperature – Vertical mounting orientation	0 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x safety-keyed terminal block separately.; Order 1x safety-keyed bus module separately.
Pitch	25 +0.2 mm

Accessories

Required accessories (order separately)

X20BM36	Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous.; Manual node number assignment; Independent from the electronic…
X20BM33	Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous. The bus module is the base for all SafeIO modules. The internal…
X20TB72	Terminal blocks — Tool-free wiring using push-in technology; Simple wire release using a lever; Labeling option for each terminal connection; Plain text labe…
