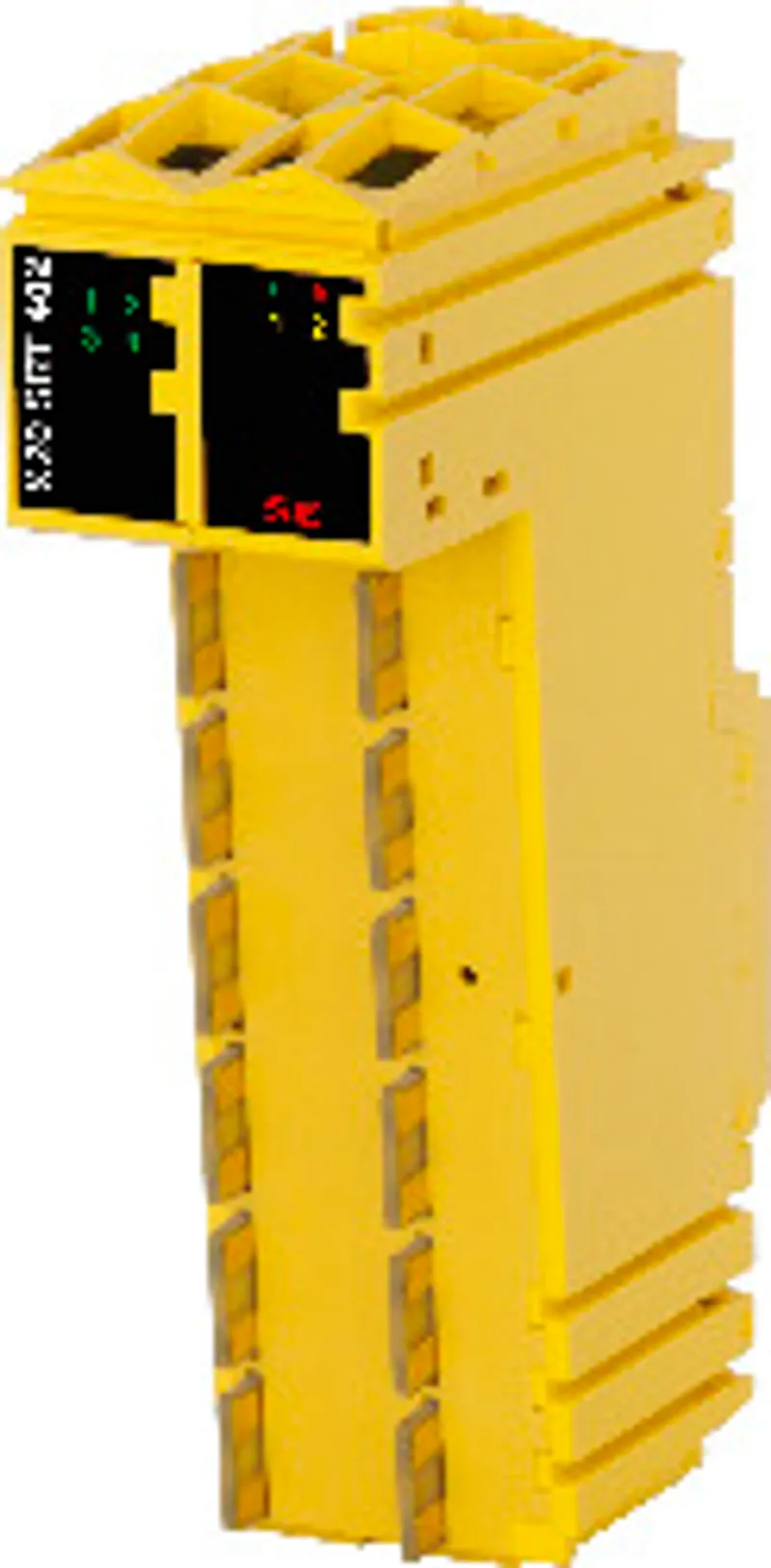

B&R X20SRT402
I/O module, 4 safe type A digital inputs, 4 pulse outputs
- MPN
- X20SRT402
- Category
- reACTION Technology modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R X20SRT402?
reACTION Technology module
4 high-speed safe digital inputs, sink circuit
4 pulse outputs
Software input filter configurable for each channel
2 high-speed safe digital outputs, output type B with 0.2 A, source circuit
Safe reACTION task cycle times starting at 150 µs
Integrated output protection
This reACTION Technology module is equipped with 4 high-speed safe digital inputs and 2 high-speed safe digital outputs. It is designed for a nominal voltage of 24 VDC.
The module can be used to read in digital signals and to control actuators in safety-related applications up to PL e or SIL 3.
Ultrafast reACTION Technology makes it possible to control internal I/O channels with cycle times down to 150 µs. All commands that can be used for reACTION programs are available as function blocks in special libraries (e.g. AsIORTI ). Programming in compliance with IEC 61131-3 requirements takes place in the Function Block Diagram editor in Automation Studio.
The module is equipped with filters that are individually configurable for switch-on and switch-off behavior. The module also provides pulse signals for diagnosing the sensor line.
The outputs are designed using semiconductor technology so that the safety-related characteristics do not depend on the number of switching cycles. The "high-side high-side" variant (output type B) is required for actuators with reference potential (e.g. enable inputs on frequency inverters). It is important to observe the special notices for the cabling in this case. The safe digital output modules are equipped with an error interlock in the event of network errors.
This module is designed for X20 12-pin terminal blocks.
Specifications
Short description
| I/O module | 4 safe type A digital inputs, 4 pulse outputs, 24 VDC, 2 safe type B2 digital outputs, 24 VDC, 0.2 A, OSSD <10 µs, reACTION Technology |
General information
| System requirements – Automation Studio | 4.2.5 or later |
| System requirements – Automation Runtime | 4.2 or later |
| System requirements – SafeDESIGNER | 4.2.2 or later |
| System requirements – Safety Release | 1.10 or later |
| System requirements – mapp Technology Package | mapp Safety 5.7.0 or later (note: The system requirements of the mapp Technology Package must be observed (see Automation Help).) |
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – Outputs | Yes, using LED status indicator and software |
| Diagnostics – Inputs | Yes, using LED status indicator and software |
| Support – reACTION-capable I/O channels | Yes |
| Blackout mode – Scope | Module |
| Blackout mode – Function | Programmable |
| Blackout mode – Standalone mode | Yes |
| Power consumption – Bus | 0.4 W |
| Power consumption – Internal I/O | 2.5 W |
| Additional power dissipation caused by actuators (resistive) [W]Mechanical and electrical configuration" in the X20 system user's manual."> – Safe digital HS-HS outputs | 0.4 (note: Number of outputs x R DS(on) x Nominal output current 2 . This value also applies to sensors that are supplied via these outputs. For a calculation example, see section) |
| Additional power dissipation caused by actuators (resistive) [W]Mechanical and electrical configuration" in the X20 system user's manual."> – Pulse outputs | 0.8 (note: Number of outputs x R DS(on) x Nominal output current 2 . This value also applies to sensors that are supplied via these outputs. For a calculation example, see section) |
| Electrical isolation – Channel - Bus | Yes |
| Electrical isolation – Channel - Channel | No |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – Functional safety | cULus FSPC in preparation; ANSI UL 1998 in preparation |
| Certifications – Functional safety | IEC 61508:2010, SIL 3; EN 62061:2005/A2:2015, SIL 3; EN ISO 13849-1:2015, Cat. 4 / PL e; IEC 61511:2004, SIL 3 |
| Certifications – Functional safety | EN 50156-1:2004 |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| B&R ID code | 0xE7EC |
| Status indicators | I/O function per channel, operating state, module status |
| Max. I/O cycle time | 800 µs |
| Type of signal lines | Shielded lines must be used for all signal lines. (note: For additional information, see the Installation/EMC guide.) |
Safety characteristics
| EN ISO 13849-1:2015 – Mission time | Max. 20 years |
| IEC 61508:2010,; IEC 61511:2004,; EN 62061:2013 – openSAFETY wired | Negligible |
| IEC 61508:2010,; IEC 61511:2004,; EN 62061:2013 – openSAFETY wireless | <1*10 -14 * Number of openSAFETY packets per hour |
| IEC 61508:2010,; IEC 61511:2004,; EN 62061:2013 – Proof test interval (PT) | 20 years |
| Safe digital inputs – Category | Cat. 3 when using individual input channels, ; Cat. 4 when using input channel pairs (e.g. SI1 and SI2) or more than 2 input channelsSafety technology" in Automation Help must be observed."> (note: In addition, the danger notices in the technical data sheet and section) |
| Safe digital inputs – PL | PL e |
| Safe digital inputs – DC | >94% |
| Safe digital inputs – MTTFD per channel | 100 years when using individual input channels, ; 2500 years when using input channel pairs (e.g. SI1 and SI2) or more than 2 input channels |
| Safe digital inputs – SIL CL | SIL 3 |
| Safe digital inputs – SFF | >90% |
| Safe digital inputs – PFH / PFH d per channel | <1*10 -10 |
| Safe digital inputs – PFD per channel | <2*10 -5 |
| Safe digital outputs – Category | Cat. 3 if parameter "Disable OSSD = Yes - Warning", ; Cat. 4 if parameter "Disable OSSD = No"Safety technology" in Automation Help must be observed."> (note: In addition, the danger notices in the technical data sheet and section) |
| Safe digital outputs – PL | PL d if parameter "Disable OSSD = Yes - Warning", ; PL e if parameter "Disable OSSD = No"Safety technology" in Automation Help must be observed."> (note: In addition, the danger notices in the technical data sheet and section) |
| Safe digital outputs – DC | >60% if parameter "Disable OSSD = Yes - Warning", ; >94% if parameter "Disable OSSD = No"Safety technology" in Automation Help must be observed."> (note: In addition, the danger notices in the technical data sheet and section) |
| Safe digital outputs – MTTFD per channel | 100 years if parameter "Disable OSSD = Yes - Warning", ; 2500 years if parameter "Disable OSSD = No"Safety technology" in Automation Help must be observed."> (note: In addition, the danger notices in the technical data sheet and section) |
| Safe digital outputs – SIL CL | SIL 2 if parameter "Disable OSSD = Yes - Warning", ; SIL 3 if parameter "Disable OSSD = No"Safety technology" in Automation Help must be observed."> (note: In addition, the danger notices in the technical data sheet and section) |
| Safe digital outputs – SFF | >60% if parameter "Disable OSSD = Yes - Warning", ; >90% if parameter "Disable OSSD = No"Safety technology" in Automation Help must be observed."> (note: In addition, the danger notices in the technical data sheet and section) |
| Safe digital outputs – PFH / PFH d per channel | <5*10 -8 if parameter "Disable OSSD = Yes - Warning", ; <1*10 -10 if parameter "Disable OSSD = No"Safety technology" in Automation Help must be observed."> (note: In addition, the danger notices in the technical data sheet and section) |
| Safe digital outputs – PFD per channel | <1*10 -3 if parameter "Disable OSSD = Yes - Warning", ; <2*10 -5 if parameter "Disable OSSD = No"Safety technology" in Automation Help must be observed."> (note: In addition, the danger notices in the technical data sheet and section) |
I/O power supply
| Nominal voltage | 24 VDC |
| Voltage range | 24 VDC -15% / +20% |
| Integrated protective function | Reverse polarity protection |
Safe digital inputs
| Input filter – Hardware | ≤130 µs |
| Input filter – Software | Configurable between 0 and 500 ms |
| Switching threshold – Low | <5 VDC |
| Switching threshold – High | >15 VDC |
| Quantity | 4 |
| Variant | Type A |
| Nominal voltage | 24 VDC |
| Input characteristics per EN 61131-2 | Type 1 |
| Input circuit | Sink |
| Input voltage | 24 VDC -15% / +20% |
| Input current at 24 VDC | Min. 2 mA to max. 3.28 mA (note: The input current specifications refer to the switched-on state of the input.) |
| Input resistance | Min. 7.33 kΩ |
| Error detection time | 100 ms |
| Insulation voltage between channel and bus | 500 V eff |
| Line length between signal source (pulse output or external signal) and input | Max. 60 m with unshielded line; Max. 400 m with shielded line |
Safe digital HS-HS outputs
| Quantity | 2 |
| Variant | FET, 2x positive switching, type B2, output level readable |
| Nominal voltage | 24 VDC |
| Nominal output current | 0.2 A |
| Total nominal current | 0.4 A |
| Output protection | See section "Inrush current behavior for output channels". |
| Braking voltage when switching off inductive loads | Max. 45 VDC |
| Error detection time | 1 s |
| Insulation voltage between channel and bus | 500 V eff |
| Peak short-circuit current | See section "Inrush current behavior for output channels". |
| Leakage current when the output is switched off | <100 µA |
| R DS(on) | 5 Ω |
| Switching voltage | I/O power supply minus voltage drop due to R DS(on) |
| Max. switching frequency | See section "Inrush current behavior for output channels". |
| Test pulse length | Max. 10 µs |
| Max. capacitive load | 100 nF |
Current on loss of ground
| I OUT | <100 µA |
| I GND | <200 mA |
Pulse outputs
| Quantity | 4 |
| Variant | Push-Pull |
| Nominal output current | 50 mA |
| Output protection | Shutdown of individual channels in the event of overload or short circuit (note: The protective function is provided for max. 30 minutes for a continuous short circuit.) |
| Peak short-circuit current | 0.5 A for 120 µs |
| Short-circuit current | 15 mA eff |
| Leakage current when the output is switched off | 0.1 mA |
| R DS(on) | 80 Ω |
| Switching voltage | I/O power supply minus voltage drop due to R DS(on) |
| Total nominal current | 200 mA |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level | 0 to 2000 m, no limitation |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | 0 to 60°C |
| Temperature – Vertical mounting orientation | 0 to 50°C |
| Temperature – Derating | See section "Derating". |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 2x safety-keyed terminal block separately.; Order 1x safety-keyed bus module separately. |
| Pitch | 25 +0.2 mm |
Accessories
Required accessories (order separately)
| X20BM36 | Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous.; Manual node number assignment; Independent from the electronic… |
| X20BM33 | Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous. The bus module is the base for all SafeIO modules. The internal… |
| X20TB52 | Terminal blocks — Tool-free wiring using push-in technology; Simple wire release using a lever; Labeling option for each terminal connection; Plain text labe… |
