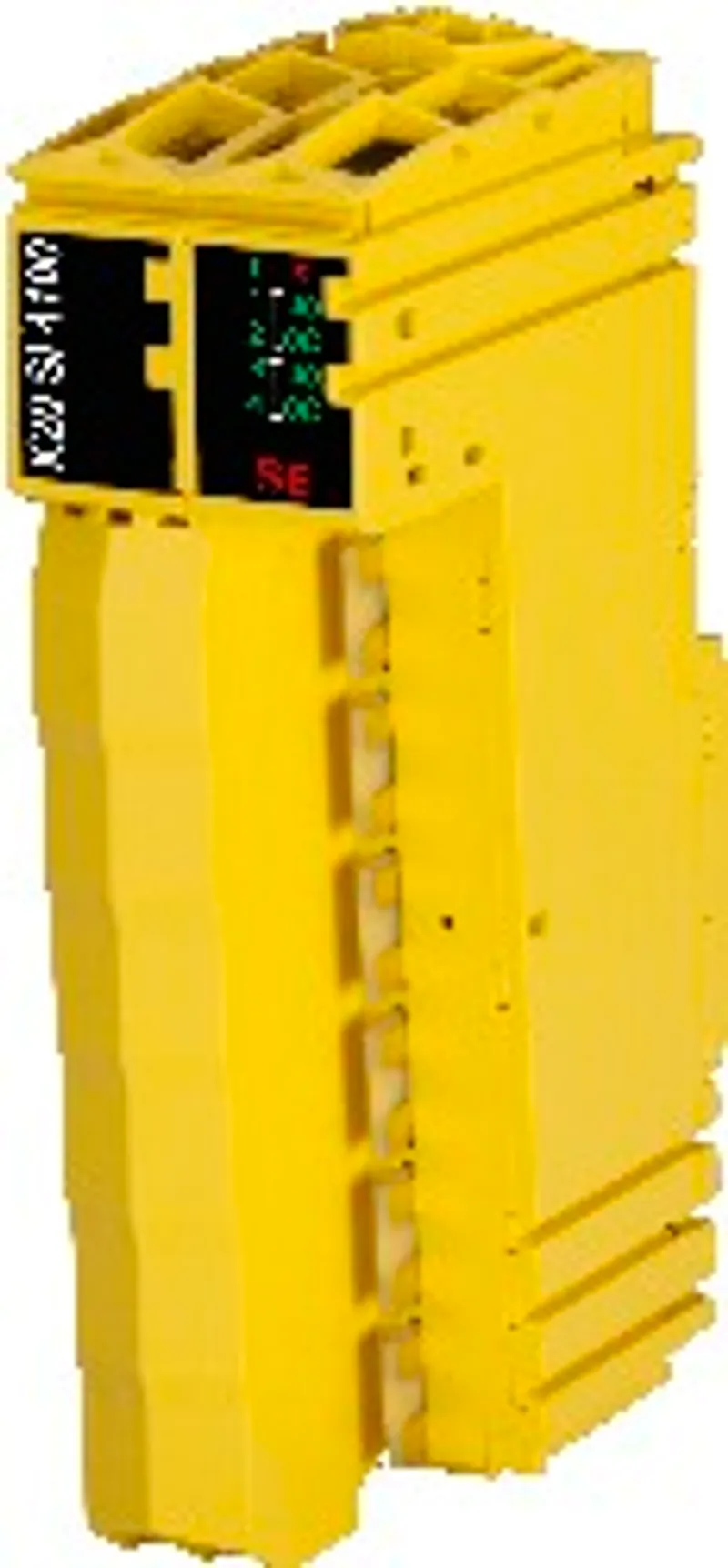

B&R X20SI4100

I/O module, 4 safe type A digital inputs, 4 pulse outputs

MPN: X20SI4100
Category: Digital input modules

€210.94excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20SI4100?

4 safe digital inputs

4 pulse outputs

Sink circuit

Software input filter configurable for each channel

This module is equipped with 4 safe digital inputs. It is designed for a nominal voltage of 24 VDC.

The module can be used to read various digital signals in safety-related applications up to PL e or SIL 3.

The module is equipped with filters that are individually configurable for switch-on and switch-off behavior. The module also provides pulse signals for diagnosing the sensor line.

This module is designed for X20 12-pin terminal blocks.

Specifications

Short description

I/O module

4 safe type A digital inputs, 4 pulse outputs, 24 VDC

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Inputs	Yes, using LED status indicator and software
Blackout mode – Scope	Module
Blackout mode – Function	Module functionality
Blackout mode – Standalone mode	No
Power consumption – Bus	0.32 W
Power consumption – Internal I/O	1.25 W
Electrical isolation – Channel - Bus	Yes
Electrical isolation – Channel - Channel	No
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – Functional safety	cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013
Certifications – Functional safety	IEC 61508, up to SIL 3 ; IEC 62061, up to SIL 3 ; ISO 13849-1, up to Cat. 4 / PL e ; IEC 61511, up to SIL 3
Certifications – Functional safety	EN 50156-1
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment; cULus E537419; Engine generator controller
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC21B ; Temperature: 5 - 45°C; Vibration: 0.7 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0x1DBD
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]Mechanical and electrical configuration" in the X20 system user's manual.">	0.6 (note: Number of outputs x R DS(on) x Nominal output current 2 . This value also applies to sensors that are supplied via these outputs. For a calculation example, see section)

Safety characteristics

Note	See section "Safety characteristics".

I/O power supply

Nominal voltage	24 VDC
Voltage range	24 VDC -15% / +20%
Integrated protective function	Reverse polarity protection

Safe digital inputs

Input filter – Hardware	≤150 μs
Input filter – Software	Configurable between 0 and 500 ms
Switching threshold – Low	<5 VDC
Switching threshold – High	>15 VDC
Quantity	4
Variant	Type A
Nominal voltage	24 VDC
Input characteristics per EN 61131-2	Type 1
Input circuit	Sink
Input voltage	24 VDC -15% / +20%
Input current at 24 VDC	Min. 2 mA to max. 4.59 mA. Hardware revision J0 and later: Min. 2 mA to max. 3.28 mA. (note: The input current specifications refer to the switched-on state of the input.)
Input resistance	Min. 5.23 kΩ, hardware revision J0 and later: Min. 7.33 kΩ
Error detection time	100 ms
Insulation voltage between channel and bus	500 V eff
Line length between signal source (pulse output or external signal) and input	Max. 60 m with unshielded line; Max. 400 m with shielded line

Pulse outputs

Quantity	4
Variant	Push-Pull
Nominal output current	100 mA, hardware revision J0 and later: 50 mA
Output protection	Thermal shutdown of all channels in the event of overload or short circuit, hardware revision J0 and later: Shutdown of individual channels in the event of overload or short circuit (note: The protective function is provided for max. 30 minutes for a continuous short circuit.)
Peak short-circuit current	300 mA, hardware revision J0 and later: 25 A for 15 µs
Short-circuit current	100 mA eff
Leakage current when the output is switched off	0.1 mA
R DS(on)	60 Ω
Switching voltage	I/O power supply minus voltage drop due to R DS(on)
Total nominal current	400 mA, hardware revision J0 and later: 200 mA

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	0 to 60°C
Temperature – Vertical mounting orientation	0 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x safety-keyed terminal block separately.; Order 1x safety-keyed bus module separately.
Pitch	25 +0.2 mm

Accessories

Required accessories (order separately)

X20BM36	Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous.; Manual node number assignment; Independent from the electronic…
X20BM33	Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous. The bus module is the base for all SafeIO modules. The internal…
X20TB52	Terminal blocks — Tool-free wiring using push-in technology; Simple wire release using a lever; Labeling option for each terminal connection; Plain text labe…
