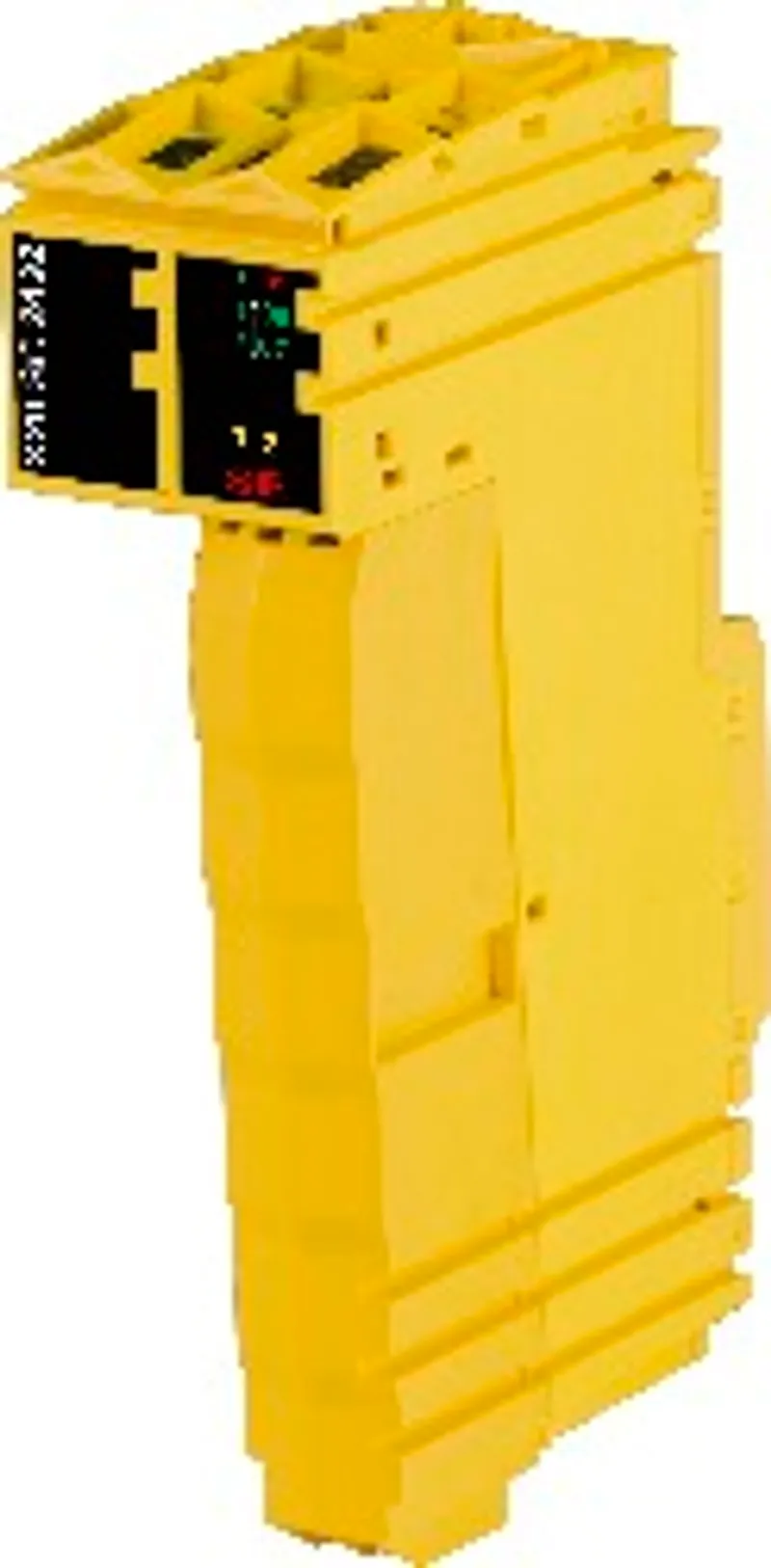

I/O module, 2 safe type A digital inputs, 2 pulse outputs

MPN: X20SC2432
Category: Digital mixed modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20SC2432?

2 safe digital inputs, sink circuit

2 pulse outputs

Software input filter configurable for each channel

2 safe relay outputs

Output type "Relay"

Relay module for 48 VAC / 24 VDC

Switching current 6 A

Normally open contact

Single-channel isolated outputs

The module is equipped with 2 safe digital inputs and 2 safe relay outputs. It is designed for a nominal voltage of 24 VDC.

The module can be used to read digital signals and for floating control of actuators in safety-related applications up to PL e or SIL 3.

The module is equipped with filters that are individually configurable for switch-on and switch-off behavior. The module also provides pulse signals for diagnosing the sensor line.

Safety relays are installed in the module. The positively driven feedback contacts are evaluated internally by the module. Safe digital output channels provide protection against automatic restart when network errors occur.

This module is designed for X20 12-pin terminal blocks.

Specifications

Short description

I/O module

2 safe type A digital inputs, 2 pulse outputs, 24 VDC, 2 relays with 1 normally open contact each, 48 VAC / 6 A, 24 VDC / 6 A

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Outputs	Yes, using LED status indicator and software
Diagnostics – Inputs	Yes, using LED status indicator and software
Blackout mode – Scope	Module
Blackout mode – Function	Module functionality
Blackout mode – Standalone mode	No
Power consumption – Bus	0.26 W
Power consumption – Internal I/O	1.15 W
Additional power dissipation caused by actuators (resistive) [W] – Relay outputsMechanical and electrical configuration" in the X20 system user's manual.">	1.44 (note: Number of outputs x Contact resistance x Nominal output current 2 . For a calculation example, see section)
Additional power dissipation caused by actuators (resistive) [W] – Pulse outputsMechanical and electrical configuration" in the X20 system user's manual.">	0.1 (note: Number of outputs x R DS(on) x Nominal output current 2 . This value also applies to sensors that are supplied via these outputs. For a calculation example, see section)
Electrical isolation – Channel - Bus	Yes
Electrical isolation – Channel - Channel	Yes
Certifications – EN 50155	Yes
Certifications – EN 61810-3	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – Functional safety	cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013
Certifications – Functional safety	IEC 61508, up to SIL 3 ; IEC 62061, up to SIL 3 ; ISO 13849-1, up to Cat. 4 / PL e ; IEC 61511, up to SIL 3
Certifications – Functional safety	EN 50156-1
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment; cULus E537419; Engine generator controller
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC21B ; Temperature: 5 - 45°C; Vibration: 0.7 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0xA7A4
Status indicators	I/O function per channel, operating state, module status

Safety characteristics

Note	See section "Safety characteristics".

I/O power supply

Nominal voltage	24 VDC
Voltage range	24 VDC -15% / +20%
Integrated protective function	Reverse polarity protection

Safe digital inputs

Input filter – Hardware	≤150 μs
Input filter – Software	Configurable between 0 and 500 ms
Switching threshold – Low	<5 VDC
Switching threshold – High	>15 VDC
Quantity	2
Variant	Type A
Nominal voltage	24 VDC
Input characteristics per EN 61131-2	Type 1
Input circuit	Sink
Input voltage	24 VDC -15% / +20%
Input current at 24 VDC	Min. 2 mA to max. 4.59 mA (note: The input current specifications refer to the switched-on state of the input.)
Input resistance	Min. 5.23 kΩ
Error detection time	100 ms
Insulation voltage between channel and bus	500 V eff
Line length between signal source (pulse output or external signal) and input	Max. 60 m with unshielded line; Max. 400 m with shielded line

Relay outputs

Switching delay – 0 → 1	<50 ms
Switching delay – 1 → 0	<50 ms
Max. switching capacity – AC1	48 VAC / 6 A
Max. switching capacity – AC15	48 VAC / 3 A
Max. switching capacity – DC1	24 VDC / 6 A
Max. switching capacity – DC13	24 VDC / 5 A / 0.1 Hz
Max. switching capacity – UL 508	B300 / R300
Quantity	2
Variant	Relay / Normally open contact, internal high-side and low-side control
Nominal output current	5 mA to 6 A
Diagnostic status	Contact position determined by positively driven contacts
Max. switching frequency	See section "Inrush current behavior for output channels".
Insulation voltage between channel and bus	Safe disconnection of 300 VAC per EN 50178
Insulation voltage between channel and channel	48 VAC
Contact resistance (without terminal block)	20 mΩ
Contact service life	See "Contact service life".
Short-circuit/Overload protection	External 6 A gL/gG fuse (melting fuse), LS automat C characteristic 1.6 A
Switching voltage range	5 to 24 VDC, 5 to 48 VAC
Coil voltage	24 VDC -15% / +20%
Short-circuit proof	Yes, 1000 A (with specified short-circuit/overload protection)
Max. inrush current	30 A for 20 ms
Overvoltage category per EN 60664-1	II

Pulse outputs

Quantity	2
Variant	Push-Pull
Nominal output current	50 mA
Output protection	Shutdown of individual channels in the event of overload or short circuit (note: The protective function is provided for max. 30 minutes for a continuous short circuit.)
Peak short-circuit current	25 A for 5 ms
Short-circuit current	1.4 A eff
Leakage current when the output is switched off	0.1 mA
R DS(on)	20 Ω
Switching voltage	I/O power supply minus voltage drop due to R DS(on)
Total nominal current	100 mA

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	0 to 60°C (note: Compared to the value in the X20 system user's manual, where the angle of the horizontal mounting orientation is specified as 70°, this only applies up to an angle of 85° for the X20(c)SC2432. Below this, the derating for face-up installation must be applied.)
Temperature – Vertical mounting orientation	0 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x safety-keyed terminal block separately.; Order 1x safety-keyed bus module separately.
Pitch	25 +0.2 mm

Accessories

Required accessories (order separately)

X20BM36	Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous.; Manual node number assignment; Independent from the electronic…
X20BM33	Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous. The bus module is the base for all SafeIO modules. The internal…
X20TB52	Terminal blocks — Tool-free wiring using push-in technology; Simple wire release using a lever; Labeling option for each terminal connection; Plain text labe…
