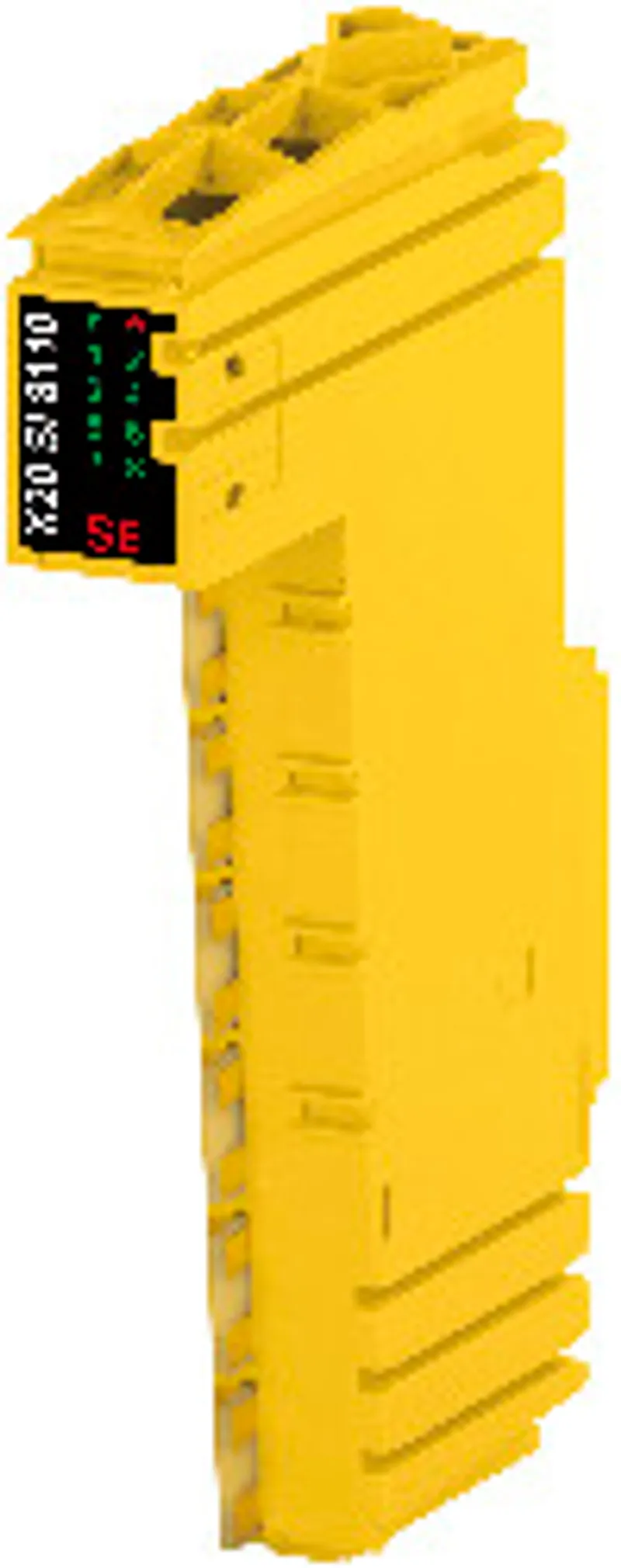

B&R X20SI8110

Name: B&R X20SI8110
Brand: B&R
SKU: X20SI8110

MPN: X20SI8110 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Digital input modules
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can X20SI8110 be shipped?

X20SI8110 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20SI8110 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20SI8110 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20SI8110, subject to availability and destination.

8 safe digital inputs4 pulse outputsSink circuitSoftware input filter configurable for each channelSingle-width module This single-width module is equipped with 8 safe digital inputs. It is designed for a nominal voltage of 24 VDC.The module can be used to read various digital signals in safety-related applications up to PL e or SIL 3.The module is equipped with filters that are individually configurable for switch-on and switch-off behavior. The module also provides pulse signals for diagnosing the sensor line.This module is designed for X20 12-pin terminal blocks.

Specifications

I/O module	8 safe type A digital inputs, 4 pulse outputs, 24 VDC
B&R ID code	0xE742
Status indicators	I/O function per channel, operating state, module status
Module run/error	Yes, using LED status indicator and software
Inputs	Yes, using LED status indicator and software
Scope	Module
Function	Module functionality
Standalone mode	No
Max. I/O cycle time	1 ms
Bus	0.4 W
Internal I/O	2.5 W
Additional power dissipation caused by actuators (resistive) [W]	0.8
Channel - Bus	Yes
Channel - Channel	No
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	In preparation
Functional safety	EN 50156-1:2004
ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL	cULus E115267 Industrial control equipment
Note	Order 1x safety-keyed terminal block separately. Order 1x safety-keyed bus module (single-width) separately.
Nominal voltage	24 VDC
Voltage range	24 VDC -15% / +20%
Integrated protective function	Reverse polarity protection
Quantity	4
Variant	Push-Pull
Input characteristics per EN 61131-2	Type 1
Hardware	≤150 μs
Software	Configurable between 0 and 500 ms
Input circuit	Sink
Input voltage	24 VDC -15% / +20%
Input current at 24 VDC	Min. 2 mA to max. 3.28 mA
Input resistance	Min. 7.33 kΩ
Error detection time	100 ms
Insulation voltage between channel and bus	500 Veff
Low	<5 VDC
High	>15 VDC
Line length between signal source (pulse output or external signal) and input	Max. 60 m with unshielded line Max. 400 m with shielded line
Nominal output current	50 mA
Output protection	Shutdown of individual channels in the event of overload or short circuit
Peak short-circuit current	0.5 A for 120 µs
Short-circuit current	15 mAeff
Leakage current when the output is switched off	0.1 mA
RDS(on)	80 Ω
Switching voltage	I/O power supply minus voltage drop due to RDS(on)
Total nominal current	200 mA
Horizontal	Yes
Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20
Horizontal mounting orientation	0 to 60°C
Vertical mounting orientation	0 to 50°C
Derating	See section "Derating".
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing
Operation	5 to 95%, non-condensing
Pitch	12.5+0.2 mm
