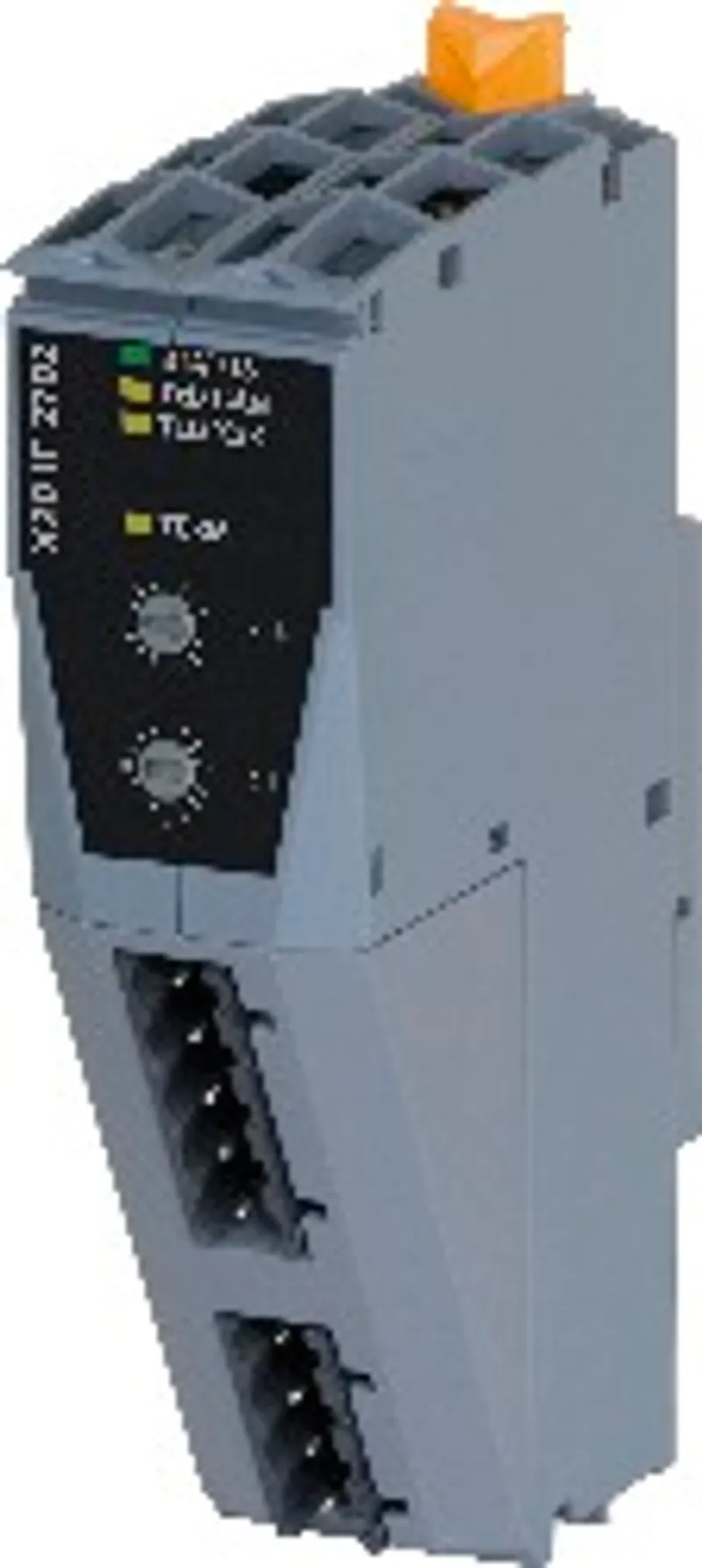

B&R X20IF2792

Communication module, 1x X2X Link master, 1x CAN bus

MPN: X20IF2792
Category: X20 interface module communication

€316.94excl. VAT & shipping

In stock — 13 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20IF2792?

X2X Link connection

CAN bus connection

Integrated terminating resistor

The interface module is used for application-specific expansion of the X20 controllers. It is equipped with an X2X Link interface and a CAN bus interface.

Specifications

Short description

Communication module

1x X2X Link master, 1x CAN bus

General information

Diagnostics – Module status	Yes, using LED status indicator
Diagnostics – Data transfer	Yes, using LED status indicator
Diagnostics – Terminating resistor	Yes, using LED status indicator
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0x1F26
Status indicators	Module status, data transfer, terminating resistor
Power consumption	1.25 W (rev. <E0: 1.51 W)
Additional power dissipation caused by actuators (resistive) [W]	-

Interfaces

Interface IF1 – Fieldbus	X2X Link master
Interface IF1 – Variant	4-pin male multipoint connector
Interface IF1 – Number of stations	Max. 253
Interface IF1 – Internal bus power supply	No
Interface IF1 – Network topology	Line
Interface IF1 – Distance between 2 stations	Max. 100 m
Interface IF1 – Bus terminating resistor	Internal
Interface IF2 – Signal	CAN bus (note: This CAN bus interface can be configured as a CANopen master in Automation Studio 3.0 and later.)
Interface IF2 – Variant	5-pin male multipoint connector
Interface IF2 – Max. distance	1000 m
Interface IF2 – Transfer rate	Max. 1 Mbit/s
Interface IF2 – Terminating resistor	Integrated in module
Interface IF2 – Controller	SJA 1000

Electrical properties

Electrical isolation

PLC isolated from X2X Link (IF1) and CAN (IF2) and interfaces isolated from each other

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block TB704 and 1x terminal block TB2105 separately.
Slot	In the X20 PLC

Accessories

Required accessories (order separately)

0TB704.91	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.
0TB704.9	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.
0TB2105.9110	Terminal blocks — The single-row 5-pin terminal block 0TB2105 is used as the connection terminal for fieldbuses among other things.
0TB2105.9010	Terminal blocks — The single-row 5-pin terminal block 0TB2105 is used as the connection terminal for fieldbuses among other things.
