X20 interface module communication Parts

B&R

X20IF10G1-1

Communication module, etherCAT master

B&R

X20IF10X0

Communication module, controller redundancy link module

B&R

X20IF2181-2

Communication module, 1x POWERLINK managing or controlled…

B&R

X20IF1020

Communication module, 1x RS232

B&R

X20IF1030

Communication module, 1x RS485/RS422

B&R

X20IF1041-1

Communication module, CANopen master

B&R

X20IF1043-1

Communication module, CANopen slave

B&R

X20IF1051-1

Communication module, deviceNet scanner (master)

B&R

X20IF1053-1

Communication module, deviceNet adapter (slave)

B&R

X20IF1061-1

Communication module, 1x PROFIBUS DP V0/V1 master

B&R

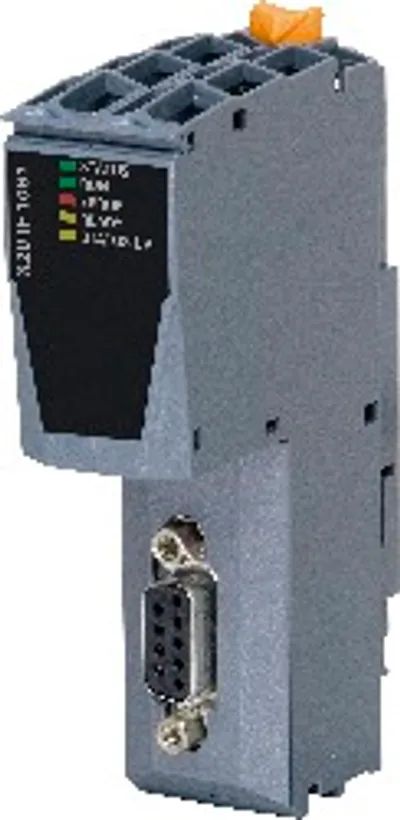

X20IF1061

Communication module, PROFIBUS DP V0/V1 master

B&R

X20IF1063-1

Communication module, 1x PROFIBUS DP V0/V1 slave

B&R

X20IF1063

Communication module, 1x PROFIBUS DP V0 slave

B&R

X20IF1065

Communication module, 1x PROFIBUS DP V0/V1 slave

B&R

X20IF1072

Communication module, 1x CAN bus

B&R

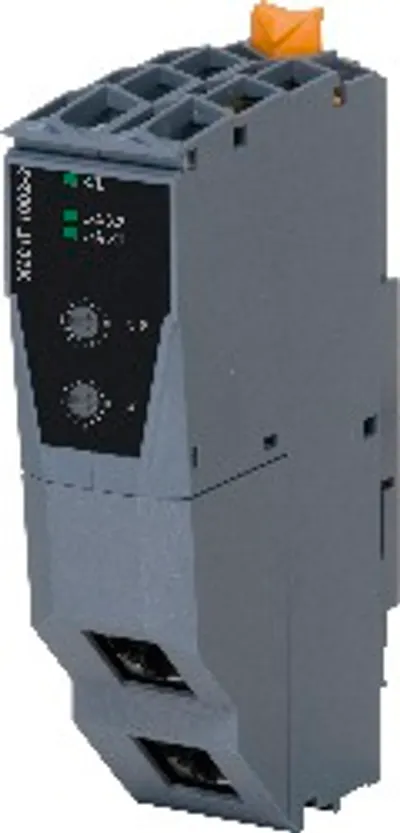

X20IF1082-2

Communication module, 1x POWERLINK (V1/V2) managing or…

B&R

X20IF1082

Communication module, 1x POWERLINK (V1/V2) managing or…

B&R

X20IF1086-2

Communication module, 1x POWERLINK (V1/V2) managing or…

B&R

X20IF1091

Communication module, 1x X2X Link master

B&R

X20IF10A1-1

Communication module, ASi interface master

B&R

X20IF10D1-1

Communication module, etherNet/IP scanner (master)

B&R

X20IF10D3-1

Communication module, etherNet/IP Adapter (slave)

B&R

X20IF10E1-1

Communication module, PROFINET IO controller (master)

B&R

X20IF10E3-1

Communication module, PROFINET IO device (slave)

Compare X20 interface module communication

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Power consumption	Temperature – Horizontal mounting orientation	Temperature – Vertical mounting orientation	Temperature – Derating	Temperature – Storage
X20IF10G1-1	2 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF10X0	1.93 W	-25 to 60°C	-25 to 50°C	See section "Derating".	-40 to 85°C
X20IF2181-2	2 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF1020	0.35 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF1030	0.42 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF1041-1	1.1 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF1043-1	1.1 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF1051-1	1.1 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF1053-1	1.1 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF1061-1	1.8 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF1061	1.4 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF1063-1	1.8 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF1063	0.87 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF1065	1.4 W	0 to 55°C	0 to 50°C	-	-25 to 70°C
X20IF1072	0.79 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF1082-2	2 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF1082	2 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF1086-2	1.8 W (rev. <D0: 2 W)	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF1091	0.97 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF10A1-1	—	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF10D1-1	2 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF10D3-1	2 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF10E1-1	2 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C
X20IF10E3-1	2 W	-25 to 60°C	-25 to 50°C	-	-40 to 85°C

Common to all listed parts

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Additional power dissipation caused by actuators (resistive) [W]	-
Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
