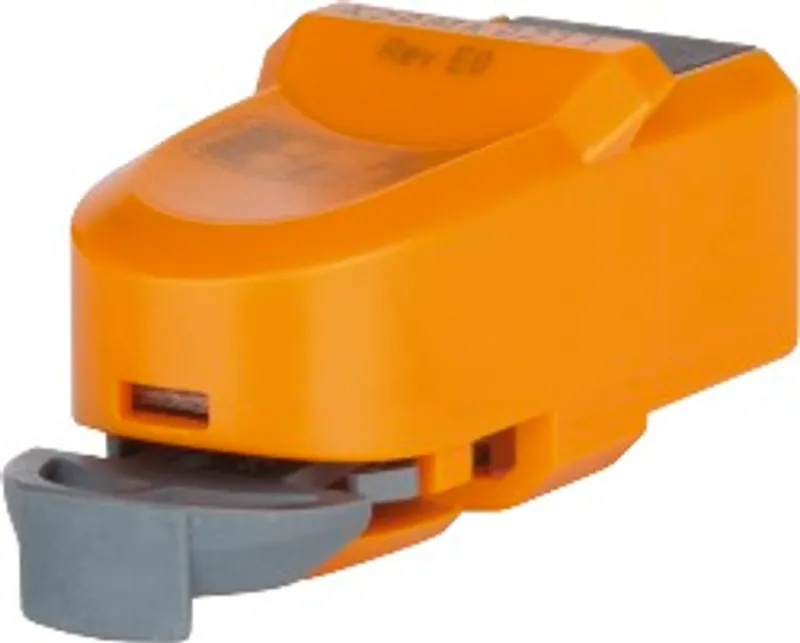

B&R X20MK0211

X20 SafeKEY, 2 MB, for the X20SL81xx series

MPN: X20MK0211

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20MK0211?

X20 SafeKEY, 2 MB, for the X20SL81xx series, can order license range of functions via the X20MK configurator

Specifications

General information

Application memory – Guaranteed erase/write cycles	100,000
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E115267; Industrial control equipment; cULus E537419; Engine generator controller
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Memory size	2 MB

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	0 to 60°C
Temperature – Vertical mounting orientation	0 to 60°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Safety Technology GuardingPDF · 276 KB · 1.141 (05/03/2019) - EN

CAD & dimension drawings

3D STEP file X20MK02xxSTP · 970 KB · 1.00 (11/21/2022)

Certificates (8)
