B&R X20IF1072

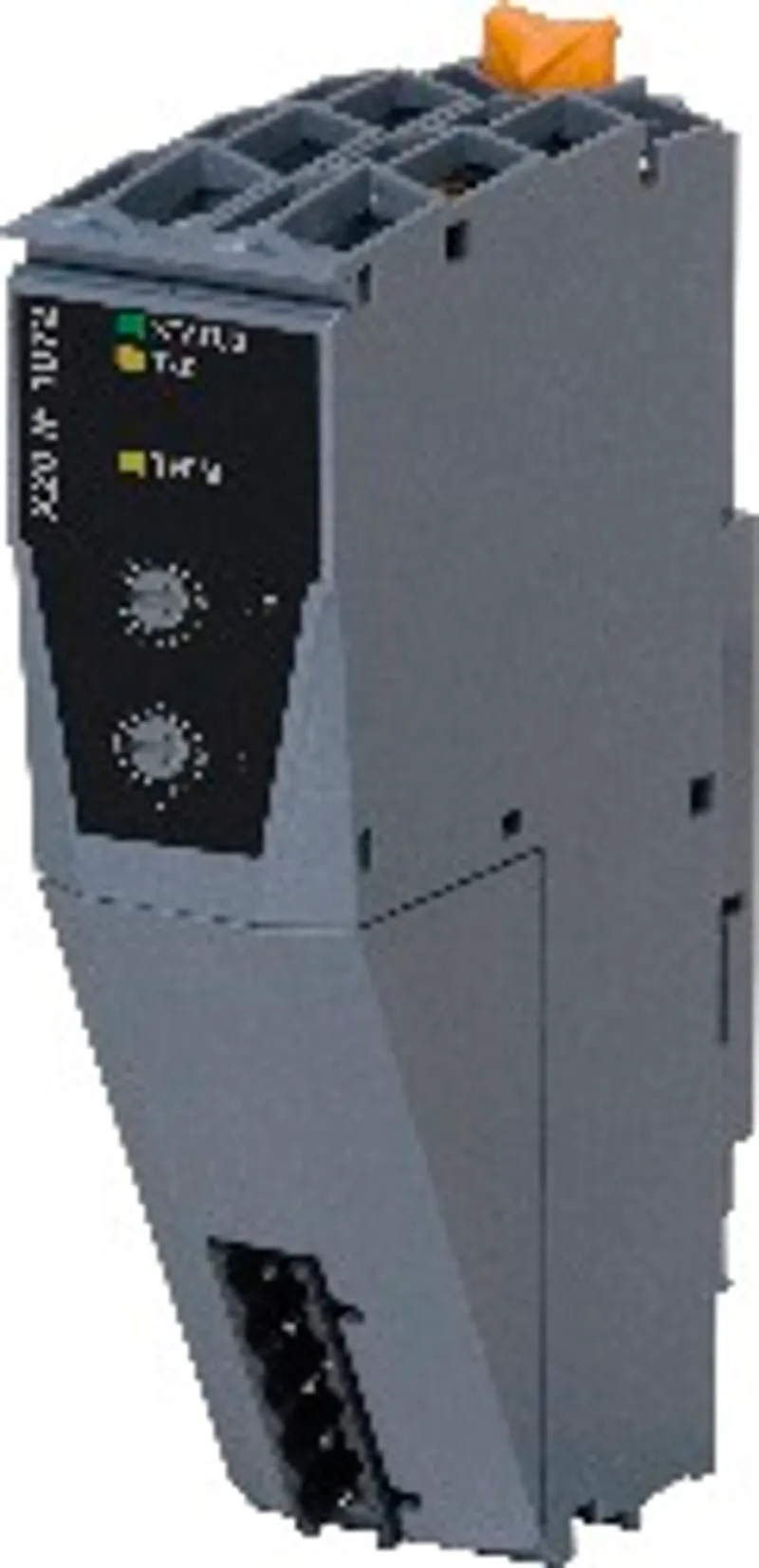

Communication module, 1x CAN bus

MPN: X20IF1072
Category: X20 interface module communication

€397.50excl. VAT & shipping

In stock — 6 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20IF1072?

CAN bus connection

Integrated terminating resistor

The interface module is used for application-specific expansion of the X20 controllers. It is equipped with a CAN bus interface.

Specifications

Short description

Communication module

1x CAN bus

General information

Diagnostics – Module status	Yes, using LED status indicator
Diagnostics – Data transfer	Yes, using LED status indicator
Diagnostics – Terminating resistor	Yes, using LED status indicator
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0x1F20
Status indicators	Module status, data transfer, terminating resistor
Power consumption	0.79 W
Additional power dissipation caused by actuators (resistive) [W]	-

Interfaces

Interface IF1 – Signal	CAN bus (note: This CAN bus interface can be configured as a CANopen master in Automation Studio 3.0 and later.)
Interface IF1 – Variant	5-pin male multipoint connector
Interface IF1 – Max. distance	1000 m
Interface IF1 – Transfer rate	Max. 1 Mbit/s
Interface IF1 – Terminating resistor	Integrated in module
Interface IF1 – Controller	SJA 1000

Electrical properties

Electrical isolation

PLC isolated from CAN (IF1)

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block TB2105 separately.
Slot	In the X20 PLC

Accessories

Required accessories (order separately)

0TB2105.9110	Terminal blocks — The single-row 5-pin terminal block 0TB2105 is used as the connection terminal for fieldbuses among other things.
0TB2105.9010	Terminal blocks — The single-row 5-pin terminal block 0TB2105 is used as the connection terminal for fieldbuses among other things.

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (15)

X20IF1072: frequently asked questions

When can X20IF1072 be shipped?

X20IF1072 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20IF1072 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20IF1072 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20IF1072, subject to availability and destination.
