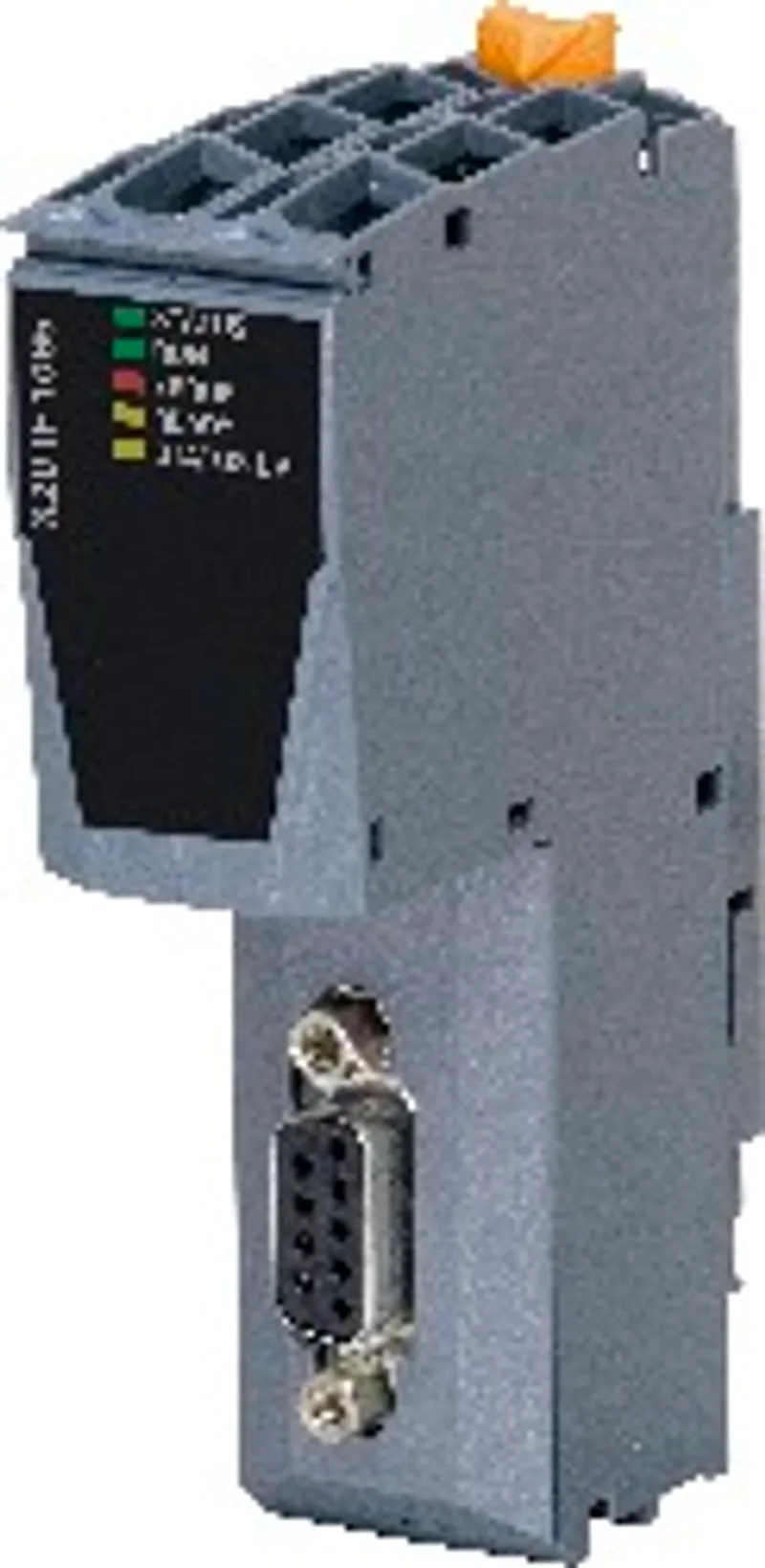

B&R X20IF1065

Communication module, 1x PROFIBUS DP V0/V1 slave

MPN: X20IF1065
Category: X20 interface module communication

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20IF1065?

PROFIBUS DP V1 slave connection

The interface module can be used to expand the X20 CPU for specific applications. It is equipped with a PROFIBUS DP V1 slave interface.

Specifications

Short description

Communication module

1x PROFIBUS DP V0/V1 slave

General information

Diagnostics – Module status	Yes, using LED status indicator and software
Diagnostics – Bus status	Yes, using LED status indicator and software
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0xA4C6
Status indicators	Module status, bus status
Power consumption	1.4 W
Additional power dissipation caused by actuators (resistive) [W]	-

Interfaces

Interface IF1 – Fieldbus	PROFIBUS DP V0/V1 slave
Interface IF1 – Variant	9-pin female DSUB connector
Interface IF1 – Max. distance	1200 m
Interface IF1 – Transfer rate	Max. 12 Mbit/s
Interface IF1 – Terminating resistor	External using T-connector (0G1000.00-090)
Interface IF1 – Controller	EC1
Interface IF1 – Memory	8 kB SDRAM

Electrical properties

Electrical isolation

PLC isolated from PROFIBUS (IF1)

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	0 to 55°C
Temperature – Vertical mounting orientation	0 to 50°C
Temperature – Derating	-
Temperature – Storage	-25 to 70°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Slot	In the X20 PLC

Accessories

Optional accessories (1)

0G1000.00-090

Infrastructure components — The RS485 bus connector is used to connect a controller to a Profibus network or an RS485 network. The terminating resistor is integrated i…
