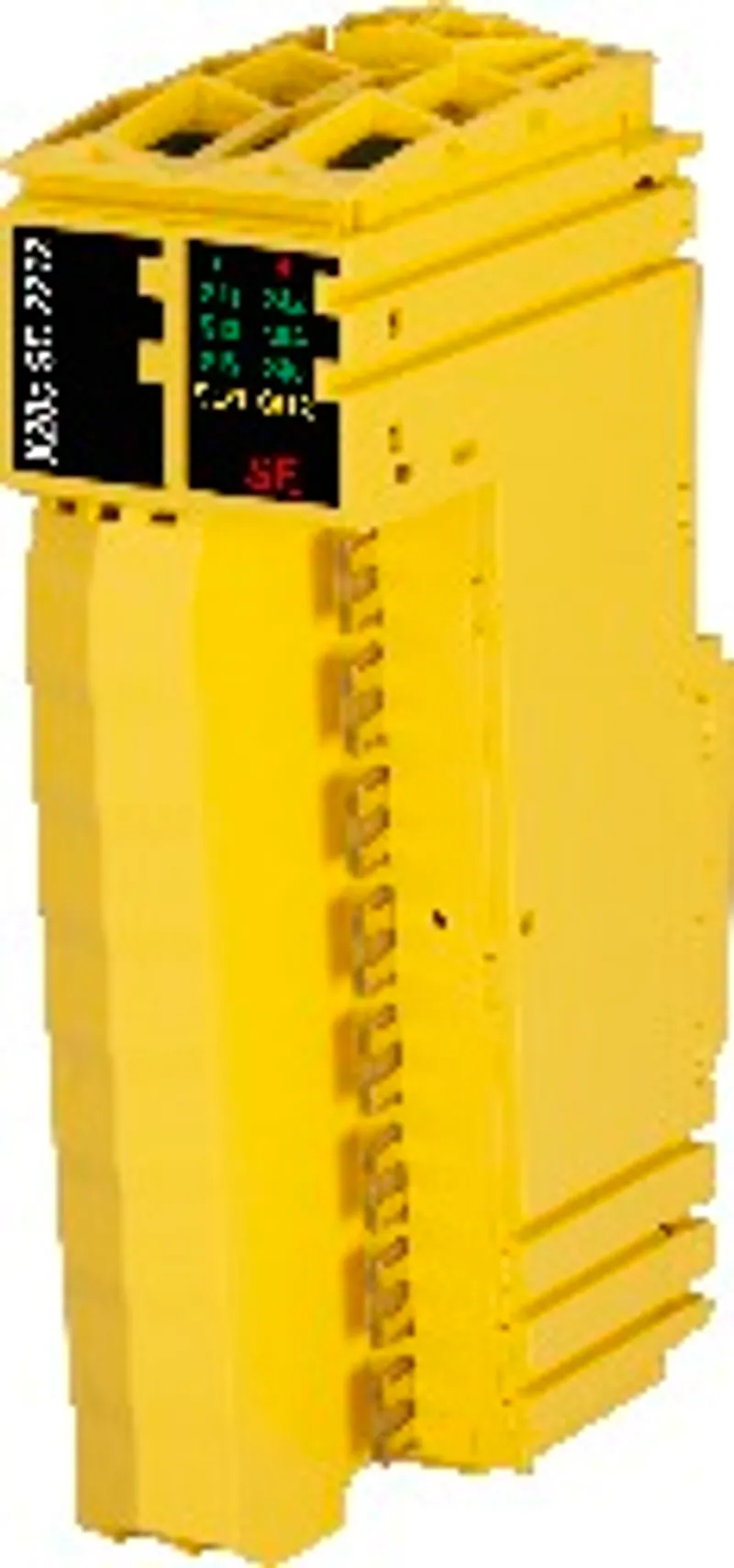

B&R X20cSC2212

Q: When can X20cSC2212 be shipped?

X20cSC2212 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up X20cSC2212 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for X20cSC2212 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20cSC2212, subject to availability and destination.

I/O module, 6 safe type A digital inputs, 6 pulse outputs

MPN: X20cSC2212
Category: Digital mixed modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20cSC2212?

6 safe digital inputs, sink circuit

6 pulse outputs

Software input filter configurable for each channel

2 safe digital outputs, output type B with 0.5 A, source circuit

Integrated output protection

The module is equipped with 6 safe digital inputs and 2 safe digital outputs. It is designed for a nominal voltage of 24 VDC.

The module can be used to read in digital signals and to control actuators in safety-related applications up to PL e or SIL 3.

The module is equipped with filters that are individually configurable for switch-on and switch-off behavior. The module also provides pulse signals for diagnosing the sensor line.

The outputs are designed using semiconductor technology so that the safety-related characteristics do not depend on the number of operating cycles. The "high-side high-side" variant (output type B) is required for actuators with reference potential (e.g. Enable inputs on frequency inverters). It is important to observe the special notices for the cabling in this case. Safe digital output channels provide protection against automatic restart when network errors occur.

This module is designed for X20 12-pin terminal blocks.

Specifications

Short description

I/O module

6 safe type A digital inputs, 6 pulse outputs, 24 VDC, 2 safe type B1 digital outputs, 24 VDC, 0.5 A, OSSD <500 µs

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Outputs	Yes, using LED status indicator and software
Diagnostics – Inputs	Yes, using LED status indicator and software
Blackout mode – Scope	Module
Blackout mode – Function	Module functionality
Blackout mode – Standalone mode	No
Power consumption – Bus	0.25 W
Power consumption – Internal I/O	1.4 W
Additional power dissipation caused by actuators (resistive) [W]Mechanical and electrical configuration" in the X20 system user's manual."> – Safe digital outputs	0.075 (note: Number of outputs x R DS(on) x Nominal output current 2 . This value also applies to sensors that are supplied via these outputs. For a calculation example, see section)
Additional power dissipation caused by actuators (resistive) [W]Mechanical and electrical configuration" in the X20 system user's manual."> – Pulse outputs	0.264 (note: Number of outputs x R DS(on) x Nominal output current 2 . This value also applies to sensors that are supplied via these outputs. For a calculation example, see section)
Electrical isolation – Channel - Bus	Yes
Electrical isolation – Channel - Channel	No
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – Functional safety	cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013
Certifications – Functional safety	IEC 61508:2010, SIL 3; EN 62061:2005/A2:2015, SIL 3; EN ISO 13849-1:2015, Cat. 4 / PL e; IEC 61511:2004, SIL 3
Certifications – Functional safety	EN 50156-1:2004
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC21B ; Temperature: 5 - 45°C; Vibration: 0.7 g; EMC: Bridge and open deck
B&R ID code	0xDD9D
Status indicators	I/O function per channel, operating state, module status

Safety characteristics

Note	See section "Safety characteristics".

I/O power supply

Nominal voltage	24 VDC
Voltage range	24 VDC -15% / +20%
Integrated protective function	Reverse polarity protection

Safe digital inputs

Input filter – Hardware	≤150 μs
Input filter – Software	Configurable between 0 and 500 ms
Switching threshold – Low	<5 VDC
Switching threshold – High	>15 VDC
Quantity	6
Variant	Type A
Nominal voltage	24 VDC
Input characteristics per EN 61131-2	Type 1
Input circuit	Sink
Input voltage	24 VDC -15% / +20%
Input current at 24 VDC	Min. 2 mA to max. 3.28 mA (note: The input current specifications refer to the switched-on state of the input.)
Input resistance	Min. 7.33 kΩ
Error detection time	100 ms
Insulation voltage between channel and bus	500 V eff
Line length between signal source (pulse output or external signal) and input	Max. 60 m with unshielded line; Max. 400 m with shielded line

Safe digital outputs

Quantity	2
Variant	FET, 2x positive switching, type B1, output level readable
Nominal voltage	24 VDC
Nominal output current	0.5 A
Total nominal current	1 A
Output protection	See section "Inrush current behavior for output channels".
Braking voltage when switching off inductive loads	Max. 45 VDC
Error detection time	1 s
Insulation voltage between channel and bus	500 V eff
Peak short-circuit current	See section "Inrush current behavior for output channels".
Leakage current when the output is switched off	<500 µA
R DS(on)	150 mΩ
Switching voltage	I/O power supply minus voltage drop due to R DS(on)
Max. switching frequency	See section "Inrush current behavior for output channels".
Test pulse length	Max. 500 µs
Max. capacitive load	100 nF

Current on loss of ground

I OUT	<1 mA
I GND	<180 mA

Pulse outputs

Quantity	6
Variant	Push-Pull
Nominal output current	20 mA
Output protection	Shutdown of individual channels in the event of overload or short circuit (note: The protective function is provided for max. 30 minutes for a continuous short circuit.)
Peak short-circuit current	25 A for 15 µs
Short-circuit current	100 mA eff
Leakage current when the output is switched off	0.1 mA
R DS(on)	110 Ω
Switching voltage	I/O power supply minus voltage drop due to R DS(on)
Total nominal current	120 mA

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Starting temperature	Yes, -40°C
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	Up to 100%, condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x safety-keyed terminal block separately.; Order 1x safety-keyed bus module separately.
Pitch	25 +0.2 mm

Accessories

Required accessories (order separately)

X20cBM33	Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous. The bus module is the base for all SafeIO modules. The internal…
X20TB5F	Terminal blocks — Tool-free wiring using push-in technology; Simple wire release using a screwdriver; Labeling option for each terminal connection; Plain tex…
