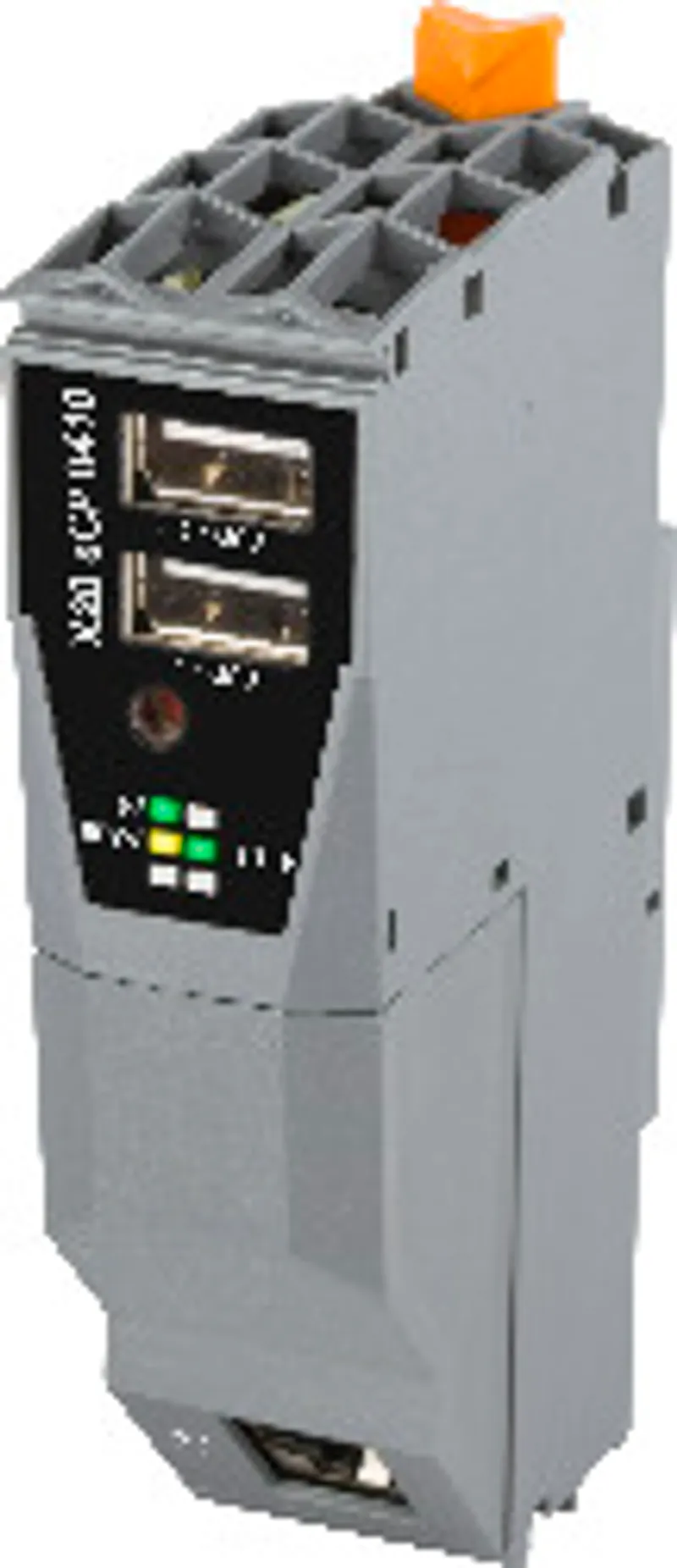

B&R X20cCP0410
Interfaces, 1x Ethernet, 2x USB, 1x X2X Link
- MPN
- X20cCP0410
- Category
- Compact-S PLC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R X20cCP0410?
ARM Cortex-A9 processor with 166 MHz (compatible) and integrated I/O processor
Onboard Ethernet
2x onboard USB
128 MB DDR3 SDRAM
256 MB onboard flash drive
Fanless
No battery
Extremely compact
Specifications
Short description
| Interfaces | 1x Ethernet, 2x USB, 1x X2X Link |
| System module | Controller |
General information
| Diagnostics – CPU function | Yes, using LED status indicator |
| Diagnostics – Ethernet | Yes, using LED status indicator |
| Diagnostics – Temperature | Yes, using software register |
| Support – Controller redundancy | No |
| Support – Storage health data support | Yes |
| Support – ACOPOS support | Yes |
| Support – Visual Components support | Yes |
| Support – Multicore support | No |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| B&R ID code | 0xFC36 |
| Cooling | Fanless |
| Status indicators | CPU function, Ethernet |
| Power consumption | 2.2 W (note: Without USB interface.) |
| Additional power dissipation caused by actuators (resistive) [W] | - |
Controller
| Processor – Data code | 32 kB |
| Processor – Program code | 32 kB |
| Processor – Type | ARM Cortex-A9 |
| Processor – Clock frequency | 166 MHz (compatible) |
| Processor – L2 cache | 512 kB |
| Standard memory – RAM | 128 MB DDR3 SDRAM |
| Application memory – Guaranteed | 40 TB |
| Application memory – Results for 5 years | 21.9 GB/day |
| Application memory – Type | 256 MB eMMC flash memory |
| Application memory – Data retention | 10 years |
| Application memory – Guaranteed erase/write cycles | 20,000 |
| Application memory – Error-correcting code (ECC) | Yes |
| Real-time clock | Retention for at least 300 hours, typ. 1000 hours at 25°C, 1 s resolution, -18 to 28 ppm accuracy at 25°C |
| Floating point unit (FPU) | Yes |
| Integrated I/O processor | Processes I/O data points in the background |
| Remanent variables | 8 kB FRAM, retention >10 years (note: The memory size for remanent variables is configurable in Automation Studio.) |
| Shortest task class cycle time | 4 ms |
| Typical instruction cycle time | 0.0446 µs |
Interfaces
| Interface IF2 – Physical layer | 10BASE-T/100BASE-TX |
| Interface IF2 – Half-duplex | Yes |
| Interface IF2 – Full-duplex | Yes |
| Interface IF2 – Autonegotiation | Yes |
| Interface IF2 – Auto-MDI/MDIX | Yes |
| Interface IF2 – Signal | Ethernet |
| Interface IF2 – Variant | 1x RJ45 shielded |
| Interface IF2 – Line length | Max. 100 m between 2 stations (segment length) |
| Interface IF2 – Transfer rate | 10/100 Mbit/s |
| Interface IF4 – Type | USB 1.1/2.0 |
| Interface IF4 – Variant | Type A |
| Interface IF4 – Max. output current | 0.2 A |
| Interface IF5 – Type | USB 1.1/2.0 |
| Interface IF5 – Variant | Type A |
| Interface IF5 – Max. output current | 0.2 A |
| Interface IF6 – Fieldbus | X2X Link master |
| On base module | X20BB52: Compact-S PLC base module with integrated RS232 interface; X20BB53: Compact-S PLC base module with integrated RS485 interface; X20BB57: Compact-S PLC base module with integrated RS232 and CAN bus interface |
Electrical properties
| Electrical isolation | Ethernet (IF2) isolated from other interfaces and PLC; X2X (IF6) isolated from other interfaces and PLC: Yes, with X20PS9600 / No, with X20PS9602; USB (IF4, IF5) not isolated from each other and PLC |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | See section "Derating" in the X20PS960x data sheet. |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | Up to 100%, condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Pitch – X20BB5x | 37.5 +0.2 mm (note: The pitch refers to the width of the Compact-S PLC base.) |
| Note | Order 1x terminal block X20TB12 separately.; Order 1x power supply module X20cPS9600 separately.; Order 1x Compact-S PLC base X20cBB5x separately. |
Accessories
Required accessories (order separately)
| X20cPS9600 | System modules for Compact-S PLC — Supply for Compact-S CPU, X2X Link and internal I/O power supply; Galvanic isolation of supply and CPU / X2X Link power supply; Redundancy… |
| X20cBB57 | System modules for Compact-S PLC — Base for all X20 Compact-S CPUs; RS232 connection; CAN bus connection; Integrated terminating resistor for CAN bus |
| X20cBB52 | System modules for Compact-S PLC — Base for all X20 Compact-S CPUsRS232 connection The bus module is the base for all X20 Compact-S controllers. The left and right end cover… |
| X20TB12 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (8)
- 2226379 CSA Certificate of Compliance X20 X67
- ABS Certificate of Product Design Assessment - X20 IO Series
- EU Data Act - X20 PLC - Connected Product Information Notice
- EU Declaration ATEX X20
- EU Declaration of conformity PLC X20
- KR Type Approval Certificate MIL39390-AC003 (X20 System)
- Lloyds Register (X20 only)
- UK Declaration PLC X20
