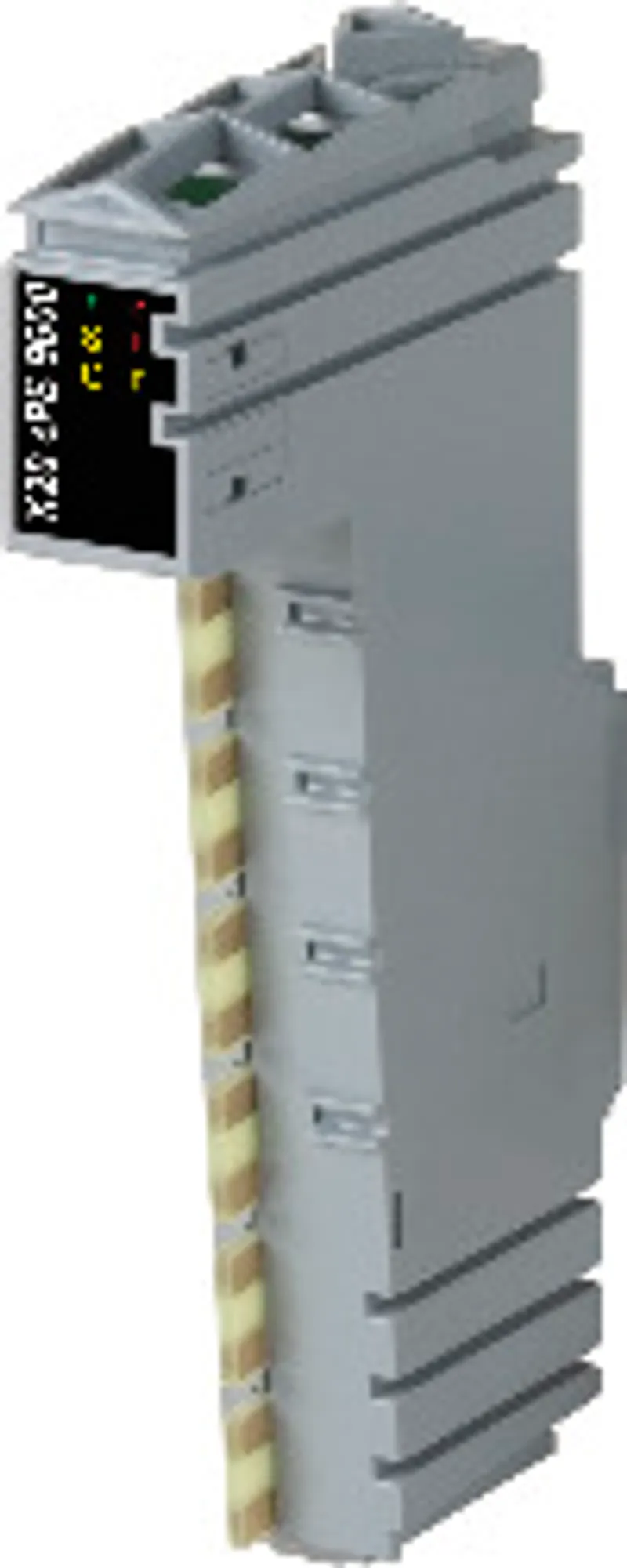

B&R X20cPS9600

Power supply module, 24 VDC power supply module for…

MPN: X20cPS9600
Category: System modules for Compact-S PLC

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20cPS9600?

Supply for Compact-S CPU, X2X Link and internal I/O power supply

Galvanic isolation of supply and CPU / X2X Link power supply

Redundancy of the CPU / X2X Link power supply possible through parallel operation of multiple power supply modules

RS232 configurable as an online interface

CAN bus

Specifications

Short description

Power supply module	24 VDC power supply module for Compact-S CPU, X2X Link power supply and I/O
Interfaces	1x RS232, 1x CAN bus (note: CAN bus only when used with bus module X20BB57, X20BB67 or X20BB77.)

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – CAN bus data transfer	Yes, using LED status indicator (note: CAN bus only when used with bus module X20BB57, X20BB67 or X20BB77.)
Diagnostics – RS232 data transfer	Yes, using LED status indicator
Diagnostics – Overload	Yes, using LED status indicator and software
Power consumptionMechanical and electrical configuration" in the X20 system user's manual."> – Internal I/O	0.6 W (note: The specified values are maximum values. For examples of the exact calculation, see section)
Certifications – CE	Yes
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
B&R ID code	0xFC38
Status indicators	Overload, operating state, module status, RS232, CAN bus (note: CAN bus only when used with bus module X20BB57, X20BB67 or X20BB77.)
Power consumption for X2X Link power supplyMechanical and electrical configuration" in the X20 system user's manual.">	1.42 W (note: The specified values are maximum values. For examples of the exact calculation, see section)
Additional power dissipation caused by actuators (resistive) [W]	-

CPU / X2X Link power supply input

Input voltage	24 VDC -15% / +20%
Input current	Max. 0.7 A
Fuse	Integrated, cannot be replaced
Reverse polarity protection	Yes

CPU / X2X Link power supply output

Nominal output power	7 W
Parallel connection	Yes (note: In parallel operation, it is only permitted to expect 75% of the nominal power. It is important to make sure that all power supply units operated in parallel are switched on and off at the same time.)
Redundant operation	Yes
Overload characteristics	Short-circuit proof, temporary overload

Input I/O power supply

Input voltage	24 VDC -15% / +20%
Fuse	Required line fuse: Max. 10 A, slow-blow
Reverse polarity protection	No

Output I/O power supply

Nominal output voltage	24 VDC
Behavior on short circuit	Required line fuse
Permissible contact load	10 A

Interfaces

Interface IF1 – Signal	RS232
Interface IF1 – Variant	Connection made using 12-pin terminal block X20TB12
Interface IF1 – Transfer rate	Max. 115.2 kbit/s
Interface IF3 – Signal	CAN bus (note: CAN bus only when used with bus module X20BB57, X20BB67 or X20BB77.)
Interface IF3 – Variant	Connection made using 12-pin terminal block X20TB12 (note: CAN bus only when used with bus module X20BB57, X20BB67 or X20BB77.)
Interface IF3 – Transfer rate	Max. 1 Mbit/s (note: CAN bus only when used with bus module X20BB57, X20BB67 or X20BB77.)

Electrical properties

Electrical isolation

CPU/X2X Link supply isolated from CPU/X2X Link power supply ; I/O supply not isolated from I/O power supply

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	Up to 100%, condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately.; Order 1x Compact-S CPU base X20cBB5x separately.
Pitch	12.5 +0.2 mm

Accessories

Required accessories (order separately)

X20cBB57	System modules for Compact-S PLC — Base for all X20 Compact-S CPUs; RS232 connection; CAN bus connection; Integrated terminating resistor for CAN bus
X20cBB52	System modules for Compact-S PLC — Base for all X20 Compact-S CPUsRS232 connection The bus module is the base for all X20 Compact-S controllers. The left and right end cover…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
