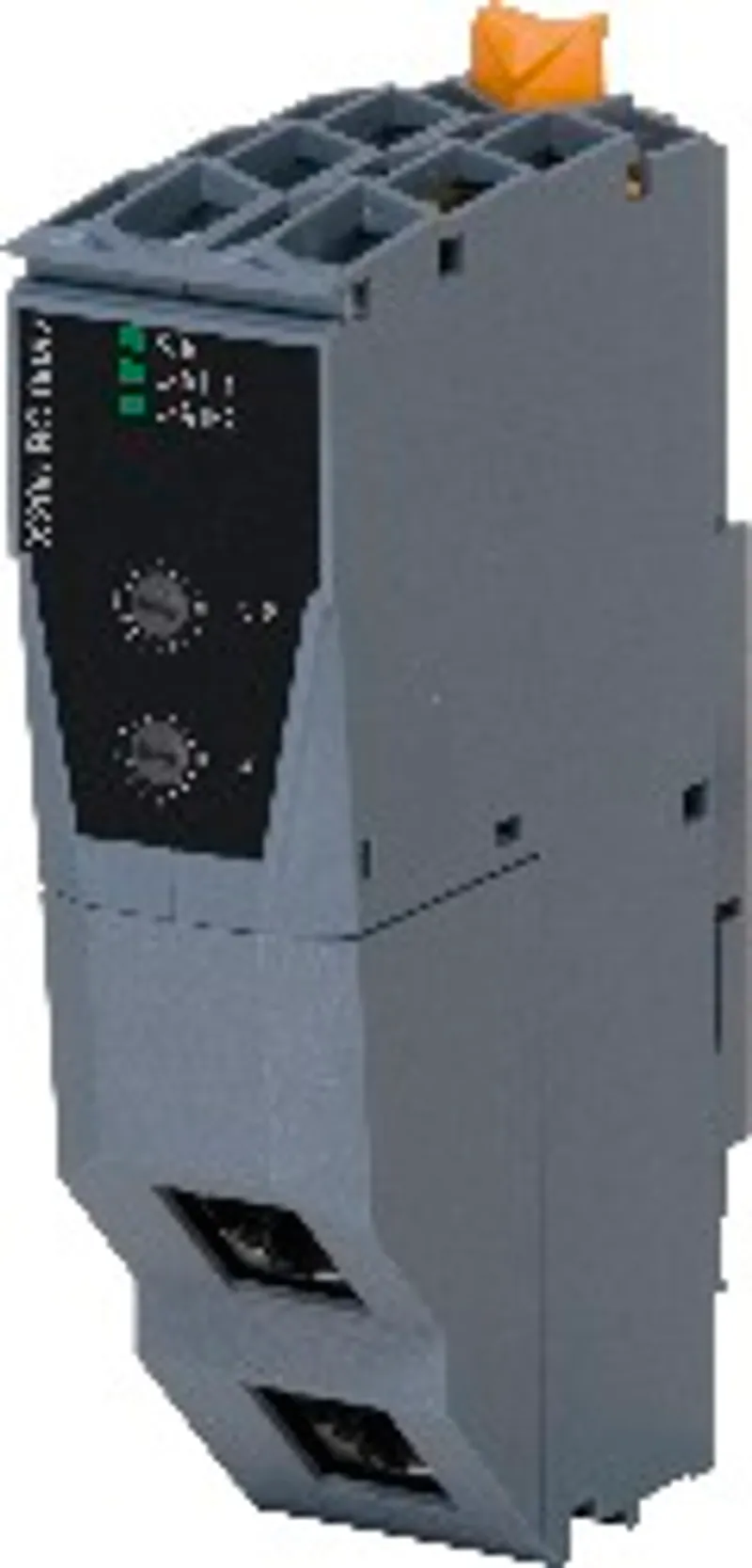

B&R X20cBC0087

Bus controller, modbus TCP/UDP slave

MPN: X20cBC0087
Category: Bus controllers

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20cBC0087?

Fieldbus: Modbus/TCP, Modbus/UDP

I/O configuration via the fieldbus

DHCP-capable

Bootp-capable

Integrated double switch for efficient cabling

Configurable I/O cycle (0.5 to 4 ms)

Response time: <1 - 8 ms (depending on the load on the integrated switch)

Validity check for command sequences before execution

Specifications

Short description

Bus controller

Modbus TCP/UDP slave

General information

Diagnostics – Module status	Yes, using LED status indicator and software
Diagnostics – Bus function	Yes, using LED status indicator and software
Power consumption – Bus	2 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Evaluation ongoing
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
B&R ID code	0xD577
Status indicators	Module status, bus function
Additional power dissipation caused by actuators (resistive) [W]	-

Interfaces

Transfer – Physical layer	10BASE-T/100BASE-TX
Transfer – Half-duplex	Yes
Transfer – Full-duplex	Yes
Transfer – Autonegotiation	Yes
Transfer – Auto-MDI/MDIX	Yes
Min. cycle time – Fieldbus	1 ms (note: The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring.)
Min. cycle time – X2X Link	500 μs (note: The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring.)
Fieldbus	Modbus TCP/UDP slave
Variant	2x shielded RJ45 (switch)
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	10/100 Mbit/s
Synchronization between bus systems possible	No

Electrical properties

Electrical isolation

Modbus isolated from bus and I/O

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Starting temperature	Yes, -40°C
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	Up to 100%, condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately. ; Order 1x power supply module X20cPS9400 separately. ; Order 1x bus base X20cBB80 separately.
Pitch	37.5 +0.2 mm (note: Pitch is based on the width of bus base X20BB80. In addition, power supply module X20PS9400 or X20PS9402 is always required for the bus controller.)

Accessories

Required accessories (order separately)

X20cPS9400	System modules for bus controllers — Supply for the bus controller, X2X Link and internal I/O supply; Feed and bus controller / X2X Link supply electrically isolated; Redundanc…
X20cBB80	System modules for bus controllers — Bus base The following modules are used on the bus module:Base module (BC, HB, etc.)Supply moduleThe left and right end cover plates are in…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
