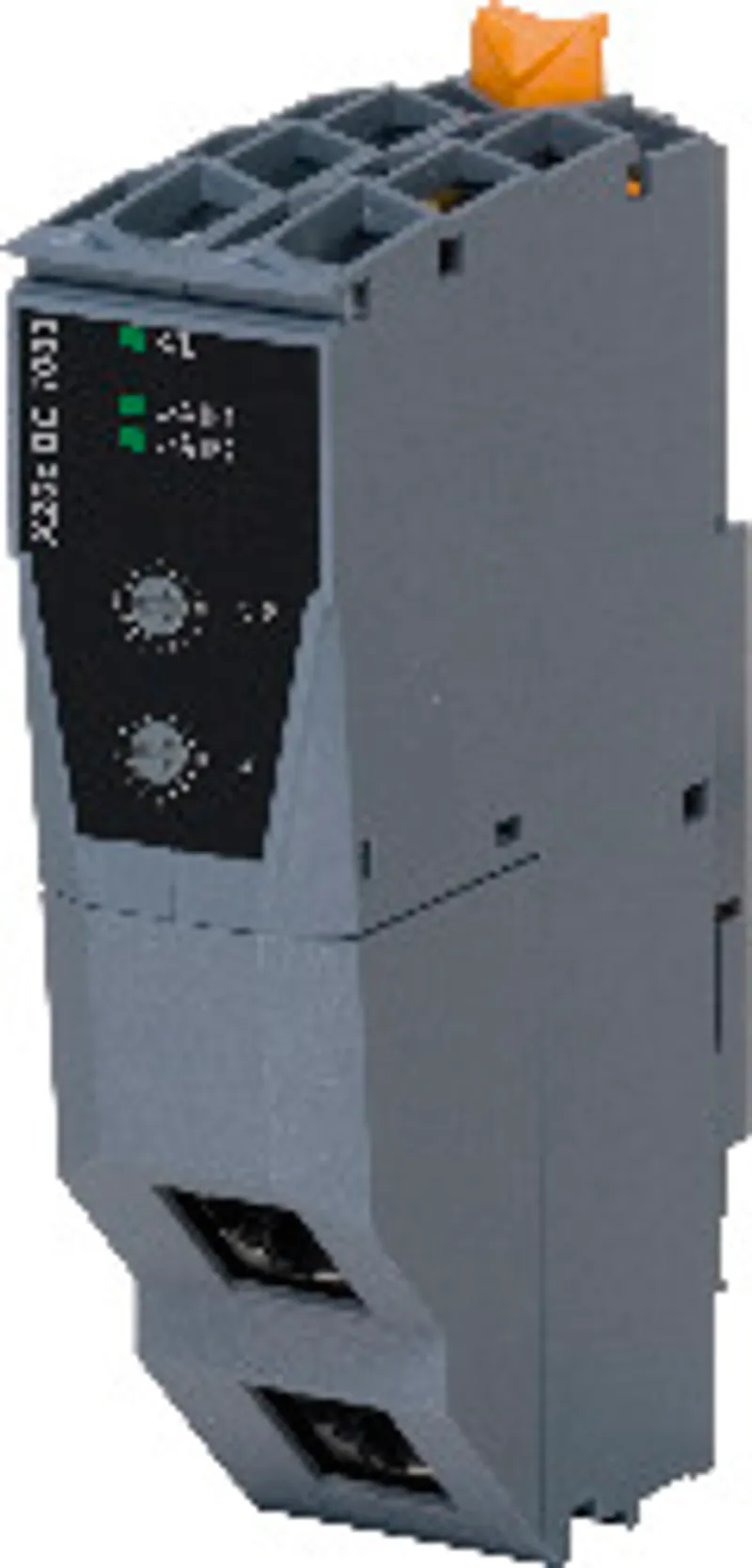

B&R X20cBC1083
Bus controller, POWERLINK (V1/V2) controlled node with up…
- MPN
- X20cBC1083
- Category
- Expandable bus controllers
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R X20cBC1083?
POWERLINK
I/O configuration and firmware update via the fieldbus
Integrated hub for efficient cabling
Up to 2 slots for interface modules
Specifications
Short description
| Bus controller | POWERLINK (V1/V2) controlled node with up to 2 slots for interface modules |
General information
| Diagnostics – Module status | Yes, using LED status indicator and software |
| Diagnostics – Bus function | Yes, using LED status indicator and software |
| Support – Dynamic node allocation (DNA) | Yes |
| Power consumption – Bus | 2 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| B&R ID code | 0xE217 |
| Status indicators | Module status, bus function |
| Additional power dissipation caused by actuators (resistive) [W] | - |
Interfaces
| Transfer – Physical layer | 100BASE-TX |
| Transfer – Half-duplex | Yes |
| Transfer – Full-duplex | No |
| Transfer – Autonegotiation | Yes |
| Transfer – Auto-MDI/MDIX | Yes |
| Min. cycle time – Fieldbus | 200 μs |
| Min. cycle time – X2X Link | 200 μs |
| Cyclic data – Input data | Max. 1488 bytes |
| Cyclic data – Output data | Max. 1488 bytes |
| Fieldbus | POWERLINK (V1/V2) controlled node |
| Type | Type 2Communication / POWERLINK / General information / Hardware - CN" in Automation Help."> (note: For additional information, see section) |
| Variant | 2x shielded RJ45 (hub) |
| Line length | Max. 100 m between 2 stations (segment length) |
| Transfer rate | 100 Mbit/s |
| Hub propagation delay | 0.96 to 1 µs |
| Synchronization between bus systems possible | Yes |
Electrical properties
| Electrical isolation | POWERLINK isolated from bus and I/O |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | - |
| Temperature – Starting temperature | Yes, -40°C |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | Up to 100%, condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Pitch – X20BB81 | 62.5 +0.2 mm (note: Pitch is based on the width of bus base X20cBB81 or X20cBB82. Up to two interface modules and one X20cPS9400 power supply module are also always required for the bus controller.) |
| Pitch – X20BB82 | 87.5 +0.2 mm (note: Pitch is based on the width of bus base X20cBB81 or X20cBB82. Up to two interface modules and one X20cPS9400 power supply module are also always required for the bus controller.) |
| Note | Order 1x terminal block X20TB12 separately. ; Order 1x power supply module X20cPS9400 separately. ; Order 1x bus base X20cBB81 or X20cBB82 separately |
Accessories
Required accessories (order separately)
| X20cPS9400 | System modules for bus controllers — Supply for the bus controller, X2X Link and internal I/O supply; Feed and bus controller / X2X Link supply electrically isolated; Redundanc… |
| X20cBB82 | System modules for expandable bus controllers — Bus base with 2 expansion slots The bus module has 2 expansion slots. The following modules are used on this module:Base module (BC, HB, et… |
| X20cBB81 | System modules for expandable bus controllers — Bus base with one expansion slot The bus module has an expansion slot. The following modules are used on this module:Base module (BC, HB, e… |
| X20TB12 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
Optional accessories (5)
| X20cIF10E3-1 | X20 interface module communication — PROFINET IO deviceIntegrated switch for efficient cabling The interface module is equipped with a PROFINET IO device interface. This allows… |
| X20cIF10D3-1 | X20 interface module communication — EtherNet/IP adapter (slave)Integrated switch for efficient cabling The interface module is equipped with an EtherNet/IP adapter interface.… |
| X20cIF1063-1 | X20 interface module communication — PROFIBUS DP V1 slave The interface module is equipped with a PROFIBUS DP V1 interface. This allows the B&R system (I/O modules, POWERLINK,… |
| X20cIF1061-1 | X20 interface module communication — PROFIBUS DP V1 master The interface module is equipped with a PROFIBUS DP V1 interface. This allows third-party components to be integrated… |
| X20cIF1041-1 | X20 interface module communication — CANopen masterIntegrated terminating resistor The interface module is equipped with a CANopen interface. This allows third-party components… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (12)
- 2226379 CSA Certificate of Compliance X20 X67
- ABS Certificate of Product Design Assessment - X20 IO Series
- E115267 UL Certificate of Compliance X20
- EU Data Act - X20 IO - Connected Product Information Notice
- EU Declaration ATEX X20
- EU Declaration of conformity PLC X20
- FTZU 09 ATEX 0083X
- KR Type Approval Certificate MIL39390-AC003 (X20 System)
- Lloyds Register (X20 only)
- RINA Type Approval Certificate - X20 / Power Panel T30
- TAA00000BJ DNV Type Approval Certificate X20
- UK Declaration PLC X20
