Bus controllers Parts

B&R

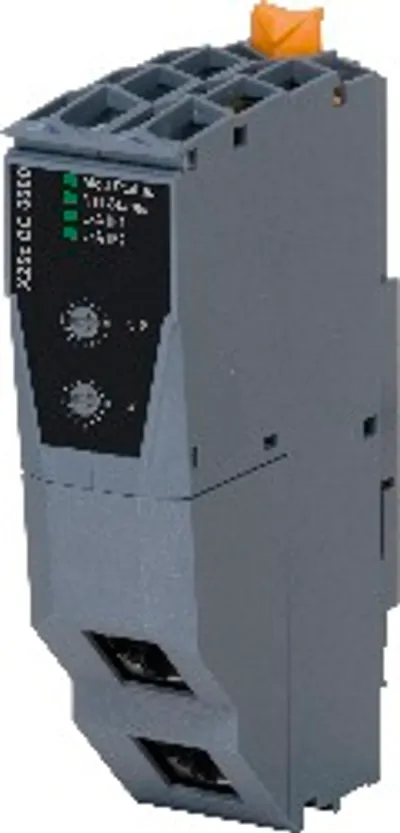

Bus controller, etherNet/IP adapter (slave)

B&R

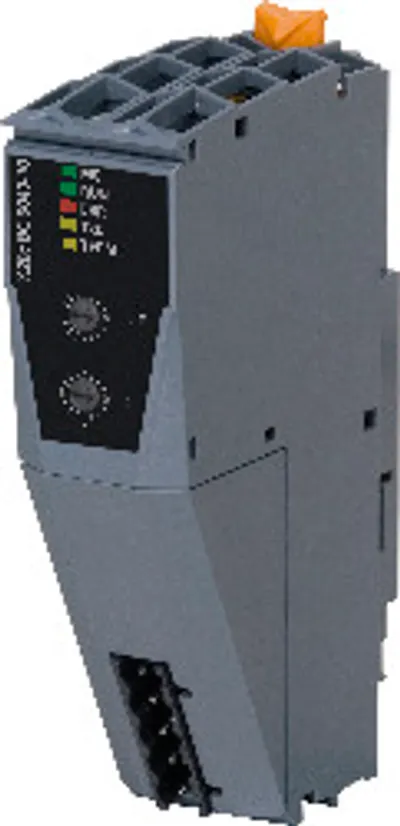

Bus controller, CANopen slave

B&R

Bus controller, PROFINET IO slave

B&R

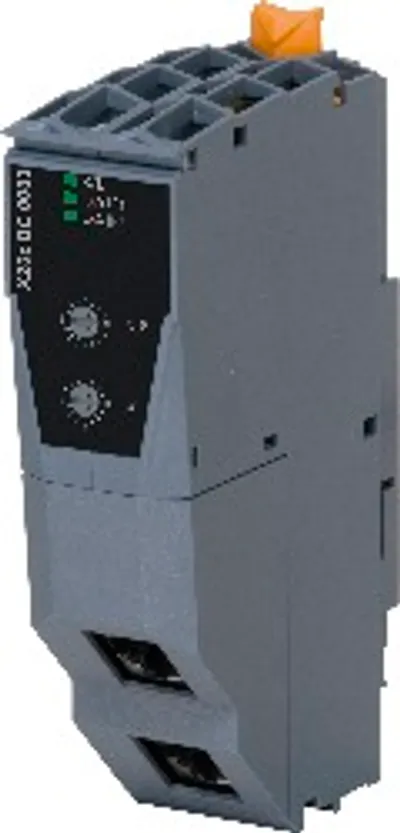

Bus controller, POWERLINK (V1/V2) controlled node

B&R

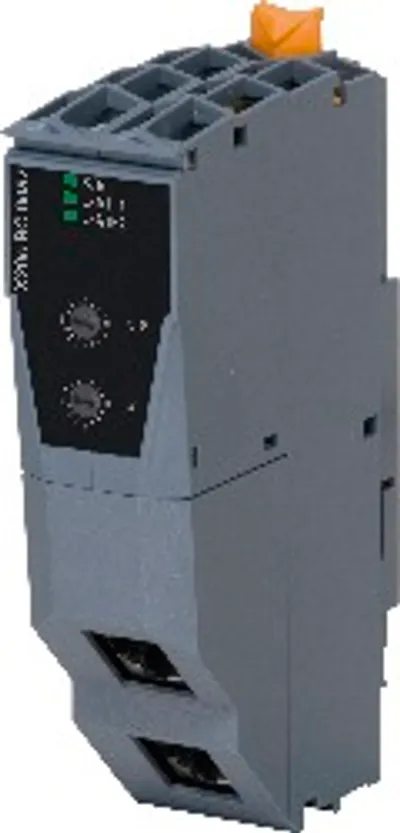

Bus controller, modbus TCP/UDP slave

Compare Bus controllers

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Bus controller	Power consumption – Bus	Fieldbus	Variant	Transfer rate
X20cBC0088	EtherNet/IP adapter (slave)	2 W	EtherNet/IP adapter (slave)	2x shielded RJ45 (switch)	10/100 Mbit/s
X20cBC0043-10	CANopen slave	1.5 W (rev. <H0: 2 W)	CANopen slave	5-pin male multipoint connector	Max. 1 Mbit/s
X20cBC00E3	PROFINET IO slave	2.5 W	PROFINET IO slave	2x shielded RJ45 (switch)	100 Mbit/s
X20cBC0083	POWERLINK (V1/V2) controlled node	2 W	POWERLINK (V1/V2) controlled node	2x shielded RJ45 (hub)	100 Mbit/s
X20cBC0087	Modbus TCP/UDP slave	2 W	Modbus TCP/UDP slave	2x shielded RJ45 (switch)	10/100 Mbit/s

Diagnostics – Module status	Yes, using LED status indicator and software
Diagnostics – Bus function	Yes, using LED status indicator and software
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
