What is the B&R VSLLXXXXX.XXXP-000?

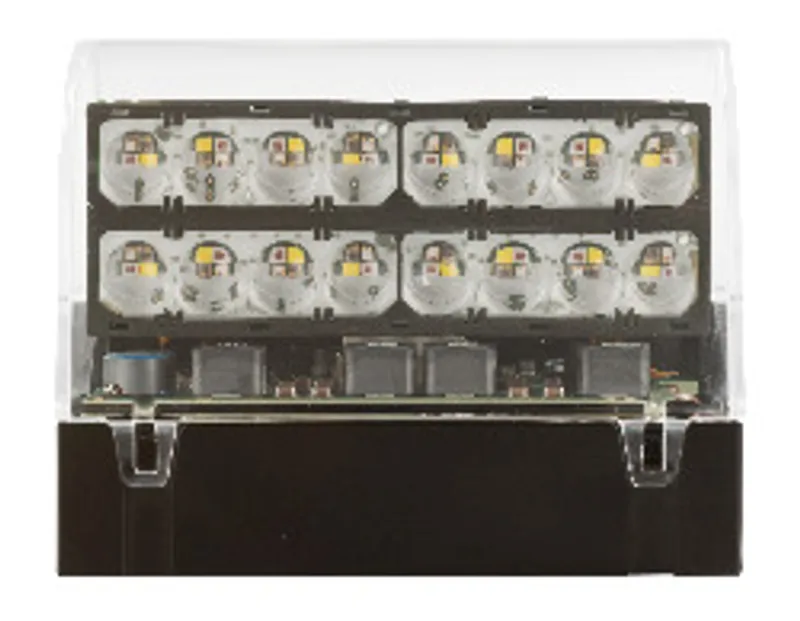

Smart Light Bar for machine vision applications
Specifications
Short description
| Illumination | Machine vision backlight |
General information
| System requirements – Automation Studio | 4.7.2 or later |
| System requirements – Automation Runtime | C4.7.2 or later |
| Cooling | Passive |
| Status indicators | Module status, Error, Link1, Link2 |
| Diagnostics | Yes, using LED "Status" and software |
| Undervoltage detection | No |
| Reverse polarity protection | Yes |
| Certification | CE |
Module power supply
| Connection | M12, 8-pin, Y-coded |
| Nominal voltage | 24 VDC -15% / +20%, SELV/PELV |
| Max. output current | 4 A / line (for forwarding) |
Interfaces
| Transfer – Physical layer | 100BASE-TX |
| Transfer – Half-duplex | Yes |
| Transfer – Full-duplex | No |
| Transfer – Autonegotiation | Yes |
| Transfer – Auto-MDI/MDIX | Yes |
| Quantity | 2 |
| Connection designation | IF1, IF2 |
| Fieldbus | POWERLINK |
| Type | POWERLINK (V2) controlled node |
| Variant | M12, 8-pin, Y-coded (2-port hub, daisy-chain wiring possible) |
| Line length | Max. 30 m between 2 stations (segment length) |
| Transfer rate | 100 Mbit/s |
| Min. cycle time | 400 μs (note: The maximum cycle time should not exceed 10 ms.) |
Integrated LED lighting
| Peak wavelength – Blue | 468 nm |
| Peak wavelength – Green | 519 nm |
| Peak wavelength – Lime (neon green) | 544 nm |
| Peak wavelength – Red | 632 nm |
| Peak wavelength – Infrared | 856 nm |
| Peak wavelength – White | None (entire visible spectrum present) |
| Spectral half width – Blue | 20 nm |
| Spectral half width – Green | 35 nm |
| Spectral half width – Lime (neon green) | 100 nm |
| Spectral half width – Red | 17 nm |
| Spectral half width – Ultraviolet | 35 nm |
| Spectral half width – White | None (entire visible spectrum present) |
| Number of module LED status indicators | 4 |
| Min. exposure time | 1 μs |
| Max. pulse duration | 10 ms |
| Risk group per EN 62471:2008 | RG0: Red, green, lime, infrared, blue with LED lens 1, white with LED lens 1 and LED lens 2 ; RG1: Blue with LED lens 2 and LED lens 3, white with LED lens 3 ; RG2: - (note: For a working distance of 200 mm, pulse length of 10 ms, and a 6.67% duty cycle.) |
| Adjustable beam angle | 0° to 135° |
| Adjustment cycles | Max. 20,000 |
LED lens
| Type 1 - Wide beam | Yes (74°) |
| Type 2 - Standard | Yes (37°) |
| Type 3 - Narrow beam | Yes (23°) |
| Front glass (cover) | Plastic without anti-reflective coating |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Mounting orientation – Face-up | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Installation elevation above sea level – Maximum | 5000 m |
| Pollution degree per EN 60664-1 | 2 |
| Overvoltage category per EN 60664-1 | II |
| Degree of protection per EN 60529 | IP65 |
Ambient conditions
| Temperature – Operation | -25 to 50°C (note: All mounting orientations) |
| Temperature – Storage | -40 to 85°C (note: All mounting orientations) |
| Temperature – Transport | -40 to 85°C (note: All mounting orientations) |
| Relative humidity – Operation | 5 to 95%, condensing |
| Relative humidity – Storage | 5 to 95%, condensing |
| Relative humidity – Transport | 5 to 95%, condensing |
