B&R VCA1L11.0020

Name: B&R VCA1L11.0020
Brand: B&R
SKU: VCA1L11.0020

MPN: VCA1L11.0020 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Cables
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can VCA1L11.0020 be shipped?

VCA1L11.0020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VCA1L11.0020 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VCA1L11.0020 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VCA1L11.0020, subject to availability and destination.

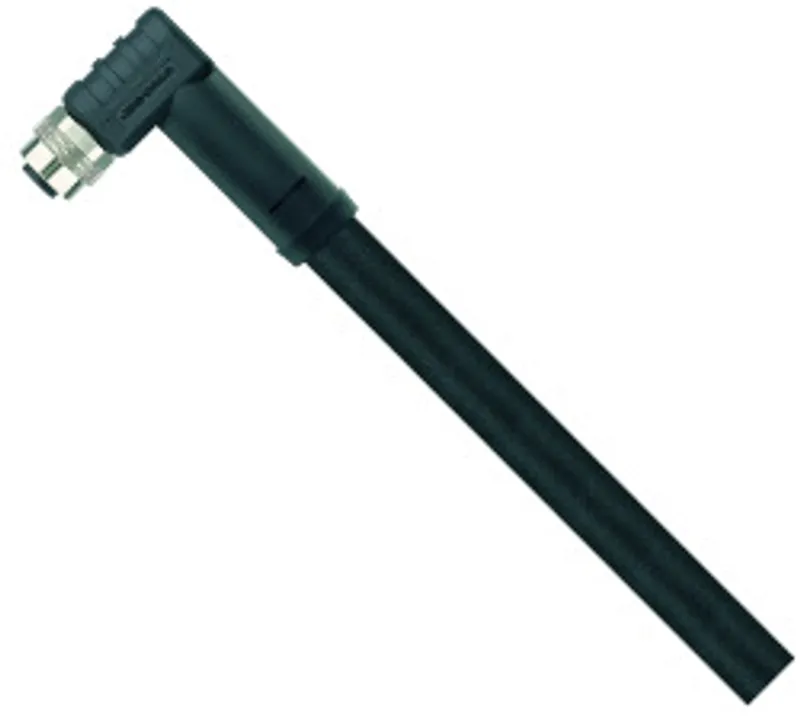

- Power attachment cable - 2.0 m - Connector: Angled

Specifications

Accessories	Power connection cable, 4-pin, angled, 2 m
Note	PWIS and halogen-free
Durability	Flame-retardant, microbe-resistant Resistant to oil, acids and alkalis Ozone, seawater and UV-resistant
AWG	4x 15 AWG
mm²	4x 1.5 mm2
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	Not applicable
Cable shield	Not shielded
Material	PUR
Color	Black RAL 9005
Wire insulation	Polypropylene (PP)
Wire colors	Brown, black, blue, white
Type	1x M12, L-coded, female
Stranding	Not stranded
Mating cycles	At least 100
Contacts	4 power supply contacts
Nominal voltage	Max. 63 VDC
Nominal current	12 A per pin
Transfer properties	Category 5 / Class D up to 100 MHz per ISO/IEC 11801
Transfer rate	100 Mbit/s
Insulation resistance	≥100 MΩ
Cables	IP67
M12 connector	IP67 (connected and screwed in)
Fixed installation	≥4x outer diameter
Flexible installation	≥7.5x outer diameter
Length	2 m
Diameter	9.6 mm
Can be used in cable drag chains	Yes
Flex cycles	>8,000,000
