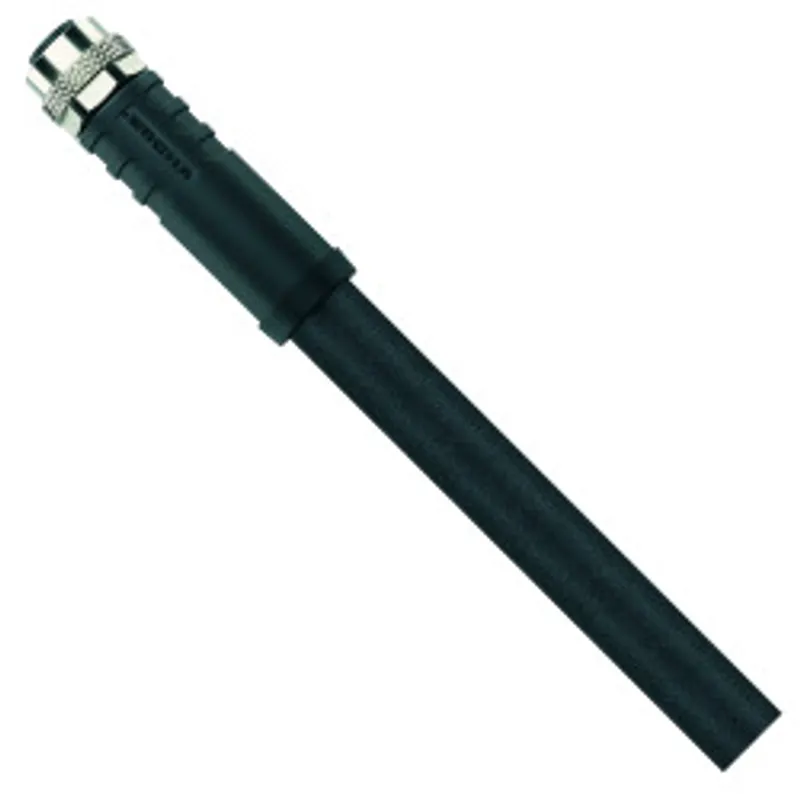

What is the B&R VCA1L01.0100?
- Power attachment cable - 10.0 m - Connector: Straight
Specifications
Short description
| Accessories | Power connection cable, 4-pin, straight, 10 m |
General information
| Cable cross section – AWG | 4x 15 AWG |
| Cable cross section – mm² | 4x 1.5 mm 2 |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Note | PWIS and halogen-free |
| Durability | Flame-retardant, microbe-resistant ; Resistant to oil, acids and alkalis; Ozone, seawater and UV-resistant |
Cable construction
| Outer jacket – Material | PUR |
| Outer jacket – Color | Black RAL 9005 |
| Wires – Wire insulation | Polypropylene (PP) |
| Wires – Wire colors | Brown, black, blue, white |
| Wires – Type | Fine-stranded; class 6 |
| Wires – Stranding | Not stranded |
| Cable shield | Not shielded |
Connector
| Type | 1x M12, L-coded, female |
| Mating cycles | At least 100 |
| Contacts | 4 power supply contacts |
Electrical properties
| Nominal voltage | Max. 63 VDC |
| Nominal current | 12 A per pin (note: Connector (UL)) |
| Insulation resistance | ≥100 MΩ |
Operating conditions
| Degree of protection per EN 60529 – Cables | IP67 |
| Degree of protection per EN 60529 – M12 connector | IP67 (connected and screwed in) |
Ambient conditions
| Temperature – Fixed installation | -25 to 80°C |
| Temperature – Flexible installation | -25 to 80°C |
Mechanical properties
| Dimensions – Length | 10 m |
| Dimensions – Diameter | 9.6 mm |
| Bend radius – Fixed installation | ≥4x outer diameter |
| Bend radius – Flexible installation | ≥7.5x outer diameter |
| Drag chain data – Flex cycles | >8,000,000 |
| Can be used in cable drag chains | Yes |
| Weight | 1260 g |
