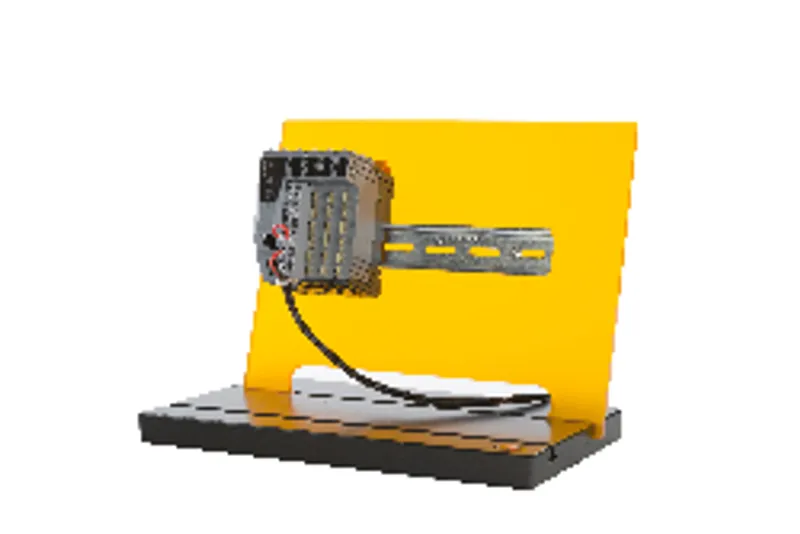

B&R ETAL980.1000-1
The bus controller in this product provides OPC UA…
- MPN
- ETAL980.1000-1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R ETAL980.1000-1?
The bus controller used in this product provides OPC UA server functions. This allows any OPC UA clients access to read or write data from I/O modules connected to the bus controller. Thanks to the standardized base module, the bus controller can easily be replaced to integrate other fieldbus systems.
OPC UA bus controller with I/O
Connection via Ethernet
Expandable with prewired elements
Compact dimensions
Specifications
General information
| Input voltage | 24 VDC -15% / +20% |
| B&R ID code | 0xF829 |
| Power consumption | 7.5 W |
| Reverse polarity protection | Yes |
24 VDC power supply
| Connection | Low voltage female connector 5.5 mm / 2.1 mm (0TP650.07) |
Mechanical properties
| Dimensions – Width | 300 mm |
| Dimensions – Height | 230 mm |
| Dimensions – Depth | 90 mm |
Brief overview
| Content of delivery | This product contains the following materials:; ; ETAL100.0200-1 ; X20BC008U ; X20PS9400 ; X20DI6371 ; X20DO6322 ; X20AI2222 ; ETAL100.3200-12 ; ; For details and additional technical data, see the data sheets for the individual products. |
Accessories
Required accessories (order separately)
| ETAL100.0000-2 | Accessories — The base plate is made of wood and coated black. Up to two ETA light products can be accommodated on one base plate.ETAL100.0000-2 - Base p… |
| 0TP650.07 | Accessories — Power supply unit for supplying products from the ETA and ETA Light portfolioConnector compatibility: See the technical data of the product… |
| 0TP370.76 | Accessories — Cold appliance power supply cable with a length of 2 meters suitable for a wide-range desktop power supply unit from the ETA light system.0… |
Optional accessories (3)
| ETAL100.1Y05-0 | Accessories — Using a Y-cable, it is possible to supply two ETA light systems using only one power supply. Many products from the ETA light system can be… |
| X20CA0E61.00100 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m |
| ETAL120.1050-1 | Simulation and input devices — ETAL210.1050-1 offers a wide range of possibilities. In order to implement exercises with sensors and actuators, the ETA light system can b… |
