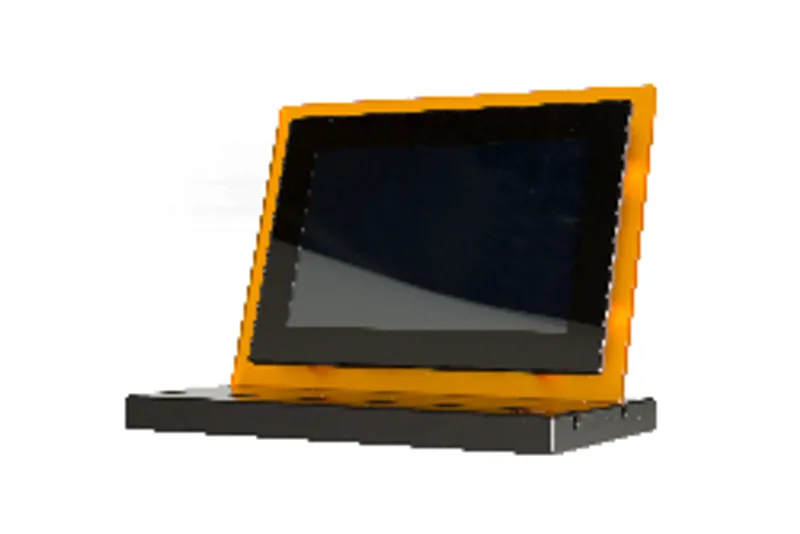

B&R ETAL611.1T10-1

Name: B&R ETAL611.1T10-1
Brand: B&R
SKU: ETAL611.1T10-1

MPN: ETAL611.1T10-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can ETAL611.1T10-1 be shipped?

ETAL611.1T10-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ETAL611.1T10-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ETAL611.1T10-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ETAL611.1T10-1, subject to availability and destination.

ETAL611.1T10-1 can be used to implement extensive HMI applications based on mapp View. Graphically designed pages with alarm handling, language switching, trends, etc. are all created with minimal effort. The products from the ETA light system portfolio can be added to implement hands-on exercises. VC4-based HMI applications can also be displayed via a VNC connection. ETAL611.1T10-1 - T-Series process-based HMI application 10 inchDisplay of HMI applications via VNC or web client using an integrated 10" displayCan be combined with other ETA light systems as a display device via Ethernet.Compact dimensions

Specifications

Input voltage	24 VDC -15% / +20%
B&R ID code	0xF461
Visual Components support	No
Power consumption	16 W
RoHS-compliant	Yes
Reverse polarity protection	Yes
Connection	Low voltage female connector 5.5 mm / 2.1 mm (0TP650.07)
Width	300 mm
Height	230 mm
Depth	40 mm
Content of delivery	This product contains the following materials: 6PPT50.101E-16A For details and additional technical data, see the data sheets for the individual products.
