B&R ETAL690.1000-1

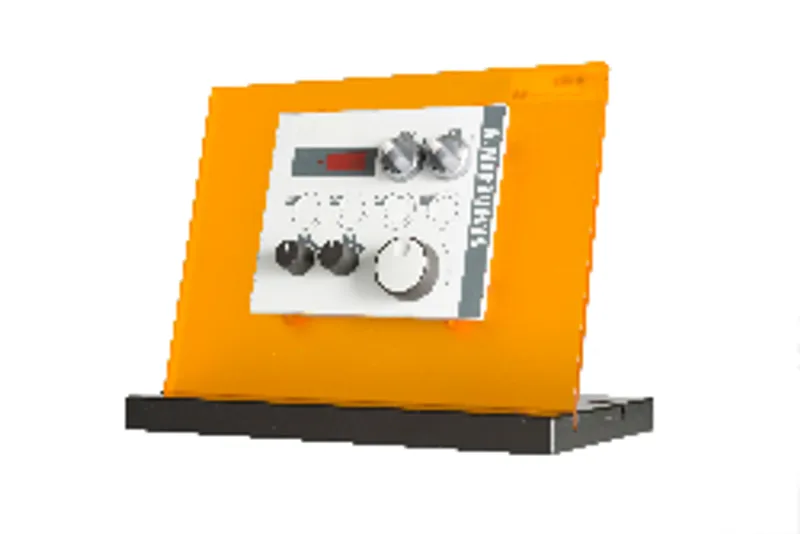

This simulation panel is equipped with keys, switches

MPN: ETAL690.1000-1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R ETAL690.1000-1?

This simulation panel is equipped with keys, switches, potentiometers, rotary encoders and a 7-segment display and is connected with other ETA light systems via POWERLINK. This results in a multitude of further application possibilities such as analog value specification, encoder simulation and the like.ETAL690.1000-1 - ETAL with simulation panel 4SIM.10-01Plastic housing in the form factor of a 5.7" Power Panel T-Series and C-Series3-digit 7-segment display with sign (minus only), control via 16-bit value2 selector switches illuminated with LED4 B&R illuminated ring keys, each with 3-color illumination (red, green, yellow)2 potentiometers; evaluated via A/D converter1 rotary encoder, 30 mechanical positions per revolution, with pushbutton2 POWERLINK interfaces (hub function) with 2x RJ45 female connectors; address can be set using the node number switch.Compact dimensions

Specifications

Input voltage	24 VDC -15% / +20%
B&R ID code	0xEB23
Power consumption	42 W
Reverse polarity protection	Yes
Connection	Low voltage female connector 5.5 mm / 2.1 mm (0TP650.07)
Width	300 mm
Height	230 mm
Depth	40 mm
Content of delivery	This product contains the following materials:4SIM.10-01For details and additional technical data, see the data sheets for the individual products.

ETAL690.1000-1: frequently asked questions

When can ETAL690.1000-1 be shipped?

ETAL690.1000-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ETAL690.1000-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ETAL690.1000-1 and we'll include express shipping options in our reply.
