B&R 8EMF0020000.0000-2

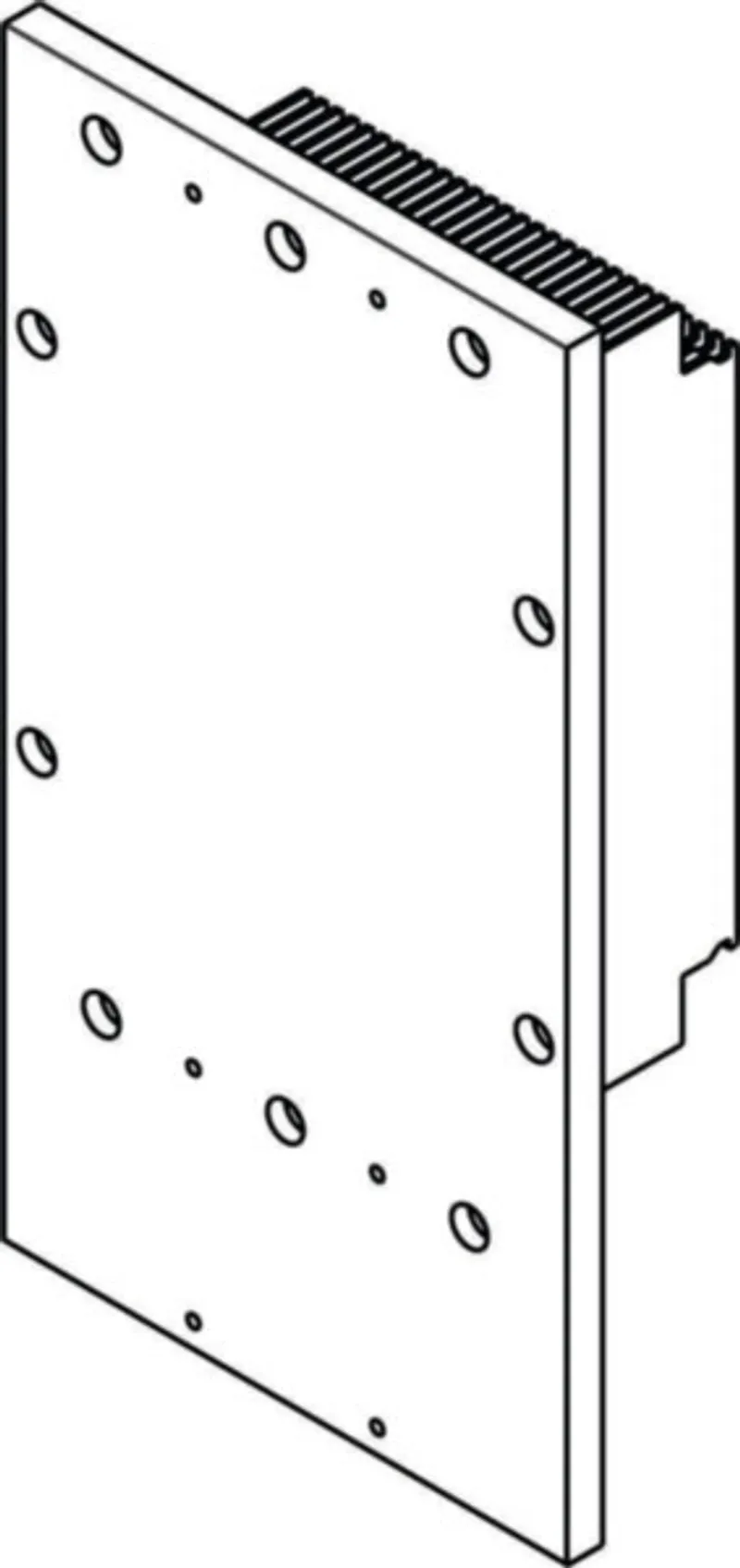

ACOPOS P3 mounting plate, 2 slots, pass-through mounting

MPN: 8EMF0020000.0000-2
Category: Feed-through mounting

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 8EMF0020000.0000-2?

ACOPOS P3 mounting plate, 2 slots, pass-through mounting

Specifications

General information

Certifications – CE	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E225616; Power conversion equipment
Number of slots	2
Cooling and mounting type	Pass-through mounting

Operating conditions

Permissible mounting orientations – Hanging vertically	Yes
Permissible mounting orientations – Horizontal, face up	No
Permissible mounting orientations – Standing horizontally	No
Degree of protection per EN 60529	IP65
Degree of protection per UL 50	Type 12 (note: In order to meet degree of protection Type 12 requirements per UL 50, it must also be ensured that the power supply of 8EXF fan modules mounted on the mounting plate is fused with a maximum of 4 A.)

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%, non-condensing
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	95% at 40°C

Mechanical properties

Dimensions – Width	205 mm (note: The dimensions define the dimensions of the mounting plate. Additional spacing above and below the mounting plate must be taken into account for mounting, connections and air circulation.)
Dimensions – Height	384 mm (note: The dimensions define the dimensions of the mounting plate. Additional spacing above and below the mounting plate must be taken into account for mounting, connections and air circulation.)
Dimensions – Depth	96 mm (note: The dimensions define the dimensions of the mounting plate. Additional spacing above and below the mounting plate must be taken into account for mounting, connections and air circulation.)
Weight	5.2 kg

Accessories

Required accessories (order separately)

8EXF500.0000-00	Fan modules — ACOPOS P3 fan module for mounting plate 8EMFxxx0000.0000-1 single-width
8EXF400.0000-00	Fan modules — ACOPOS P3 fan module for mounting plate 8EMFxxx0000.0000-1 double-width

Optional accessories (5)

X67CA0P20.0500	I/O Supply Cables — Power attachment cable, 4-pin, straight, 50 m
X67CA0P20.0150	I/O Supply Cables — Power attachment cable, 4-pin, straight, 15 m
X67CA0P20.0050	I/O Supply Cables — Power attachment cable, 4-pin, straight, 5 m
X67CA0P20.0010	I/O Supply Cables — Power attachment cable, 4-pin, straight, 1.0 m
X67CA0P00.0002	I/O Supply Cables — Power connection cable, 4-pin, straight, 0.25 m

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 8EMF0020000.0000-2PDF · 163 KB · 1.3 (08/30/2024) - DE

CAD & dimension drawings

3D file STEP 8EMF0020000.0000-2STP · 1 MB · 1.0 (04/01/2025)
