B&R 8EMC0020000.0000-2

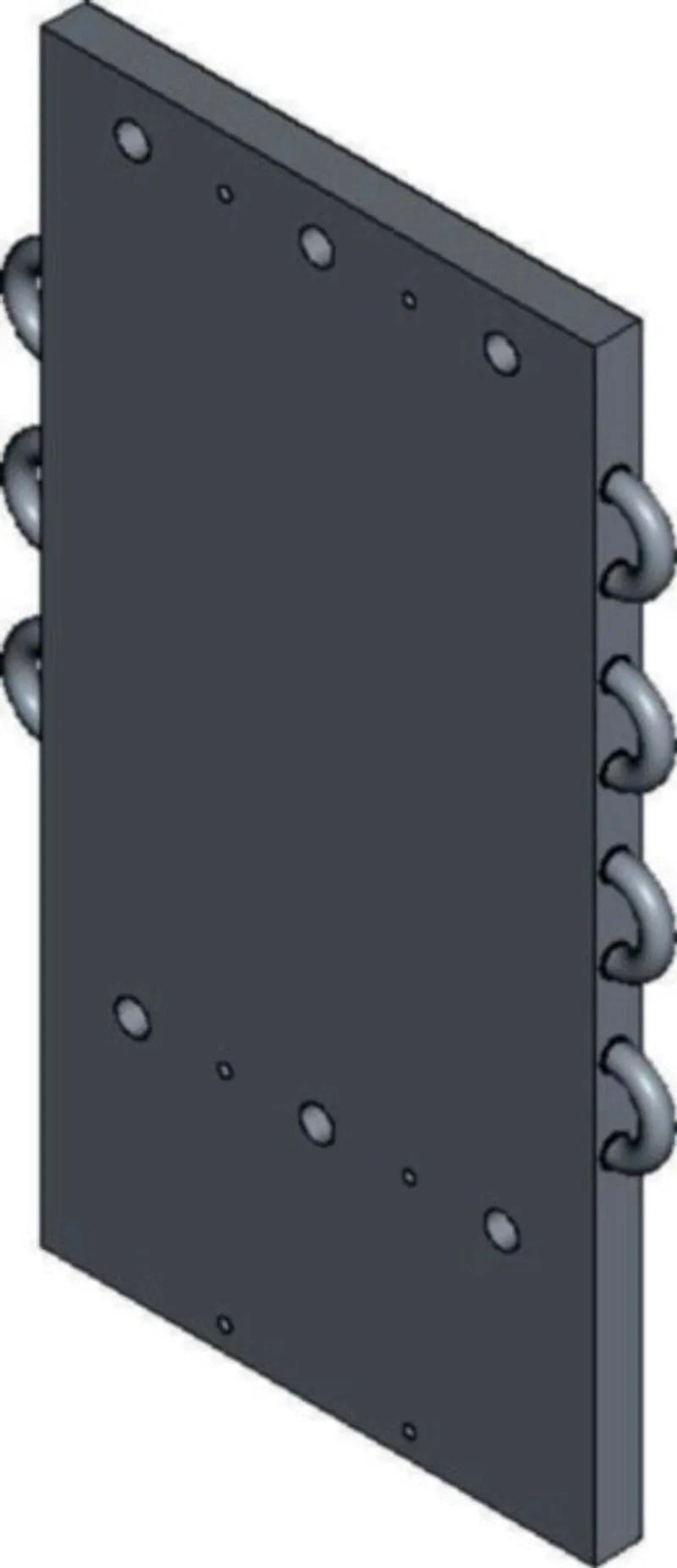

ACOPOS P3 mounting plate, 2 slots, cold plate mounting
- MPN
- 8EMC0020000.0000-2
- Category
- Cold-plate mounting
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 8EMC0020000.0000-2?
ACOPOS P3 mounting plate, 2 slots, cold plate mounting
Specifications
General information
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Number of slots | 2 |
| Cooling and mounting type | Cold plate mounting |
Operating conditions
| Permissible mounting orientations – Hanging vertically | Yes |
| Permissible mounting orientations – Horizontal, face up | No |
| Permissible mounting orientations – Standing horizontally | No |
| Flow rate – Minimum | 3 l/min (note: Valid under the following conditions: Coolant = Tap water. Values vary depending on the coolant and/or connection fitting being used!) |
| Flow rate – Maximum | 6 l/min (note: Valid under the following conditions: Coolant = Tap water. Values vary depending on the coolant and/or connection fitting being used!) |
| Pressure drop depending on flow volume – 3 l/min | Typ. 0.3 bar |
| Pressure drop depending on flow volume – 6 l/min | Typ. 0.7 bar |
| Test pressure | 10 bar for 1 minute, air inside, water outside |
| Max. continuous pressure | 5 bar (note: The requirements of the complete system (tubing, heat exchangers, recooling systems, etc.) as well as any necessary application-specific requirements must be taken into account.) |
| Max. permissible return temperature | 60°C |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85%, non-condensing |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | 95% at 40°C |
Mechanical properties
| Dimensions – Width | 241 mm |
| Dimensions – Height | 384 mm |
| Dimensions – Depth | 17 mm |
| Weight | 3.7 kg |
Accessories
Optional accessories (2)
| 8BXW001.0000-00 | Accessory sets — Accessory set: 2x fitting for mounting plate 8B0MxxxxHCxx.xxx-x and 8EMCxxxx000.0000-1, straight |
| 8BXW000.0000-00 | Accessory sets — Accessory set: 2x fitting for mounting plate 8B0MxxxxHCxx.xxx-x and 8EMCxxxx000.0000-1, angled |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
8EMC0020000.0000-2: frequently asked questions
When can 8EMC0020000.0000-2 be shipped?
8EMC0020000.0000-2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8EMC0020000.0000-2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8EMC0020000.0000-2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8EMC0020000.0000-2, subject to availability and destination.
