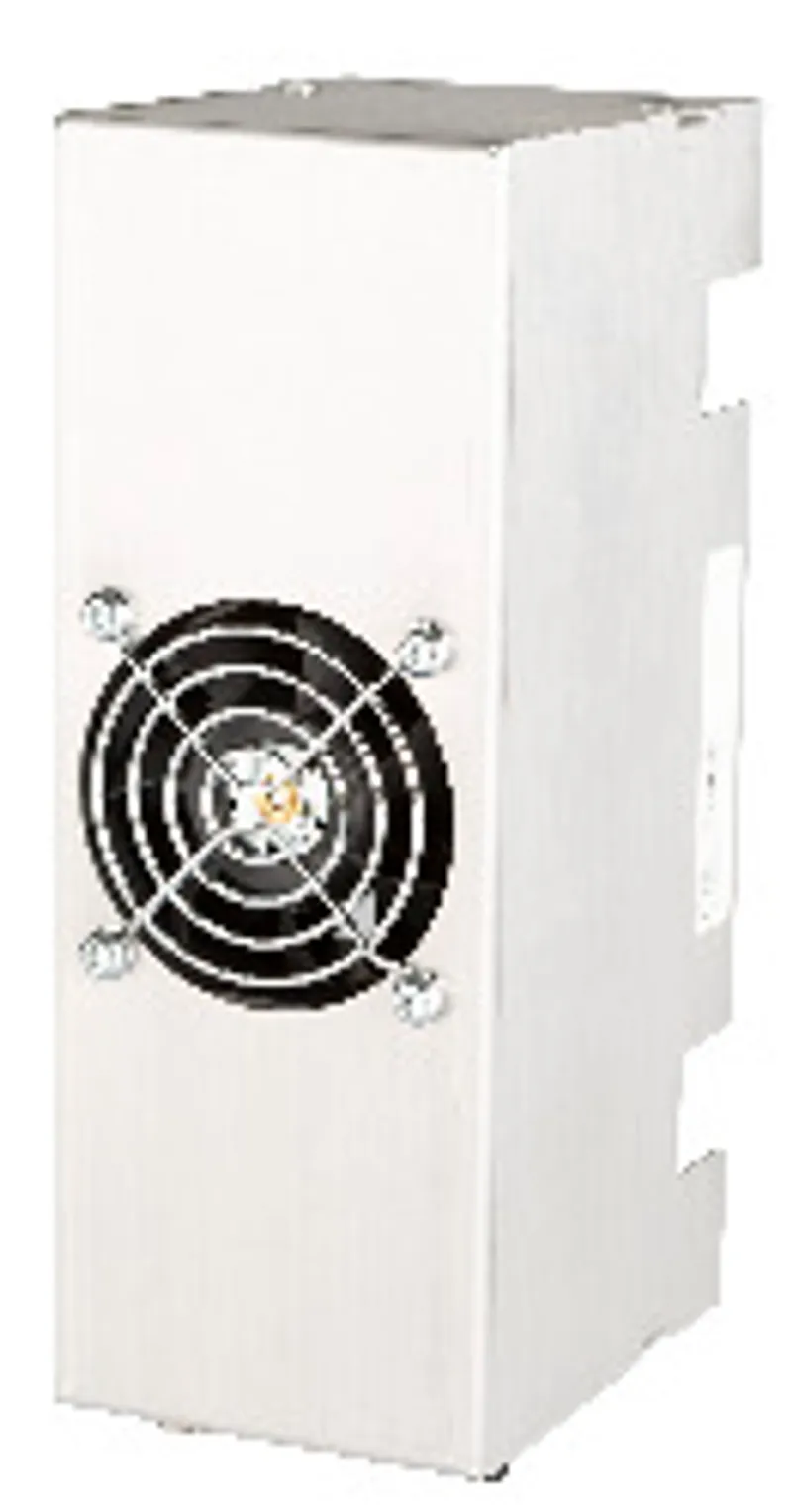

B&R 8EXF500.0000-00
ACOPOS P3 fan module for mounting plate 8EMFxxx0000.0000-1…
- MPN
- 8EXF500.0000-00
- Category
- Fan modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 8EXF500.0000-00?
ACOPOS P3 fan module for mounting plate 8EMFxxx0000.0000-1 single-width
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Short description | ACOPOS P3 fan module for mounting plate 8EMFxxx0000.0000-1 |
24 VDC power supply
| Input voltage | 24 VDC +10% / -25% |
| Connection | 1x 4-pin female M8 connector; 1x 4-pin male M8 connector |
| Power consumption | 9 W |
Operating conditions
| Degree of protection per EN 60529 | IP54 when connected |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Mechanical properties
| Service life – At 40°C | 70,000 h |
| Dimensions – Width | 71 mm |
| Dimensions – Height | 200 mm |
| Dimensions – Depth | 92 mm |
| Volumetric flow rate | 85 m³/h @ 0 Pa; 242 Pa @ 0 m³/h |
| Operating noise | 54.5 dB(A) |
| Weight | 0.3 kg |
Accessories
Optional accessories (5)
| X67CA0P20.0100 | I/O Supply Cables — Power attachment cable, 4-pin, straight, 10 m |
| X67CA0P20.0050 | I/O Supply Cables — Power attachment cable, 4-pin, straight, 5 m |
| X67CA0P20.0010 | I/O Supply Cables — Power attachment cable, 4-pin, straight, 1.0 m |
| X67CA0P10.0002 | I/O Supply Cables — Power connection cable, 4-pin, angled, 0.25 m |
| X67CA0P00.0002 | I/O Supply Cables — Power connection cable, 4-pin, straight, 0.25 m |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (2)
