Adapter cables Parts

B&R

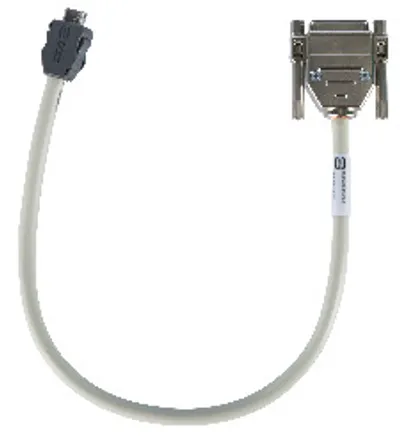

ACOPOS P3 adapter cable for digital encoder interfaces

B&R

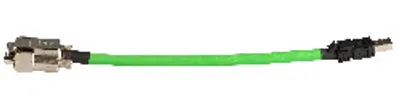

ACOPOS P3 adapter cable for 8EAC0122.00x-1, length 0.4 m

B&R

ACOPOS P3 adapter cable, length 0.4 m

Compare Adapter cables

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Cable cross section	Outer jacket – Color	Conductor resistance – Signal line	Temperature – Moving	Temperature – Static
8ECF00X4.1241C-0	4x 0.14 mm² + 4x 0.35 mm²	Green flat	≤134 Ω/km	-10 to 80°C	-40 to 80°C
8ECG00X4.1341C-0	3x 2x 24 19 AWG	Green, similar to RAL 6018 flat	≤86 Ω/km	-10°C to +80°C	-40°C to +80°C
8ECG00X4.3151D-0	5 x 2 x 0.14 mm²	Gray (RAL 7032)	≤122 Ω/km	-5°C to +80°C	-30°C to +80°C

Certifications – CRA (Cyber Resilience Act)	Not applicable
Degree of protection per EN 60529	IP20 when connected
Insulation resistance	>200 MΩ*km
