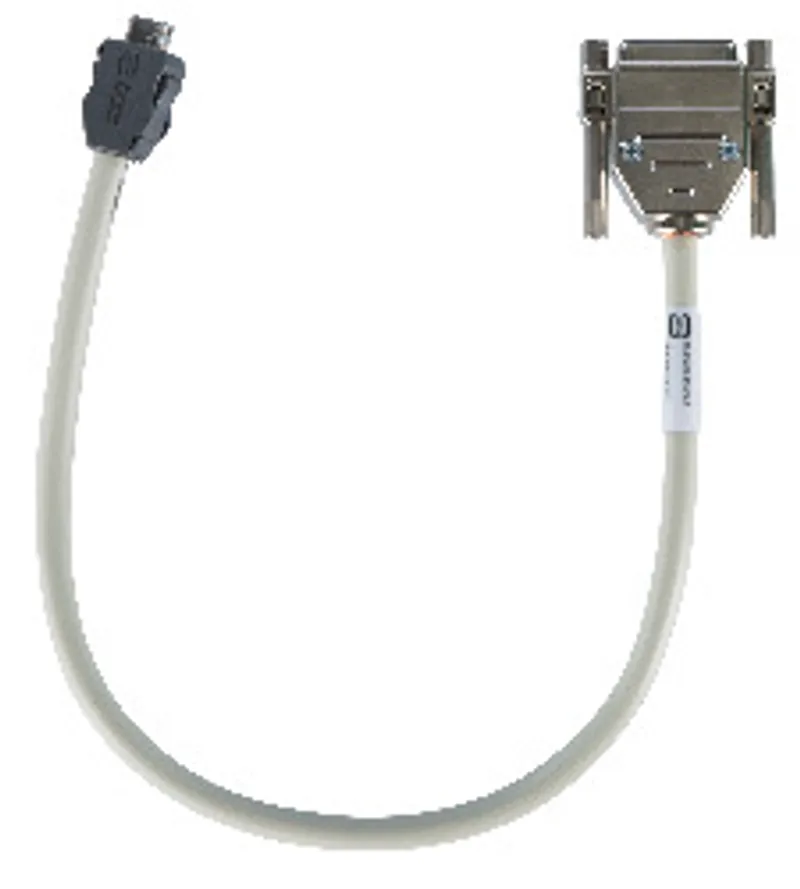

B&R 8ECG00X4.3151D-1

ACOPOS P3 adapter cable, length 0.4 m

MPN: 8ECG00X4.3151D-1

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 8ECG00X4.3151D-1?

ACOPOS P3 adapter cable, length 0.4 m, for analog multi-encoder interfaces and incremental encoder interfaces, 10-pin male IX connector to 15-pin female DSUB

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Cable cross section	1x 4x 0.14 mm² + 2x 2x 0.14 mm² + 2x 0.38 mm²
Durability	Oil resistance per DIN EN 50363-10-2 (note: Values refer to the raw cable being used.)
Certification	UL AWM style 20963 (note: Values refer to the raw cable being used.)

Cable construction

Supply lines – Quantity	2
Supply lines – Wire insulation	PP
Supply lines – Wire colors	Brown/Green, white/green
Supply lines – Variant	Tinned copper stranded wire
Supply lines – Cross section	0.38 mm²
Supply lines – Shield	No
Supply lines – Stranding	No
Signal line – Quantity	8
Signal line – Wire insulation	PP
Signal line – Wire colors	Gray, violet, pink, yellow, blue, red, white, brown
Signal line – Variant	Tinned copper stranded wire
Signal line – Cross section	8x 0.14 mm²
Signal line – Shield	Tinned copper braiding, optical coverage >85% (note: Gray, violet, pink, yellow)
Signal line – Stranding	Gray with violet with pink with yellow, blue with red, white with brown
Outer jacket – Material	TPU
Outer jacket – Color	Green, similar to RAL 6018
Outer jacket – Labeling	B&R 1x(4x0.14)C + 2x2x0.14 + 2x0.38 QMM C E170315 cRUus AWM STYLE 20963 AWM I/II A/B 80°C 30 V FT2 (note: Values refer to the raw cable being used.)
Cable shield	Tinned copper braiding, optical coverage >85%

Connector

Type	15-pin female DSUB connector
Mating cycles	<500
Contacts	15
Additional connectors	10-pin male IX connector; Mating cycles: <5000; Contacts: 10; Degree of protection per EN 60529: IP20 when connected
Degree of protection per EN 60529	IP20 when connected

Electrical properties

Test voltage – Wire - Wire	1.0 kV
Test voltage – Wire - Shield	0.5 kV
Conductor resistance – Supply lines	≤56.0 Ω/km
Conductor resistance – Signal line	≤138 Ω/km
Operating voltage	≤30 V eff
Insulation resistance	>500 MΩ*km

Ambient conditions

Temperature – Moving	-30°C to +80°C
Temperature – Static	-40°C to +80°C

Mechanical properties

Dimensions – Length	0.4 m
Dimensions – Diameter	7 mm ±0.2 mm
Bend radius – Single bend	≥22 mm
Bend radius – Moving	≥54 mm
Weight	0.63 kg
