B&R

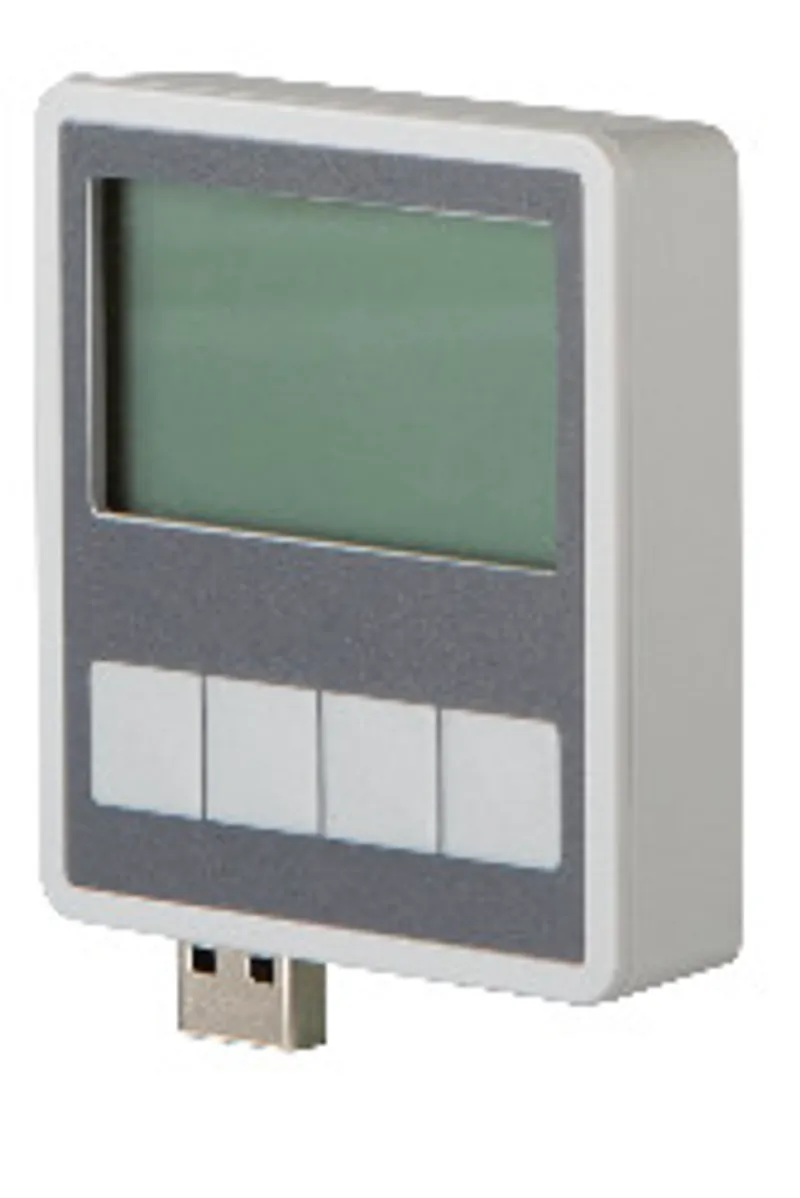

B&R 8EAD0000.100-1

10x display module, LCD, 128 x 64, black/white, 1x USB 3.0

MPN
8EAD0000.100-1
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare B&R parts? We buy surplus →

What is the B&R 8EAD0000.100-1?

10x display module, LCD, 128 x 64, black/white, 1x USB 3.0

Specifications

General information

Certifications – CEYes
Certifications – UKCAYes
Certifications – ULcULus E225616; Power conversion equipment
Power consumptionMax. 2.5 W (note: Power consumption values correspond to 1 display module.)

Display

TypeLCD
ColorsBlack/White
Resolution128 x 64

Keys

TypeShort stroke keys
Quantity4

Electrical properties

Nominal voltage5 to 26 VDC (note: Nominal voltage values correspond to 1 display module.)

Operating conditions

Degree of protection per EN 60529IP20

Ambient conditions

Temperature – Nominal5 to 40°C
Temperature – Maximum55°C
Temperature – Storage-25°C to 55°C
Temperature – Transport-25°C to 70°C
Relative humidity – Storage5 to 95%
Relative humidity – Transport95% at 40°C

Mechanical properties

Dimensions – Width59 mm (note: The values for the dimensions correspond to 1 display module.)
Dimensions – Height75 mm (note: The values for the dimensions correspond to 1 display module.)
Dimensions – Depth20 mm (note: The values for the dimensions correspond to 1 display module.)
Weight10 x 54 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Certificates (2)

8EAD0000.100-1: frequently asked questions

When can 8EAD0000.100-1 be shipped?

8EAD0000.100-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8EAD0000.100-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8EAD0000.100-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8EAD0000.100-1, subject to availability and destination.
