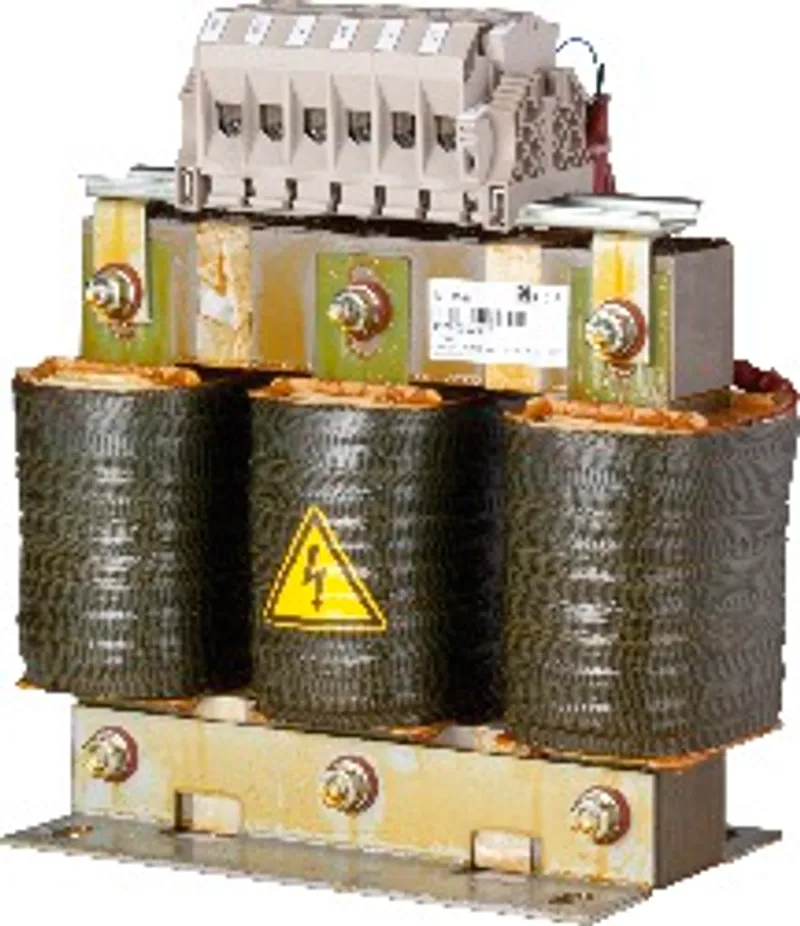

B&R 8BVR0440H000.101-2
Connection for temperature sensor
- MPN
- 8BVR0440H000.101-2
- Category
- Regeneration chokes
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8BVR0440H000.101-2?
Connection for temperature sensor
Optimally suited for ACOPOSmulti 8BVP power supply modules
ACOPOSmulti regeneration choke, 45 A, 480 V, terminal block, peak current carrying capacity increased
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| Cooling and mounting type | Wall mounting |
Mains connection
| Reduction of continuous current depending on ambient temperature – Face-up mounting orientation | - |
| Reduction of continuous current depending on ambient temperature – Vertical mounting orientation | In preparation |
| Reduction of continuous current depending on installation elevation – Starting at 1000 m above sea level | 3.6 A eff per 1,000 m |
| Variant – On mains | No |
| Variant – On device | No |
| Variant – U1, V1, W1 | Terminals |
| Variant – U2, V2, W2 | Terminals |
| Terminal connection cross section – With wire end sleeve | 1.5 to 16 mm² |
| Terminal connection cross section – UL/C-UL-US | 18 to 4 AWG |
| Terminal connection cross section – CSA | 18 to 4 AWG |
| Mains input voltage | 3x 220 to 3x 480 VAC ±10% |
| Frequency | 50 / 60 Hz ±4% |
| Allocation to power supply module | 8BVP0880HC00.00x-1; 8BVP0880HW00.00x-1 |
| Continuous currentStanding horizontally", 40°C ambient temperature, installation elevation <500 m above sea level."> | 45 A eff (note: Valid under the following conditions: Mounting orientation) |
| Peak current <10 s | 180 A eff |
| Power dissipation at nominal current | 260 W |
| Inductance | 0.5 mH |
Temperature sensor connection
| Variant – T+, T- | Terminals |
| Terminal connection cross section – With wire end sleeve | 0.5 to 2.5 mm² |
| Terminal connection cross section – UL/C-UL-US | 30 to 12 AWG |
| Terminal connection cross section – CSA | 26 to 12 AWG |
Operating conditions
| Permissible mounting orientations – Hanging vertically | No |
| Permissible mounting orientations – Horizontal, face up | No |
| Permissible mounting orientations – Standing horizontally | Yes |
| Installation elevation above sea level – Nominal | 0 to 500 m |
| Installation elevation above sea level – Maximum | 4000 m (note: Continuous operation at an installation elevation of 500 m to 4,000 m above sea level is possible taking the specified reduction of continuous current into account. Requirements that go beyond this must be arranged with B&R.) |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | III |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Mechanical properties
| Dimensions – Width | 270 mm |
| Dimensions – Height | 285 mm |
| Dimensions – Depth | 120 mm |
| Weight | Approx. 18 kg |
