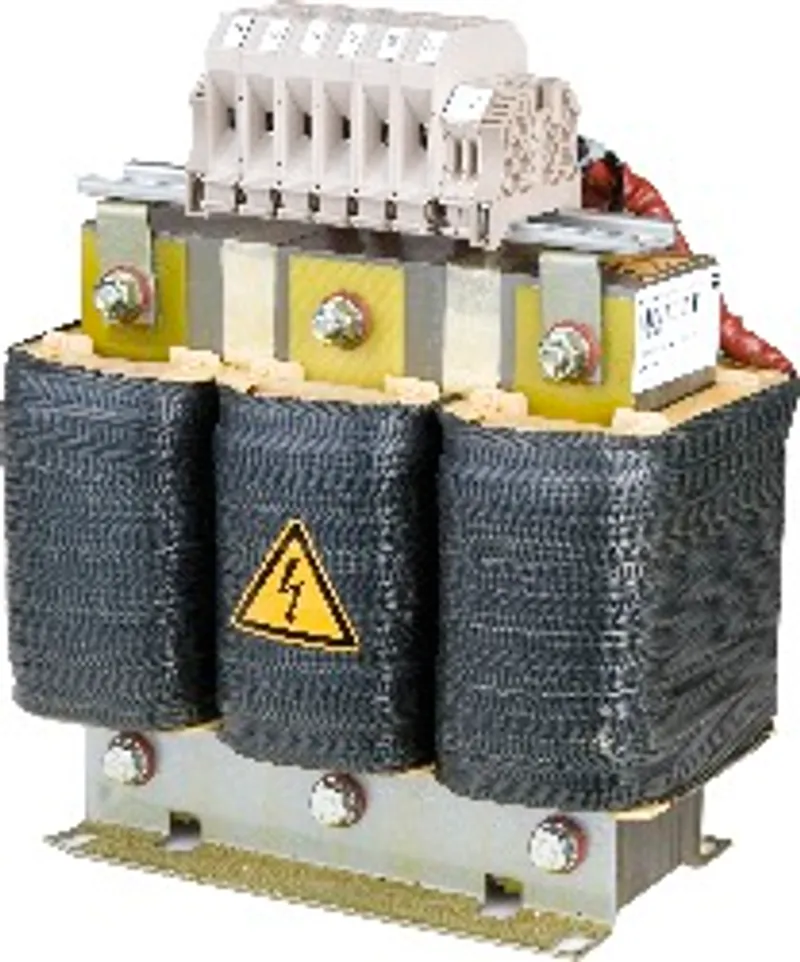

B&R 8BVR0440H000.100-1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Regeneration chokes |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 24.1 kg |
Shipping & availability
When can 8BVR0440H000.100-1 be shipped?
8BVR0440H000.100-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BVR0440H000.100-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BVR0440H000.100-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BVR0440H000.100-1, subject to availability and destination.
Connection for temperature sensorOptimally suited for ACOPOSmulti 8BVP power supply modules ACOPOSmulti regeneration choke, 45 A, 480 V, terminal blocks
Specifications
Specifications
| Cooling and mounting type | Wall mounting |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| UL | cULus E225616 Power conversion equipment |
| KC | Yes |
| Mains input voltage | 3x 220 to 3x 480 VAC ±10% |
| Frequency | 50 / 60 Hz ±4% |
| Allocation to power supply module | 8BVP0440HC00.000-1 8BVP0440HW00.000-1 |
| Continuous current | 45 Aeff |
| Peak current <10 s | 90 Aeff |
| Face-up mounting orientation | - |
| Vertical mounting orientation | 0.4 Aeff per °C (starting at 40°C) |
| Starting at 1000 m above sea level | 3.6 Aeff per 1,000 m |
| Power dissipation at nominal current | 330 W |
| U1, V1, W1 | Terminals |
| U2, V2, W2 | Terminals |
| On mains | No |
| On device | No |
| Solid core / Multiple-conductor lines | 1.5 to 25 mm² |
| With wire end sleeve | 0.5 to 2.5 mm² |
| UL/C-UL-US | 30 to 12 AWG |
| CSA | 26 to 12 AWG |
| Inductance | 1 mH |
| T+, T- | Terminals |
| Hanging vertically | No |
| Horizontal, face up | No |
| Standing horizontally | Yes |
| Nominal | 5 to 40°C |
| Maximum | 55°C |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | III |
| Degree of protection per EN 60529 | IP20 |
| Storage | 5 to 95% |
| Transport | Max. 95% at 40°C |
| Operation | 5 to 85% |
| Width | 251 mm |
| Height | 285 mm |
| Depth | 146 mm |
| Weight | 24.1 kg |
