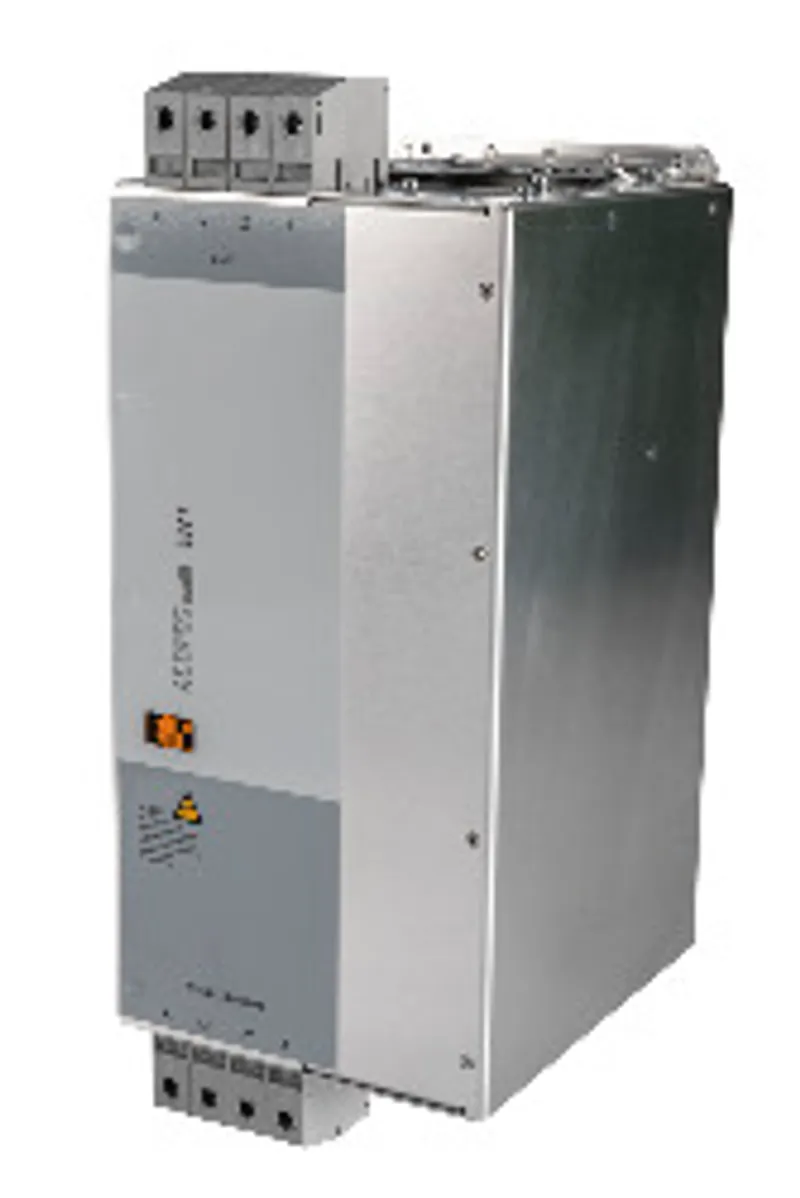

B&R 8BVF0880H000.000-1
ACOPOSmulti line filter, 90 A, 480 V
- MPN
- 8BVF0880H000.000-1
- Category
- Line filters
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8BVF0880H000.000-1?
Wide mains input voltage range
Optimally suited for ACOPOSmulti 8BVP power supply modules
Compliance with limit values per CISPR11, group 2, class A
ACOPOSmulti line filter, 90 A, 480 V
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| Cooling and mounting type | Wall mounting |
Mains connection
| Reduction of continuous current depending on installation elevation – Starting at 1000 m above sea level | 7.2 A eff |
| Variant – On mains | No |
| Variant – On device | Yes (note: Cables do not have to be shielded up to a total wiring length of 3 m between the line filter, regeneration choke and power supply module. Consult B&R when using cable lengths >3 m.) |
| Variant – L1, L2, L3, PE and L1´, L2´, L3´, PE | Feed-through terminals |
| Variant – PE | No |
| Terminal connection cross section – With wire end sleeve | 10 to 50 mm² |
| Terminal connection cross section – UL/C-UL-US | 6 to 1/0 AWG |
| Terminal connection cross section – CSA | 6 to 1/0 AWG |
| Permissible network configurations | TT, TNDelta/Wye with grounded wye neutral" in the USA."> (note: TT and TN power systems are commonly referred to as) |
| Mains input voltage | 3x 220 to 3x 480 VAC ±10% |
| Frequency | 50 / 60 Hz ±4% |
| Allocation to power supply module | 8BVP0880HC00.00x-1 ; 8BVP0880HW00.00x-1 |
| Continuous current | 90 A eff (note: Valid under the following conditions: 40°C ambient temperature, installation elevation <500 m above sea level.) |
| Peak current <10 s | 180 A eff |
| Reduction of continuous current at ambient temperatures starting at 40°C | 1 A eff per °C |
| Power dissipation at nominal current | 980 W |
| Integrated line filter per EN 61800-3, category C3 | Yes |
| Terminal cable cross section dimension of shield connection | 32 to 50 mm |
Fan connector
| Variant – F+, F- | Connector |
| Terminal connection cross section – With wire end sleeve | 0.25 to 2.5 mm² |
| Terminal connection cross section – UL/C-UL-US | 30 to 12 AWG |
| Terminal connection cross section – CSA | 28 to 12 AWG |
| Connection voltage | 24 VDC |
| Max. power consumption during operation (P Fan8BVF... ) | 8.25 W |
Temperature sensor connection
| Variant – T+, T- | Connector |
| Terminal connection cross section – With wire end sleeve | 0.25 to 2.5 mm² |
| Terminal connection cross section – UL/C-UL-US | 30 to 12 AWG |
| Terminal connection cross section – CSA | 28 to 12 AWG |
Electrical properties
| Discharge capacitance | 14.1 µF |
Operating conditions
| Permissible mounting orientations – Hanging vertically | Yes |
| Permissible mounting orientations – Horizontal, face up | Yes |
| Permissible mounting orientations – Standing horizontally | No |
| Installation elevation above sea level – Nominal | 0 to 500 m |
| Installation elevation above sea level – Maximum | 4000 m (note: Continuous operation at an installation elevation of 500 m to 4,000 m above sea level is possible taking the specified reduction of continuous current into account. Requirements that go beyond this must be arranged with B&R.) |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | III |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Nominal | 5°C to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25°C to 55°C |
| Temperature – Transport | -25°C to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Mechanical properties
| Dimensions – Width | 175 mm |
| Dimensions – Height | 436 mm |
| Dimensions – Depth | 212 mm |
| Weight | 23.5 kg |
Accessories
Required accessories (order separately)
| 8BZVF088000.000-1A | Terminal block sets — Screw clamp terminal block set for ACOPOSmulti 8BVF0880H000.000-1 modules: 1x 8TB2104.204A-00 |
Optional accessories (1)
| 8TB2104.204A-00 | Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 4: T- T+ F- F+, coding A: 0000 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
8BVF0880H000.000-1: frequently asked questions
When can 8BVF0880H000.000-1 be shipped?
8BVF0880H000.000-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BVF0880H000.000-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BVF0880H000.000-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BVF0880H000.000-1, subject to availability and destination.
