Line filters Parts
Compare Line filters
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Reduction of continuous current depending on installation elevation – Starting at 1000 m above sea level | Allocation to power supply module | Reduction of continuous current at ambient temperatures starting at 40°C | Power dissipation at nominal current | Terminal cable cross section dimension of shield connection |
|---|---|---|---|---|---|

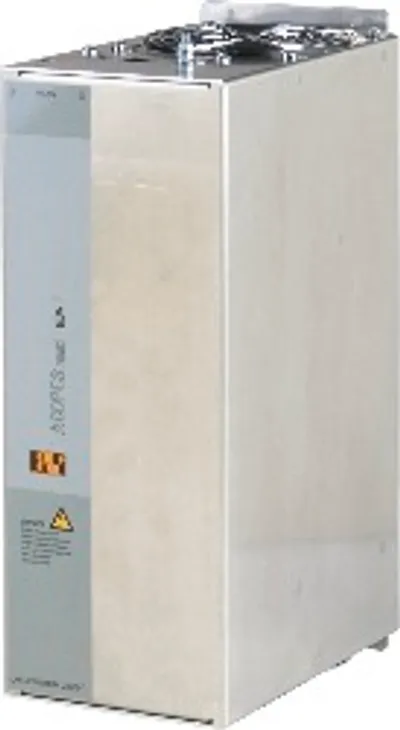

| 8BVF0220H000.000-1 | 1.8 A eff | 8BVP0220HC00.000-1; 8BVP0220HW00.000-1 | No reduction | 85 W | 12 to 22 mm |
| 8BVF0440H000.001-2 | 3.6 A eff | 8BVP0440HC00.000-1; 8BVP0440HW00.000-1 | 0.4 A eff per °C | 210 W | 23 to 35 mm |

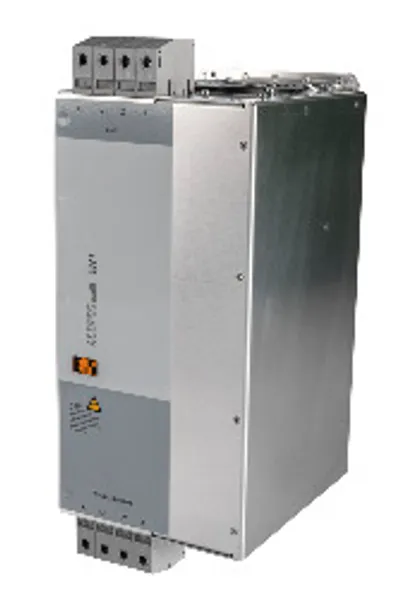

| 8BVF0880H000.000-1 | 7.2 A eff | 8BVP0880HC00.00x-1 ; 8BVP0880HW00.00x-1 | 1 A eff per °C | 980 W | 32 to 50 mm |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| Cooling and mounting type | Wall mounting |
| Variant – On mains | No |
| Mains input voltage | 3x 220 to 3x 480 VAC ±10% |
