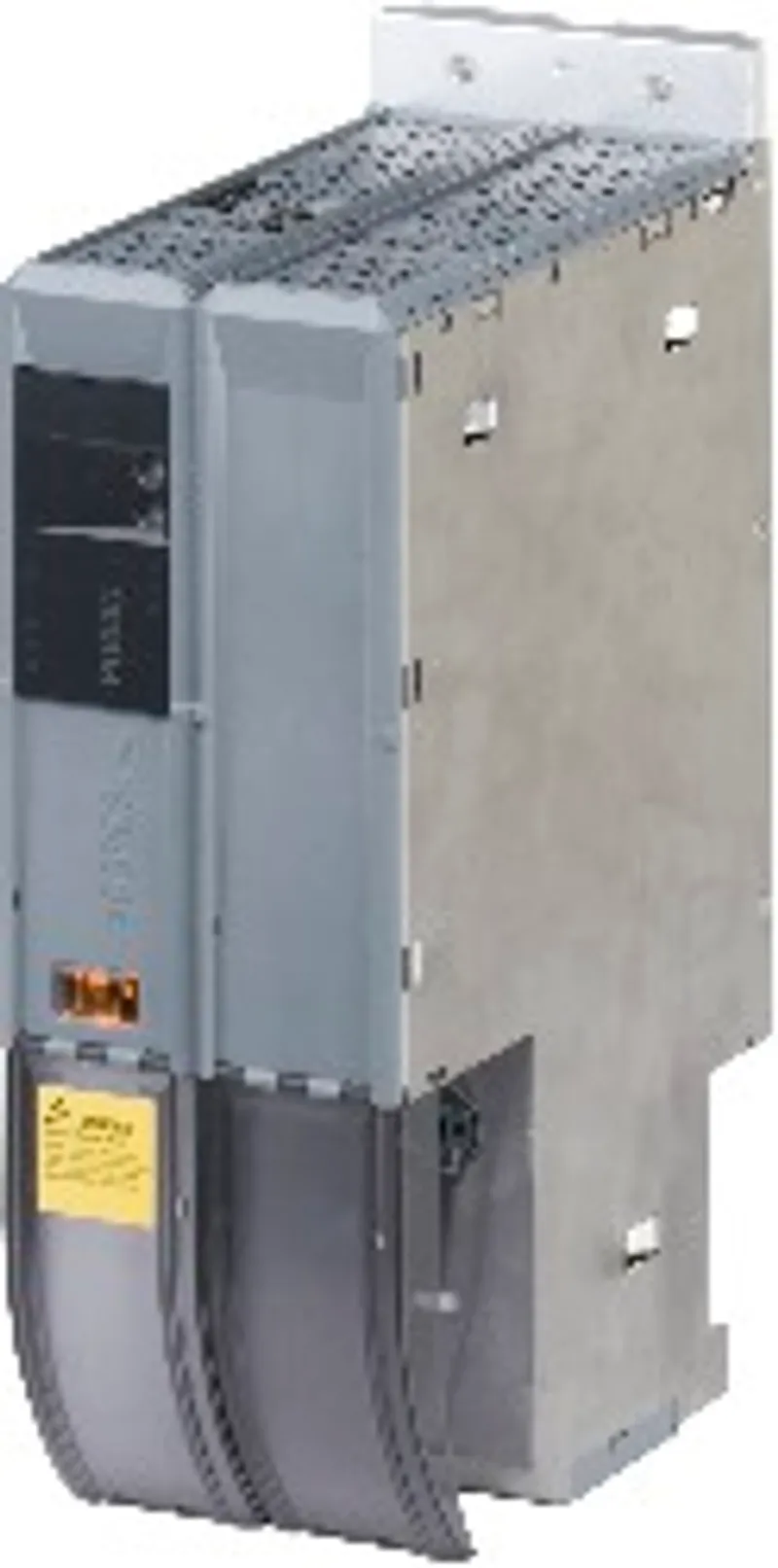

B&R 8B0P0440HC00.000-1
ACOPOSmulti power supply module passive, 44 A, AS, cold plate or pass-through mounting
- MPN
- 8B0P0440HC00.000-1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8B0P0440HC00.000-1?
Wide input voltage range
Integrated connection for external braking resistor
ACOPOSmulti power supply module passive, 44 A, AS, cold plate or pass-through mounting
Specifications
General information
| Support – Dynamic node allocation (DNA) | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| B&R ID code | 0xA8E8 |
| Cooling and mounting type | Cold plate or pass-through mounting |
Mains connection
| Max. chargeable DC bus capacitance depending on mains voltage – 400 VAC | 14.4 mF (note: Up to revision F0: 5.8 mF) |
| Max. chargeable DC bus capacitance depending on mains voltage – 480 VAC | 10 mF (note: Up to revision F0: 4 mF) |
| Variant – L1, L2, L3, PE | Connector |
| Variant – PE | M5 threaded bolt |
| Variant – Shield connection | Yes (note: Cables do not have to be shielded up to a total wiring length of 3 m between the line filter and power supply module. Consult B&R when using cable lengths >3 m.) |
| Terminal connection cross section – With wire end sleeve | 0.5 to 16 mm² |
| Terminal connection cross section – UL/C-UL-US | 20 to 6 AWG |
| Terminal connection cross section – CSA | 20 to 6 AWG |
| Network configurations | TT, TN-S, TN-C-SDelta/Wye with grounded wye neutral" in the USA."> (note: TT and TN power systems are commonly referred to as) |
| Mains input voltage | 3x 380 to 3x 500 VAC ±10% |
| Frequency | 50 / 60 Hz ±4% |
| Installed load | Max. 30.4 kVA |
| Power dissipation with continuous power | Approx. 300 W |
| Inrush current at 400 VAC | 10 A |
| Switch-on interval | >120 s |
| Integrated line filter per EN 61800-3, category C3 | No |
| Integrated regeneration choke | No |
| Regenerative | No |
| Power factor correction (PFC) | No |
| Line fuse | Max. 132 A (gG fuses per IEC 60269-1 or Class CC, J, T); Max. 110 A (circuit breaker per EN 60947-2 or UL 489) (note: The module has product approval per UL 508c and UL 61800-5-1. For product approval per UL 61800-5-1, a mains choke with uk=4% (e.g. 8I0CT060.000-1) must be connected upstream for networks with a short-circuit capacity (SCCR) of 65 kA.) |
| Terminal cable cross section dimension of shield connection | 23 to 35 mm |
DC bus connection
| Voltage – Nominal | 537 to 707 VDC |
| Reduction of continuous power depending on mains input voltage – Mains input voltage <3x 400 VAC | 40 W/V * (400 V - Mains input voltage) |
| Reduction of continuous power depending on installation elevation – Starting at 500 m above sea level | 1.6 kW per 1000 m |
| Protective measures – Overload protection | Yes |
| Protective measures – Short-circuit and ground fault protection | No |
| Continuous power | 16 kW (note: Valid under the following conditions: Mains input voltage 3x 400 VAC, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.) |
| Reduction of continuous power depending on cooling method | In preparation |
| Peak power output (supply) | 48 kW |
| Power dissipation with continuous power | In preparation |
| DC bus capacitance | 1320 µF |
| Variant | ACOPOSmulti backplane |
24 VDC power supply
| Input voltage | 25 VDC ±1.6% |
| Input capacitance | 23.5 µF |
| Max. power consumption | 12 W |
| Variant | ACOPOSmulti backplane |
Motor holding brake connection
| Terminal connection cross section – With wire end sleeve | 0.5 to 6 mm² |
| Terminal connection cross section – UL/C-UL-US | 20 to 8 AWG |
| Terminal connection cross section – CSA | 20 to 8 AWG |
Braking resistor
| Variant – RB+, RB-, PE | Connector |
| Variant – Shield connection | Yes |
| Protective measures – Overload protection | Yes |
| Protective measures – Short-circuit and ground fault protection | Yes (with RB+ by externally replaceable melting fuse) |
| Peak power output | 65 kW (max. 1 s) |
| Continuous power | 3 kW |
| Min. braking resistance | 7.5 Ω |
| Rated current of built-in fuse | 30 A (fast-acting) (note: A Littelfuse KLK D 030 fuse must be used.) |
| Terminal cable cross section dimension of shield connection | 23 to 35 mm |
Electrical properties
| Energy efficiency (IE classification) – Power dissipation relative to continuous apparent power | IE2 (10;25) 0.1% ; IE2 (50;25) 0.1% ; IE2 (10;50) 0.1% ; IE2 (50;50) 0.2% ; IE2 (90;50) 0.5% ; IE2 (10;100) 0.1% ; IE2 (50;100) 0.5% ; IE2 (90;100) 1.2% (note: The IE classification of the module is based on drive losses. This includes components such as EMC filters, etc. Classification is performed at 90% of the frequency and at 100% of the continuous current.) |
| Energy efficiency (IE classification) – Nominal losses in standby mode | 6 W (note: The IE classification of the module is based on drive losses. This includes components such as EMC filters, etc. Classification is performed at 90% of the frequency and at 100% of the continuous current.) |
| Discharge capacitance | 0.9 µF |
Operating conditions
| Permissible mounting orientations – Hanging vertically | Yes |
| Permissible mounting orientations – Horizontal, face up | Yes |
| Permissible mounting orientations – Standing horizontally | No |
| Installation elevation above sea level – Nominal | 0 to 500 m |
| Installation elevation above sea level – Maximum | 4000 m (note: Continuous operation at an installation elevation of 500 m to 4,000 m above sea level is possible taking the specified reduction of continuous current into account. Requirements that go beyond this must be arranged with B&R.) |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | III |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Mechanical properties
| Dimensions – Cold plate | 212 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.) |
| Dimensions – Pass-through mounting | 209 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.) |
| Dimensions – Width | 106.5 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.) |
| Dimensions – Height | 317 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.) |
| Weight | Approx. 4.9 kg |
| Module width | 2 |
Accessories
Required accessories (order separately)
| 8BZ0P044000.000-1A | Terminal block sets — Screw clamp terminal block set for ACOPOSmulti 8B0P0220Hx00.00x-1 and 8B0P0440Hx00.00x-1 modules: 1x 8TB4104.202L-10, 1x 8TB4103.202A-00, 1… |
Optional accessories (19)
| 8B0W0079H000.001-1 | Braking resistors — Compact construction; High peak load capacity; Intrinsically safe; IP65 protection; Optimally suited for ACOPOSmulti power supply modules 8… |
| 8B0W0079H000.000-1 | Braking resistors — 8B0W external braking resistors can be used to dissipate braking energy with B&R drive systems. Compact design; High peak load capacity; In… |
| 8B0W0045H000.001-1 | Braking resistors — Compact design; High peak load capacity; Intrinsically safe; IP65 protection; Optimally suited for B&R drive systems Braking resistor, 450… |
| 8BXF001.0000-00 | Fan modules — ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K) |
| 8BXS003.0000-00 | Fuse sets — ACOPOSmulti fuse set: 1x fuse 10 x 38 mm, 30 A, fast-acting |
| X20CA0E61.00100 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m |
| X20CA0E61.00050 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.5 m |
| X20CA0E61.00035 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.35 m |
| X20CA0E61.00030 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.3 m |
| X20CA0E61.00025 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.25 m |
| X20CA0E61.00020 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.2 m |
| 8SCS010.0000-00 | Shield component sets — ACOPOSmulti shield component set: 1x ACOPOSmulti holding plate SK14-20, 1x shield connection clamp SK20 |
| 8SCS009.0000-00 | Shield component sets — ACOPOSmulti shield component set: 1x ACOPOSmulti holding plate SK8-14, 1x shield connection clamp SK14 |
| 8SCS002.0000-00 | Shield component sets — ACOPOSmulti shield component set: 1x clamping plate, 2x clamp D 4-13.5 mm, 2x screws |
| 8SCS000.0000-00 | Shield component sets — ACOPOSmulti shield component set: 1x shield plate 1x type 0, 1x hose clamp, B 9 mm, D 12-22 mm |
| 8TB4104.202L-10 | Terminal blocks — Screw clamp terminal block 4-pin, one-row, pitch: 10.16 mm, label 2: PE L3 L2 L1, coding L: 1010 |
| 8TB4103.202A-00 | Terminal blocks — 3-pin screw clamp terminal block, one-row, pitch: 10.16 mm, label 2: PE RB- RB+, coding A: 000 |
| 8TB2106.2010-00 | Terminal blocks — 6-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively |
| 8B0W0045H000.000-1 | Undefined — 8B0W external braking resistors can be used to dissipate braking energy with B&R drive systems. Compact design; High peak load capacity; In… |
