Cold plate or feed-through mounting Parts

B&R

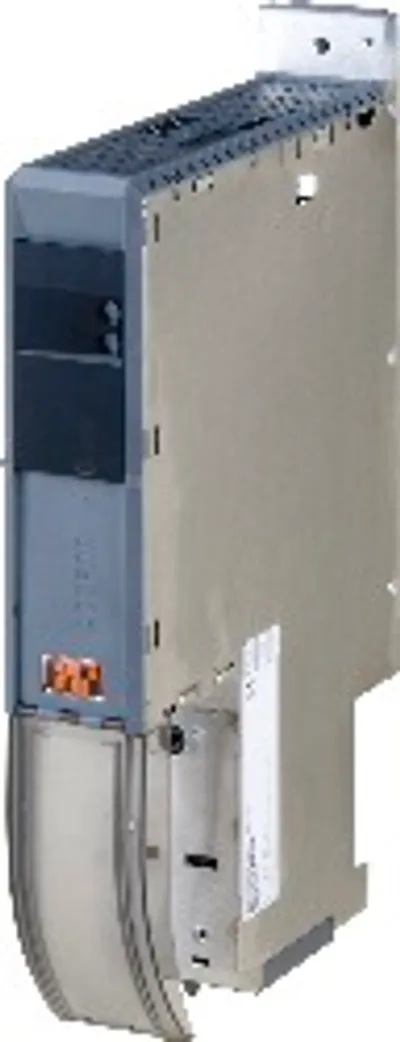

Passive power supply modules act as the central power…

B&R

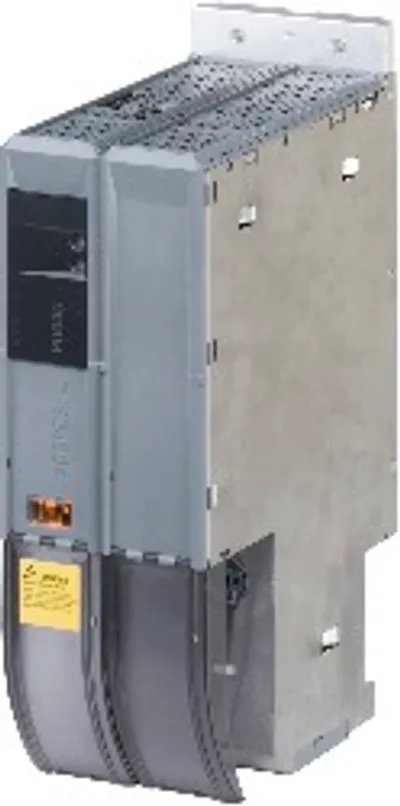

ACOPOSmulti power supply module passive, 22 A, AS, cold plate or pass-through mounting

B&R

ACOPOSmulti power supply module passive, 22 A, AS, cold plate or pass-through mounting, passive motor short circuit brake

B&R

ACOPOSmulti power supply module passive, 44 A, AS, cold plate or pass-through mounting

B&R

ACOPOSmulti power supply module passive, 44 A, AS, cold plate or pass-through mounting, passive motor short circuit brake

Compare Cold plate or feed-through mounting

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Max. chargeable DC bus capacitance depending on mains voltage – 480 VAC	Installed load	Reduction of continuous power depending on mains input voltage – Mains input voltage <3x 400 VAC	Reduction of continuous power depending on installation elevation – Starting at 500 m above sea level	Peak power output (supply)
8B0P0110HC00.000-1	2 mF	Max. 6.7 kVA	10 W/V * (400 V - Mains input voltage)	0.4 kW per 1000 m	12 kW
8B0P0220HC00.000-1	10 mF (note: Up to revision H0: 4 mF)	Max. 15.6 kVA	20 W/V * (400 V - Mains input voltage)	0.8 kW per 1000 m	24 kW
8B0P0220HC00.001-1	10 mF (note: Up to revision H0: 4 mF)	Max. 15.6 kVA	20 W/V * (400 V - Mains input voltage)	0.8 kW per 1000 m	24 kW
8B0P0440HC00.000-1	10 mF (note: Up to revision F0: 4 mF)	Max. 30.4 kVA	40 W/V * (400 V - Mains input voltage)	1.6 kW per 1000 m	48 kW
8B0P0440HC00.001-1	10 mF (note: Up to revision F0: 4 mF)	Max. 30.4 kVA	40 W/V * (400 V - Mains input voltage)	1.6 kW per 1000 m	48 kW

Support – Dynamic node allocation (DNA)	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
Cooling and mounting type	Cold plate or pass-through mounting
Variant – L1, L2, L3, PE	Connector
Variant – PE	M5 threaded bolt
