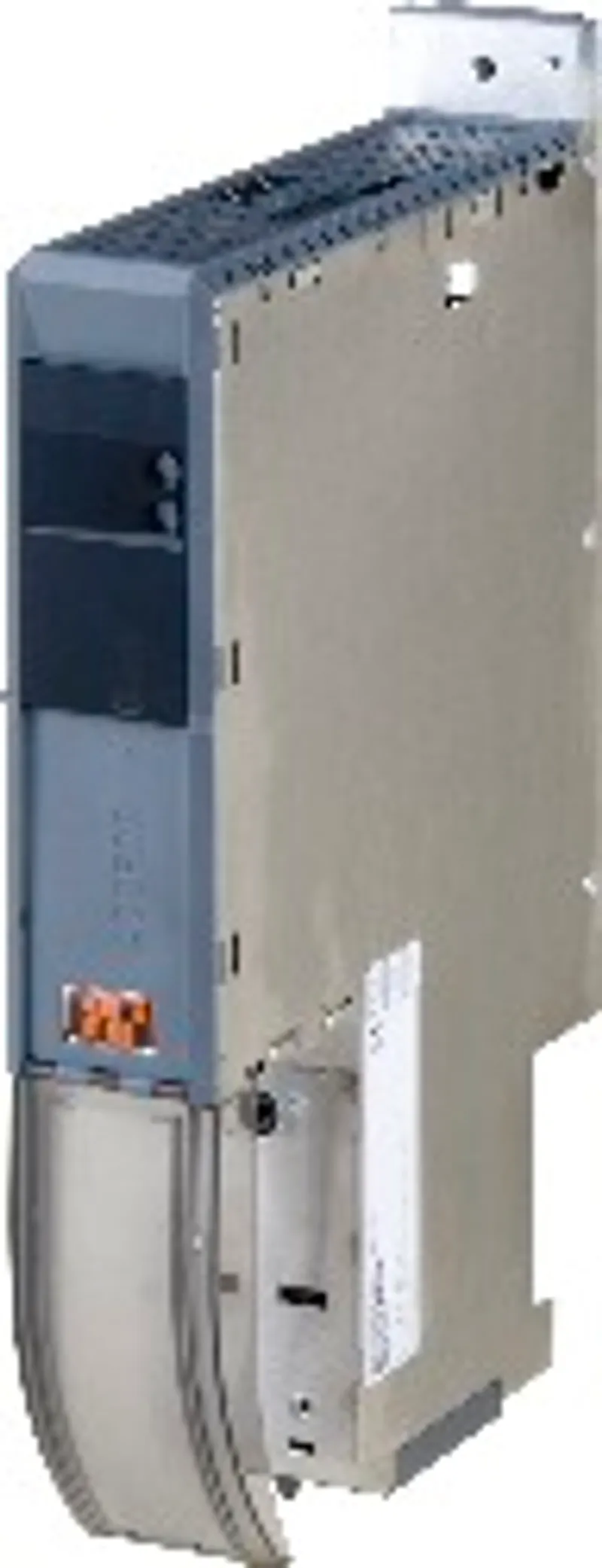

B&R 8B0P0110HC00.000-1

Q: When can 8B0P0110HC00.000-1 be shipped?

8B0P0110HC00.000-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 8B0P0110HC00.000-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 8B0P0110HC00.000-1 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8B0P0110HC00.000-1, subject to availability and destination.

Passive power supply modules act as the central power…

MPN: 8B0P0110HC00.000-1
Category: Cold plate or feed-through mounting

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 8B0P0110HC00.000-1?

Passive power supply modules act as the central power supply for ACOPOSmulti drives and feed the DC bus. They are not subjected to a control loop and therefore cannot provide regeneration.The 8B0P0110HC00.000-1 passive power supply module has an integrated line filter and internal braking resistor. It is also possible to connect an optional external braking resistor. In addition, an interface for connecting 24 VDC is also available. This allows the internal 24 VDC supply to provide an ACOPOSmulti drive system with up to 90 watts of nominal power. This eliminates the need for an 8B0C auxiliary supply module in many applications. The system can start either from external 24 VDC or mains power.

ACOPOSmulti power supply module, passive, 11 A, AS, cold plate or pass-through mounting, 24 V In 1x, integrated line filter

Specifications

General information

Support – Dynamic node allocation (DNA)	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment
B&R ID code	0xDD94
Cooling and mounting type	Cold plate or pass-through mounting

Mains connection

Max. chargeable DC bus capacitance depending on mains voltage – 230 VAC	9 mF
Max. chargeable DC bus capacitance depending on mains voltage – 400 VAC	3 mF
Max. chargeable DC bus capacitance depending on mains voltage – 480 VAC	2 mF
Variant – L1, L2, L3, PE	Connector
Variant – PE	M5 threaded bolt
Variant – Shield connection	No (note: Cables do not have to be shielded up to a total wiring length of 3 m between the line filter and power supply module. Consult B&R when using cable lengths >3 m.)
Terminal connection cross section – With wire end sleeve	0.5 to 6 mm²
Terminal connection cross section – UL/C-UL-US	20 to 6 AWG
Terminal connection cross section – CSA	20 to 6 AWG
Network configurations	TT, TN-S, TN-C-SDelta/Wye with grounded wye neutral" in the USA."> (note: TT and TN power systems are commonly referred to as)
Mains input voltage	3x 208 to 3x 480 VAC ±10%
Frequency	50 / 60 Hz ±4%
Installed load	Max. 6.7 kVA
Power dissipation with continuous power	[2.8 * P² + 0.5 * P + 10] W (note: P ... Continuous power [kW].)
Inrush current at 400 VAC	2 A
Switch-on interval	>120 s
Integrated line filter per EN 61800-3, category C3	Yes
Integrated regeneration choke	No
Regenerative	No
Power factor correction (PFC)	No
Line fuse	Max. 33 A (gG fuses per IEC 60269-1 or Class CC, J, T) ; Max. 27.5 A (circuit breaker per EN 60947-2 or UL 489) (note: The module has product approval per UL 508c and UL 61800-5-1. For product approval per UL 61800-5-1, a mains choke (e.g. 8I0CT016.000-1) must be connected upstream for networks with a short-circuit capacity (SCCR) of 65 kA.)
Terminal cable cross section dimension of shield connection	23 to 35 mm

DC bus connection

Voltage – Nominal	294 to 679 VDC
Reduction of continuous power depending on mains input voltage – Mains input voltage <3x 400 VAC	10 W/V * (400 V - Mains input voltage)
Reduction of continuous power depending on installation elevation – Starting at 500 m above sea level	0.4 kW per 1000 m
Protective measures – Overload protection	Yes
Protective measures – Short-circuit and ground fault protection	No
Continuous power	4 kW (note: Valid under the following conditions: Mains input voltage 3x 400 VAC, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.)
Reduction of continuous power depending on cooling method	No reduction
Peak power output (supply)	12 kW
DC bus capacitance	330 µF
Variant	ACOPOSmulti backplane

24 VDC power supply

Input voltage	25 VDC ±1.6%
Input capacitance	23.5 µF
Max. power consumption	12 W
Variant	ACOPOSmulti backplane

24 VDC In

Input voltage – Minimum	18 VDC
Input voltage – Nominal	24 VDC
Input voltage – Maximum	30 VDC
Protective measures – No-load proof	Yes
Protective measures – Overload-proof	Yes
Protective measures – Short-circuit proof	Yes
Protective measures – Overtemperature protection	Yes
Variant – 24 VDC In, COM	Connector
Terminal connection cross section of input "24 VDC In" – With wire end sleeves	0.2 to 2.5 mm²
Terminal connection cross section of input "24 VDC In" – UL/C-UL-US	30 to 12 AWG
Terminal connection cross section of input "24 VDC In" – CSA	22 to 12 AWG
24 VDC internal system power supply	25 VDC ±1.6% (regulated)
Switch-on threshold	16 V
Max. continuous current	4.0 A
Status indicators	24 V LED
Undervoltage detection	Yes
Overvoltage detection	Yes

Motor holding brake connection

Terminal connection cross section – With wire end sleeve	0.5 to 6 mm²
Terminal connection cross section – UL/C-UL-US	20 to 6 AWG
Terminal connection cross section – CSA	20 to 6 AWG

Braking resistor

Variant – RB+, RB-, PE	Connector (note: Design of the connection for the external braking resistor.)
Variant – Shield connection	Yes (note: Design of the connection for the external braking resistor.)
Protective measures – Overload protection	Yes
Protective measures – Short-circuit and ground fault protection	Yes (with RB+ by externally replaceable melting fuse)
Peak power int./ext.	2 kW / 24 kW (max. 1 s)
Continuous power int./ext.	150 W / 8 kW
Min. braking resistance	25 Ω
Rated current of built-in fuse	15 A (fast-acting) (note: A Littelfuse KLK D 015 fuse must be used.)
Terminal cable cross section dimension of shield connection	23 to 35 mm

Electrical properties

Energy efficiency (IE classification) – Power dissipation relative to continuous apparent power	IE2 (10;25) 0.4% ; IE2 (50;25) 0.5% ; IE2 (10;50) 0.4% ; IE2 (50;50) 0.5% ; IE2 (90;50) 0.7% ; IE2 (10;100) 0.5% ; IE2 (50;100) 0.7% ; IE2 (90;100) 1.3% (note: The IE classification of the module is based on drive losses. This includes components such as EMC filters, etc. Classification is performed at 90% of the frequency and at 100% of the continuous current.)
Energy efficiency (IE classification) – Nominal losses in standby mode	6 W (note: The IE classification of the module is based on drive losses. This includes components such as EMC filters, etc. Classification is performed at 90% of the frequency and at 100% of the continuous current.)
Discharge capacitance	0.4 µF

Operating conditions

Permissible mounting orientations – Hanging vertically	Yes
Permissible mounting orientations – Horizontal, face up	Yes
Permissible mounting orientations – Standing horizontally	No
Installation elevation above sea level – Nominal	0 to 500 m
Installation elevation above sea level – Maximum	4000 m (note: Continuous operation at an installation elevation of 500 m to 4,000 m above sea level is possible taking the specified reduction of continuous current into account. Requirements that go beyond this must be arranged with B&R.)
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Mechanical properties

Dimensions – Cold plate	212 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.)
Dimensions – Pass-through mounting	209 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.)
Dimensions – Width	53.5 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.)
Dimensions – Height	317 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.)
Weight	3.5 kg
Module width	1

Accessories

Required accessories (order separately)

8BZ0P011000.000-1A

Terminal block sets — Screw clamp terminal block set for ACOPOSmulti 8B0P0110Hx00.00x-1 modules: 1x 8TB3104.206F-10, 1x 8TB3103.202A-10, 1x 8TB2106.2010-00

Optional accessories (18)

8B0W0079H000.001-1	Braking resistors — Compact construction; High peak load capacity; Intrinsically safe; IP65 protection; Optimally suited for ACOPOSmulti power supply modules 8…
8B0W0079H000.000-1	Braking resistors — 8B0W external braking resistors can be used to dissipate braking energy with B&R drive systems. Compact design; High peak load capacity; In…
8B0W0045H000.001-1	Braking resistors — Compact design; High peak load capacity; Intrinsically safe; IP65 protection; Optimally suited for B&R drive systems Braking resistor, 450…
8BXF001.0000-00	Fan modules — ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K)
X20CA0E61.00100	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m
X20CA0E61.00050	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.5 m
X20CA0E61.00035	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.35 m
X20CA0E61.00030	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.3 m
X20CA0E61.00025	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.25 m
X20CA0E61.00020	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.2 m
8SCS010.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x ACOPOSmulti holding plate SK14-20, 1x shield connection clamp SK20
8SCS009.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x ACOPOSmulti holding plate SK8-14, 1x shield connection clamp SK14
8SCS002.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x clamping plate, 2x clamp D 4-13.5 mm, 2x screws
8SCS000.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x shield plate 1x type 0, 1x hose clamp, B 9 mm, D 12-22 mm
8TB3104.206F-10	Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 7.62 mm, label 6: PE L3 L2 L1, coding L: 0101
8TB3103.202A-10	Terminal blocks — 3-pin screw clamp terminal block, 1-row, pitch: 7.62 mm, label 2: PE RB- RB+, coding A: 000
8TB2106.2010-00	Terminal blocks — 6-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
8B0W0045H000.000-1	Undefined — 8B0W external braking resistors can be used to dissipate braking energy with B&R drive systems. Compact design; High peak load capacity; In…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file STEP 8B0P0110HC00.000-1ZIP · 115 KB · 1.00 (01/29/2014)
