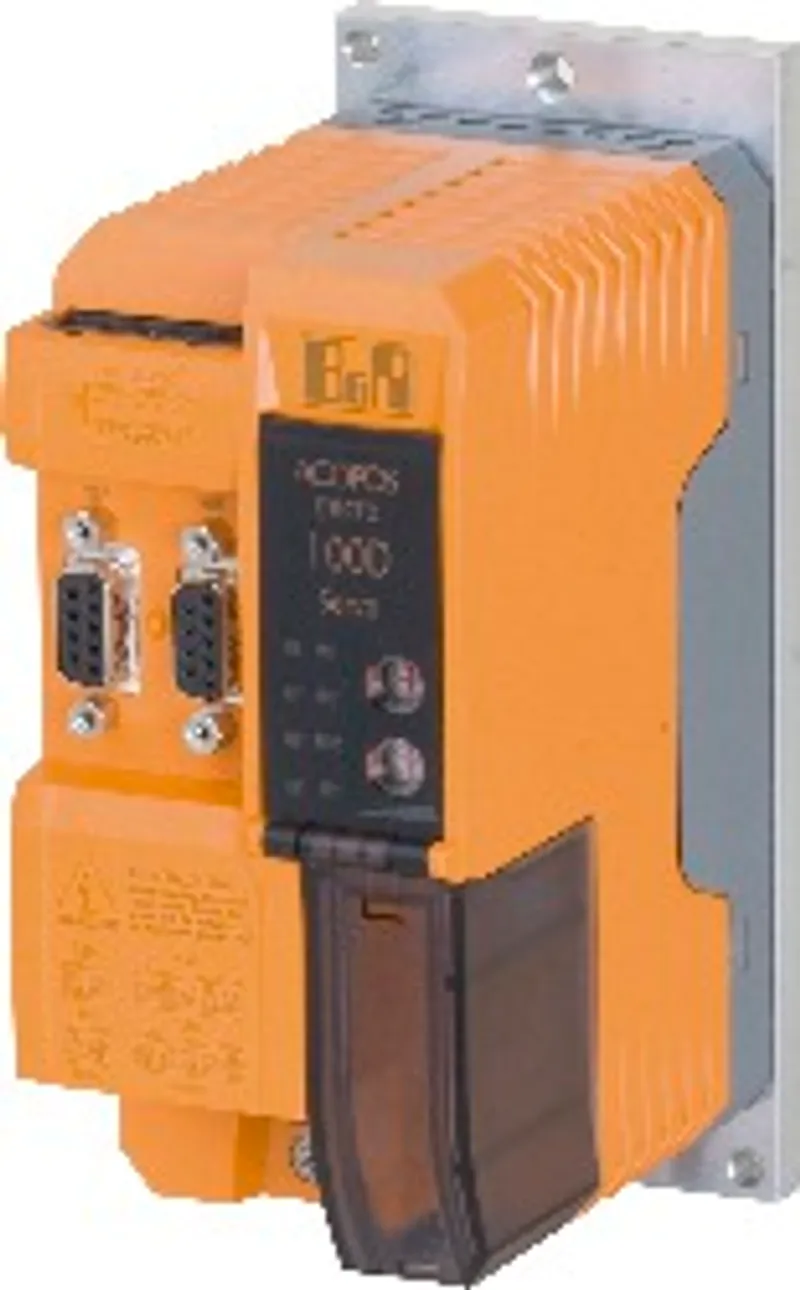

B&R 80VD100PD.C033-01
Inverter module, connection for two servo motors with SSI…
- MPN
- 80VD100PD.C033-01
- Category
- Inverter modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 80VD100PD.C033-01?
Control for 2 servo motors
2 SSI absolute encoder interface
2 trigger inputs
Connection for motor holding brake
Enable input
ACOPOSmicro inverter module, POWERLINK interface, 2x SSI absolute encoder, 24-64 VDC ±25% power supply, 2 motor connections, 8 A continuous current, 2 digital inputs 24 VDC, sink, can be used as trigger inputs, 1 digital output 24 VDC, 1 A, order terminal blocks separately!
Specifications
Short description
| Inverter module | Connection for two servo motors with SSI absolute encoder |
General information
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – Module temperature / Cooling unit temperature | Yes, using software |
| Diagnostics – Motor status | Yes, using LED status indicator and software |
| Diagnostics – POWERLINK | Yes, using LED status indicator |
| Electrical isolation – CPU - 24 VDC power supply | No |
| Electrical isolation – CPU - Power supply | Yes |
| Electrical isolation – CPU - Motor connection | Yes |
| Electrical isolation – CPU - Digital inputs | Yes |
| Electrical isolation – CPU - Trigger inputs | Yes |
| Electrical isolation – CPU - Enable inputs | Yes |
| Electrical isolation – CPU - Encoder | No |
| Electrical isolation – CPU - Motor holding brake | No |
| Electrical isolation – CPU - POWERLINK | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
| B&R ID code | 0xE4DC |
| Status indicators | POWERLINK, operating state, module status, motor information |
24 VDC power supply
| Power consumption – CPU | Max. 8 W (note: Includes the enable input) |
| Input voltage | 24 VDC ±25% |
| Voltage monitoring | Yes |
Power supply
| Power consumption – Idle (no motor powered) | 0.5 W |
| Power consumption – Continuous power consumption | 1.31 kW (note: Valid under the following conditions: DC bus voltage 80 VDC, switching frequency 5 kHz, 45°C ambient temperature.) |
| Power dissipation depending on switching frequency – Switching frequency 5 kHz | [0.24×I M1 ² + 0.216×I M1 + 0.4] W + [0.24×I M2 ² + 0.216×I M2 + 0.4] W (note: I M1 ... Mean value of the currents on the axis 1 motor connection [A]. I M2 ... Mean value of the currents on the axis 2 motor connection [A].) |
| Power dissipation depending on switching frequency – Switching frequency 10 kHz | [0.24×I M1 ² + 0.215×I M1 + 0.8] W + [0.24×I M2 ² + 0.215×I M2 + 0.8] W (note: I M1 ... Mean value of the currents on the axis 1 motor connection [A]. I M2 ... Mean value of the currents on the axis 2 motor connection [A].) |
| Power dissipation depending on switching frequency – Switching frequency 20 kHz | [0.24×I M1 ² + 0.214×I M1 + 1.6] W + [0.24×I M2 ² + 0.214×I M2 + 1.6] W (note: I M1 ... Mean value of the currents on the axis 1 motor connection [A]. I M2 ... Mean value of the currents on the axis 2 motor connection [A].) |
| Power dissipation depending on switching frequency – Switching frequency 40 kHz | [0.24×I M1 ² + 0.213×I M1 +3.2] W + [0.24×I M2 ² + 0.213×I M2 +3.2] W (note: I M1 ... Mean value of the currents on the axis 1 motor connection [A]. I M2 ... Mean value of the currents on the axis 2 motor connection [A].) |
| Input voltage | 24 to 64 VDC ±25% |
| Inrush current | Max. 10 A |
| Inrush current limiting | Yes, PTC (min. 9 Ω), is bypassed during operation by means of relay contact. |
| Undervoltage cutoff | <18 VDC |
| Overvoltage cutoff | >95 VDC |
| Voltage measurement | Yes |
| Line protection | Must occur externally |
| Reverse polarity protection | Yes |
Motor connection
| Quantity | 2 |
| Nominal current | Up to 20 kHz: 8 A RMS / 11.3 A Peak; At 40 kHz and greater than 45°C: 6.5 A RMS / 9.2 A Peak |
| Max. current/motor | 10.6 A RMS / 15 A Peak |
| Max. current/module | 30 A Peak |
| Nominal switching frequency | 5 kHz |
| Possible switching frequencies | 5 / 10 / 20 / 40 kHz (note: 40 kHz possible starting with hardware revision C3 and ACP10 V3.150) |
| Max. motor line length | 25 m |
| Max. output frequency | 598 HzPower unit: Limit speed exceeded")."> |
| Controller frequency | 20 kHz |
| DC bus capacitance | 940 µF |
Motor holding brake connection
| Can be used for – Axis 1 | Yes |
| Can be used for – Axis 2 | No |
| Switching frequency – Resistive load | 100 Hz |
| Switching frequency – Inductive load | See section "Switching inductive loads". |
| Protective measures – Overload and short-circuit protection | Yes |
| Protective measures – Open-circuit monitoring | Yes |
| Protective measures – Undervoltage monitoring | Yes |
| Quantity | 1 |
| Nominal voltage | 24 VDC |
| Continuous current per connection | 1 A |
| Max. internal resistance | 0.3 Ω |
| Response threshold for open-circuit monitoring | <100 mA |
| Response threshold for undervoltage monitoring | ≤23.5 V |
Interfaces
| POWERLINK – Variant | Female RJ45 connector |
| POWERLINK – Electrical isolation | Yes |
Encoder inputs
| Encoder power supply – Output voltage | 5 V ±5% |
| Encoder power supply – Load capacity | 250 mA |
| Synchronous serial interface – Signal transmission | RS485 |
| Synchronous serial interface – Data transfer rate | Configurable (100 to 400 kbit/s) |
| Quantity | 2 |
| Type | SSI absolute encoder |
| Max. encoder cable length | 25 m |
Enable inputs
| Switching threshold – Low | <5 VDC |
| Switching threshold – High | >15 VDC |
| Switching delay at nominal input voltage – Maximum | 500 ms (Rev. < E0: 551 ms) |
| Switching delay at nominal input voltage – Maximum | 500 ms |
| Quantity | 1 |
| Nominal voltage | 24 VDC |
| Input voltage | 24 VDC ±25% |
| Input current at nominal voltage | Typ. 60 mA |
| Input circuit | Sink |
| Insulation voltage between input and bus | 500 V eff |
| Input capacitance | 10 nF (Rev. < E0: 100 µF) |
Digital inputs / Trigger inputs
| Input voltage – Nominal | 24 VDC |
| Input voltage – Maximum | 30 VDC |
| Switching threshold – Low | <5 VDC |
| Switching threshold – High | >15 VDC |
| Switching delay – Rising edge | [Instant recording] Typ. 52 µs |
| Switching delay – Falling edge | [Instant recording] Typ. 53 µs |
| Electrical isolation – Input - ACOPOS | Yes, 500 V eff |
| Electrical isolation – Input - Input | Yes, 500 V eff |
| Quantity | 2 |
| Additional functions | Can be used as trigger input |
| Input circuit | Sink |
| Input current at nominal voltage | Approx. 7.5 mA |
| Input resistance | Approx. 3.2 kΩ |
| Modulation compared to ground potential | Max. ±38 V |
Operating conditions
| Mounting orientation – Horizontal | No |
| Mounting orientation – Vertical | Yes |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 45°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 55°C |
| Relative humidity – Operation | 5 to 85%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Dimensions – Width | 65 mm (note: Without heat spreader) |
| Dimensions – Height | 134 mm (note: Without heat spreader) |
| Dimensions – Depth | 95 mm (note: Without heat spreader) |
| Note | Order terminal blocks and cables separately! |
| Mounting/Cooling | Screw mounting with heat spreader on mounting plate or cold-plate. |
| Weight | 750 g |
| Backplane | Always mount on conductive and earthed backplane. |
Accessories
Required accessories (order separately)
| 80XVD100PD.C0-01B | Terminal block sets — Cage clamp terminal block set for ACOPOSmicro modules 80VD100PD.xxxx-01: 1x 0TB1110.8110, 1x 0TB2105.9121-01, 1x 0TB2104.4121-01, 1x 0TB210… |
| 80XVD100PD.C0-01A | Terminal block sets — Screw clamp terminal block set for ACOPOSmicro modules 80VD100PD.xxxx-01: 1x 0TB1110.8010, 1x 0TB2105.9021, 1x 0TB2104.4021, 1x 0TB2104.402… |
Optional accessories (5)
| 80XBR0055.010-11 | Braking resistor — Braking resistor for ACOPOSmicro 5.5 Ω 100 W |
| 80XSC0000.00-10 | Hose clamps — Accessory for ACOPOSmicro: 10x hose clamp, B 9 mm, D 8-12 mm |
| 80XSC0000.00-01 | Hose clamps — Accessory for ACOPOSmicro: 1x hose clamp, B 9 mm, D 8-12 mm |
| 0TB1310.8110 | Terminal blocks — Accessory terminal block, 3x 10-pin, cage clamp terminal block 1.5 mm², protected against vibration by the screw flange, with labeling |
| 0TB1310.3100 | Terminal blocks — Accessory terminal block, 3x 10-pin, cage clamp terminal block, 1.5 mm², protected against vibration by the screw flange |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
