Inverter modules Parts

B&R

Inverter module, connection for two servo motors with…

B&R

Inverter module, connection for two servo motors with…

B&R

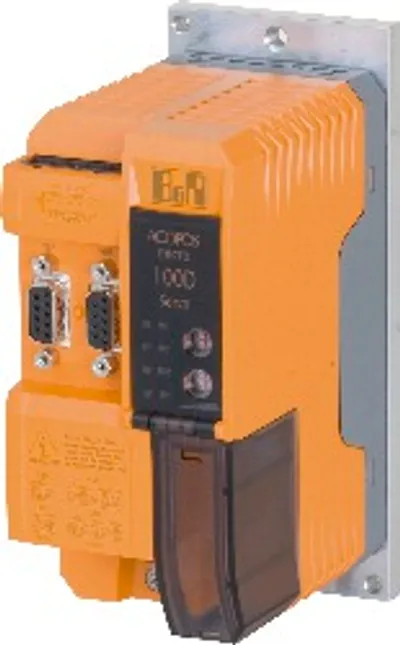

Inverter module, connection for two servo motors with SSI…

B&R

Inverter module, connection for one servo motor with SinCos…

B&R

Inverter module, connection for one servo motor with SSI…

B&R

Inverter module, connection for 2 servo motors with resolver

B&R

Inverter module, connection for two servo motors with EnDat…

B&R

Inverter module, connection for two servo motors with EnDat…

B&R

Inverter module, connection for 2 servo motors with resolver

B&R

Inverter module, connection for 2 servo motors with LinMot…

B&R

Inverter module, connection for 1 servo motor with EnDat…

B&R

Inverter module, connection for 1 servo motor with resolver

Compare Inverter modules

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Can be used for – Axis 2	Switching delay at nominal input voltage – Maximum	Input capacitance	Weight	Type
80VD100PD.C144-01	No	500 ms (Rev. < D0: 551 ms)	10 nF (Rev. < D0: 100 µF)	750 g	—
80VD100PD.C088-01	No	500 ms (Rev. < E0: 551 ms)	10 nF (Rev. < E0: 100 µF)	750 g	SinCos encoder
80VD100PD.C033-01	No	500 ms (Rev. < E0: 551 ms)	10 nF (Rev. < E0: 100 µF)	750 g	SSI absolute encoder
80VD100PS.C08X-01	No	500 ms (Rev. < D0: 1082 ms)	10 nF (Rev. < D0: 100 µF)	700 g	SinCos encoder
80VD100PS.C03X-01	-	500 ms (Rev. < D0: 1082 ms)	10 nF (Rev. < D0: 100 µF)	700 g	SSI absolute encoder
80VD100PD.C022-14	Yes	500 ms (Rev. < F0: 551 ms)	10 nF (Rev. < F0: 100 µF)	750 g	—
80VD100PD.C000-01	No	500 ms (Rev. < G0: 551 ms)	10 nF (Rev. < G0: 100 µF)	750 g	EnDat 2.2
80VD100PD.C000-14	Yes	500 ms (Rev. < D0: 551 ms)	10 nF (Rev. < D0: 100 µF)	755 g	EnDat 2.2
80VD100PD.C022-01	No	500 ms (Rev. < G0: 551 ms)	10 nF (Rev. < G0: 100 µF)	750 g	—
80VD100PD.C188-01	No	500 ms (Rev. < D0: 551 ms)	10 nF (Rev. < D0: 100 µF)	780 g	LinMot ®

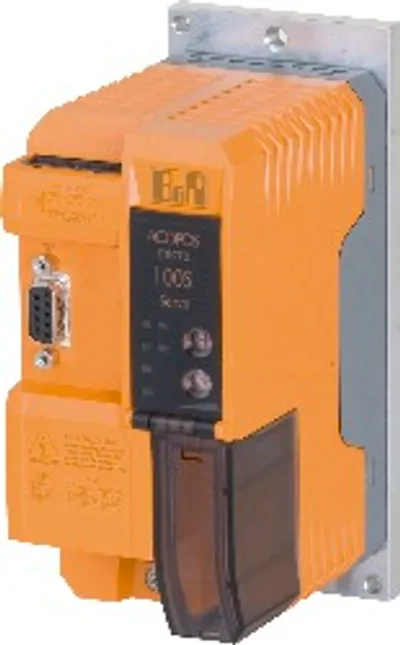

80VD100PS.C00X-01	-	500 ms (Rev. < F0: 1082 ms)	10 nF (Rev. < F0: 100 µF)	750 g	EnDat 2.2
80VD100PS.C02X-01	-	500 ms (Rev. < F0: 1082 ms)	10 nF (Rev. < F0: 100 µF)	700 g	—

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Module temperature / Cooling unit temperature	Yes, using software
Diagnostics – Motor status	Yes, using LED status indicator and software
Diagnostics – POWERLINK	Yes, using LED status indicator
Electrical isolation – CPU - 24 VDC power supply	No
Electrical isolation – CPU - Power supply	Yes
Electrical isolation – CPU - Motor connection	Yes
Electrical isolation – CPU - Digital inputs	Yes
