B&R 80CM20002.21-01
Motor cable, length 20 m, 5x 0.75 mm², 2x 0.5 mm²
- MPN
- 80CM20002.21-01
- Category
- Motor cables with brake
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 80CM20002.21-01?

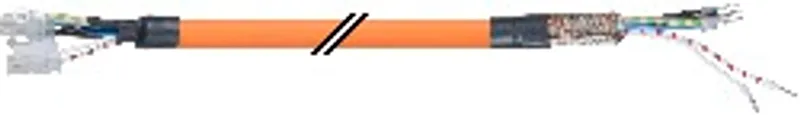

Motor cable, length 20 m, 5x 0.75 mm², 2x 0.5 mm², for stepper motors with brake, 4-pin and 2-pin connectors on the motor side, can be used in cable drag chains, UL listed
Specifications
General information
| Cable cross section | 5x 0.75 mm² + 1x 2x 0.5 mm² |
| Durability | Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils |
| Certification | UL AWM style 20234, 80°C, 1000 V, E63216 and CSA AWM I/II A/B, 90°C, 1000 V, FT2 LL46064 |
Cable construction
| Power lines – Quantity | 5 |
| Power lines – Wire insulation | Special thermoplastic material |
| Power lines – Wire colors | Black, brown, blue, gray, yellow/green |
| Power lines – Variant | Tinned copper stranded wire |
| Power lines – Cross section | 0.75 mm² |
| Power lines – Shield | No |
| Power lines – Stranding | No |
| Signal line – Quantity | 2 |
| Signal line – Wire insulation | Special thermoplastic material |
| Signal line – Wire colors | White, white/red |
| Signal line – Variant | Tinned copper stranded wire |
| Signal line – Cross section | 0.5 mm² |
| Signal line – Shield | Individually shielded in pairs, tinned copper braiding, optical coverage > 85% and foil shield |
| Signal line – Stranding | White with white/red |
| Outer jacket – Material | PUR |
| Outer jacket – Color | Orange, similar to RAL 2003 flat |
| Outer jacket – Labeling | B&R 5x0,75+1x2x0,5 FLEX UL AWM STYLE 20234 80°C 1000 V E63216 CSA AWM I/II A/B 90°C 1000 V FT2 LL46064 |
| Cable stranding | With filler elements and foil shield |
| Cable shield | Tinned copper braiding, optical coverage > 85% and foil shield |
Electrical properties
| Test voltage – Wire - Wire | 3 kV |
| Test voltage – Wire - Shield | 3 kV |
| Conductor resistance – Power lines | ≤29 Ω/km |
| Conductor resistance – Signal line | ≤39 Ω/km |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Wall mounting | 13 A |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in conduit or cable duct | 11.5 A |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in cable tray | 13.5 A |
| Insulation resistance | >200 MΩ/km |
Ambient conditions
| Temperature – Moving | -10 to 70°C |
| Temperature – Static | -20 to 90°C |
Mechanical properties
| Dimensions – Length | 20 m |
| Dimensions – Diameter | 10.8 mm ±0.4 mm |
| Bend radius – Single bend | >34 mm |
| Bend radius – Moving | ≥85 mm |
| Drag chain data – Acceleration | <60 m/s² |
| Drag chain data – Flex cycles | ≥3,000,000 (note: At an ambient temperature of 20°C and bend radius of 125 mm.) |
| Drag chain data – Velocity | ≤4 m/s |
| Weight | 0.26 kg/m |
