B&R 80CM02002.21-01
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Motor cables with brake |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.26 kg |
Shipping & availability
When can 80CM02002.21-01 be shipped?
80CM02002.21-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 80CM02002.21-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 80CM02002.21-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 80CM02002.21-01, subject to availability and destination.

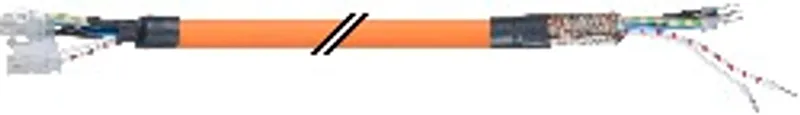

Motor cable, length 2 m, 5x 0.75 mm², 2x 0.5 mm², for stepper motors with brake, 4-pin and 2-pin connectors on the motor side, can be used in cable drag chains, UL listed
Specifications
Specifications
| Cable cross section | 5x 0.75 mm² + 1x 2x 0.5 mm² |
| Durability | Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils |
| Certification | UL AWM style 20234, 80°C, 1000 V, E63216 and CSA AWM I/II A/B, 90°C, 1000 V, FT2 LL46064 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| Quantity | 2 |
| Wire insulation | Special thermoplastic material |
| Wire colors | White, white/red |
| Variant | Tinned copper stranded wire |
| Cross section | 0.5 mm² |
| Shield | Individually shielded in pairs, tinned copper braiding, optical coverage > 85% and foil shield |
| Stranding | White with white/red |
| Cable stranding | With filler elements and foil shield |
| Cable shield | Tinned copper braiding, optical coverage > 85% and foil shield |
| Material | PUR |
| Color | Orange, similar to RAL 2003 flat |
| Labeling | B&R 5x0,75+1x2x0,5 FLEX UL AWM STYLE 20234 80°C 1000 V E63216 CSA AWM I/II A/B 90°C 1000 V FT2 LL46064 |
| Wire - Wire | 3 kV |
| Wire - Shield | 3 kV |
| Power lines | ≤29 Ω/km |
| Signal line | ≤39 Ω/km |
| Insulation resistance | >200 MΩ/km |
| Wall mounting | 13 A |
| Installed in conduit or cable duct | 11.5 A |
| Installed in cable tray | 13.5 A |
| Moving | ≥85 mm |
| Static | -20 to 90°C |
| Length | 2 m |
| Diameter | 10.8 mm ±0.4 mm |
| Single bend | >34 mm |
| Acceleration | <60 m/s² |
| Flex cycles | ≥3,000,000 |
| Velocity | ≤4 m/s |
| Weight | 0.26 kg/m |
