B&R 80CM00501.26-01
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Motor cables M12 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 80CM00501.26-01 be shipped?
80CM00501.26-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 80CM00501.26-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 80CM00501.26-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 80CM00501.26-01, subject to availability and destination.

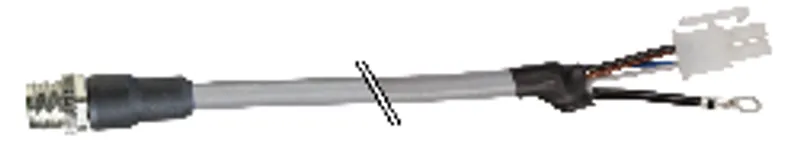

Motor cable, length 0.5 m, 5x 0.34 mm², 4-pin male Molex connector on the motor side, M12 connector on the drive side, can be used in cable drag chains, UL listed
Specifications
Specifications
| Cable cross section | 5x 0.34 mm² |
| Quantity | 5 |
| Wire insulation | PVC |
| Wire colors | Black, brown, blue, gray, white |
| Cross section | 0.34 mm² |
| Shield | Yes |
| Stranding | Yes |
| Cable stranding | With filler elements and foil shield |
| Cable shield | Tinned copper braiding, optical coverage >85% and foil shield |
| Material | PUR/PVC |
| Nominal current | Max. 4 A / contact |
| Connection voltage | Max. 60 V AC/DC |
| Moving | -10 to 70°C |
| Static | -20 to 90°C |
| Length | 0.5 m |
| Diameter | 6.4 mm ±0.2 mm |
| Bend radius | ≥10x outer diameter |
| Acceleration | 5 m/s² |
| Flex cycles | Max. 2.5 million |
| Velocity | 2 m/s |
| M12 | 0.6 Nm |
