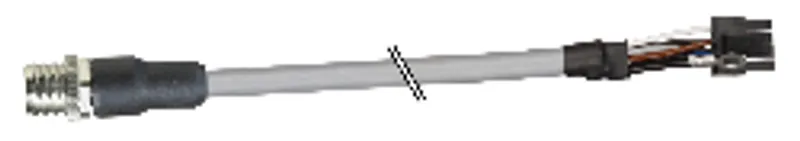

B&R 80CM00703.26-01

Incremental encoder cable, length 0.7 m, 5x 0.34 mm²

MPN: 80CM00703.26-01
Category: Inc. encodercables M12

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 80CM00703.26-01?

Incremental encoder cable, length 0.7 m, 5x 0.34 mm², 8-pin male Molex connector on the motor side, M12 connector on the drive side, can be used in cable drag chains, UL listed

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Cable cross section	5x 0.34 mm²

Cable construction

Power lines – Quantity	5
Power lines – Wire insulation	PVC
Power lines – Wire colors	Black, brown, blue, gray, white
Power lines – Cross section	0.34 mm²
Power lines – Shield	Yes
Power lines – Stranding	Yes
Outer jacket – Material	PUR/PVC
Cable stranding	With filler elements and foil shield
Cable shield	Tinned copper braiding, optical coverage >85% and foil shield

Electrical properties

Nominal current	Max. 4 A / contact
Connection voltage	Max. 60 V AC/DC

Ambient conditions

Temperature – Moving	-10 to 70°C
Temperature – Static	-20 to 90°C

Mechanical properties

Dimensions – Length	0.7 m
Dimensions – Diameter	6.4 mm ±0.2 mm
Drag chain data – Acceleration	Max. 5.0 m/s 2
Drag chain data – Flex cycles	>2.5 million
Drag chain data – Velocity	Max. 2.0 m/s
Torque for connections – M12	0.6 Nm
Bend radius	≥10x outer diameter

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet inc. encoder cable M12PDF · 213 KB · 1.21 (01/09/2025) - EN
