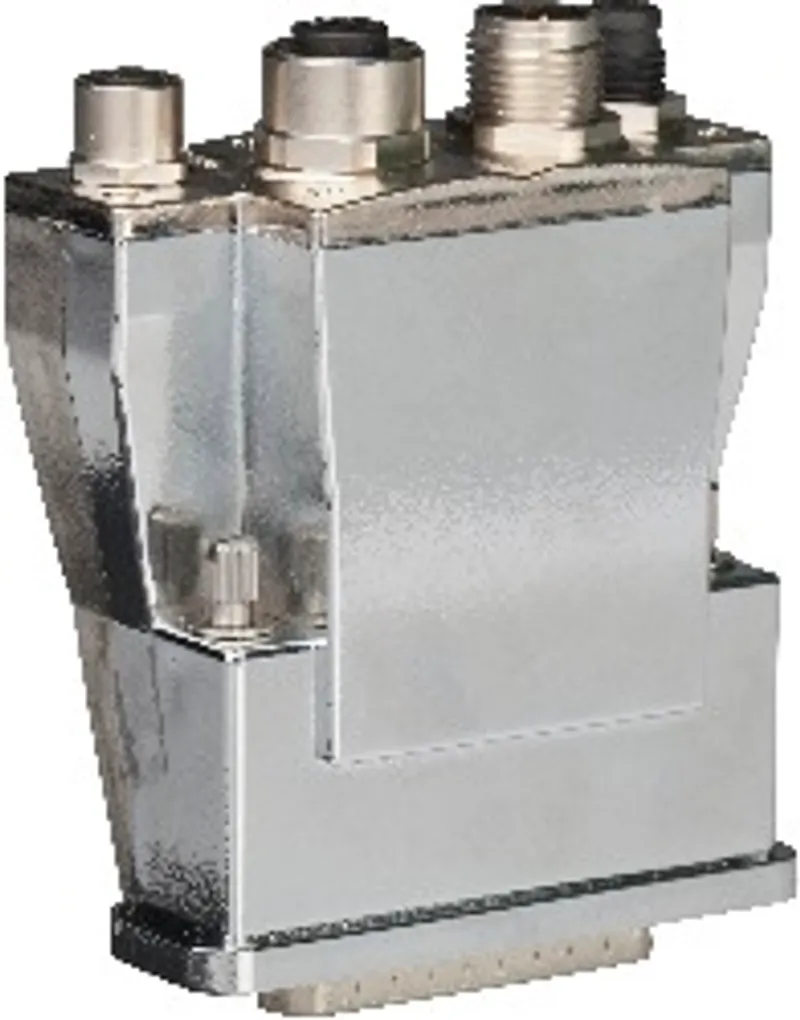

B&R 7XV124.50-61

Name: B&R 7XV124.50-61
Brand: B&R
SKU: 7XV124.50-61

MPN: 7XV124.50-61 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	XV124 valve connections
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	131 kg

Shipping & availability

When can 7XV124.50-61 be shipped?

7XV124.50-61 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 7XV124.50-61 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 7XV124.50-61 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7XV124.50-61, subject to availability and destination.

Remote valve terminal connection, 24 digital outputs, 0.1 A, 24 VDC, for 25-pin DSUB multipin connector, GND pin 25, X2X Link, electrically isolated, IP67 protection

Specifications

B&R ID code	0xA366
Status LED	Yes (color / blink code) 24 VDC OUT power supply (DCOK LED) = Yes (color / blink code)
Status indicators	Operating status and power supply
Power supply	M8
X2X Link	Yes, using software
Overload	Yes, using LED and software (outputs)
Internal I/O	Max. 1.5 W (without load)
X2X Link power supply	Max. 0.75 W
Digital outputs - 24 VDC X2X, OUT power supply	No
X2X Link - 24 VDC X2X, OUT power supply	Yes
X2X Link - Digital outputs	Yes
Remote valve terminal connection for 25-pin DSUB multi-pin connection	24 valves
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	In preparation
ATEX	Zone 2, II 3G Ex nA IIA T5 Gc IP67, Ta = 0 - Max. 60°C TÜV 05 ATEX 7201X
UL	cULus E115267 Industrial control equipment
Bus connection	M12
GND pin	25
Variant	M12
Type	High-side driver (source)
Switching voltage	24 VDC ±25%
Total nominal current	2.4 A
Output circuit	Source
Output protection	Protected against short circuit, overload and overtemperature
0 → 1	Typ. 100 μs / max. 150 μs
1 → 0	Typ. 125 μs / max. 200 μs
Max. output current	0.1 A
Max. switching frequency	100 Hz
Horizontal	Yes
Vertical	Yes
Degree of protection per EN 60529	IP67
Operation	5 to 95%, non-condensing
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing
Note	Order male/female M12/M8 connectors separately
Installation	25-pin DSUB, screw mounting, 4-40 UNC
Weight	131 g
Module dimensions including mounting plates	67 x 66 x 30 mm (H x W x D)
