XV124 valve connections Parts
Compare XV124 valve connections
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Diagnostics – Overload | Bus connection | GND pin | Weight | Module dimensions including mounting plates |
|---|---|---|---|---|---|
| 7XV124.50-11 | Yes, using software (outputs) | 11-pin | 25 | 56 g | 63 x 59 x 20 mm (H x W x D) |
| 7XV124.50-12 | Yes, using software (outputs) | 11-pin | 13 | 56 g | 63 x 59 x 20 mm (H x W x D) |

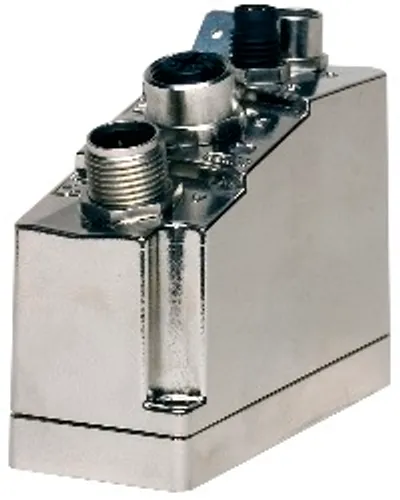

| 7XV124.50-51 | Yes, using LED and software (outputs) | M12 | 25 | 125 g | 62 x 70 x 30 mm (H x W x D) |
| 7XV124.50-61 | Yes, using LED and software (outputs) | M12 | 25 | 131 g | 67 x 66 x 30 mm (H x W x D) |

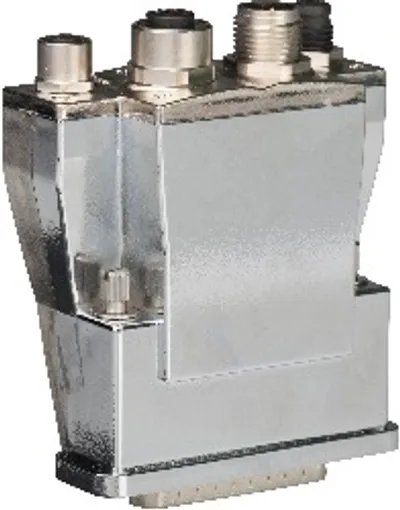

| 7XV124.50-62 | Yes, using LED and software (outputs) | M12 | 13 | 131 g | 67 x 66 x 30 mm (H x W x D) |
Common to all listed parts
| Diagnostics – X2X Link | Yes, using software |
| Electrical isolation – Digital outputs - 24 VDC X2X, OUT power supply | No |
| Electrical isolation – X2X Link - 24 VDC X2X, OUT power supply | Yes |
| Electrical isolation – X2X Link - Digital outputs | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
