Home / B&R / Power Panel T50 mobile / B&R 6PMT50.0502-19B
B&R

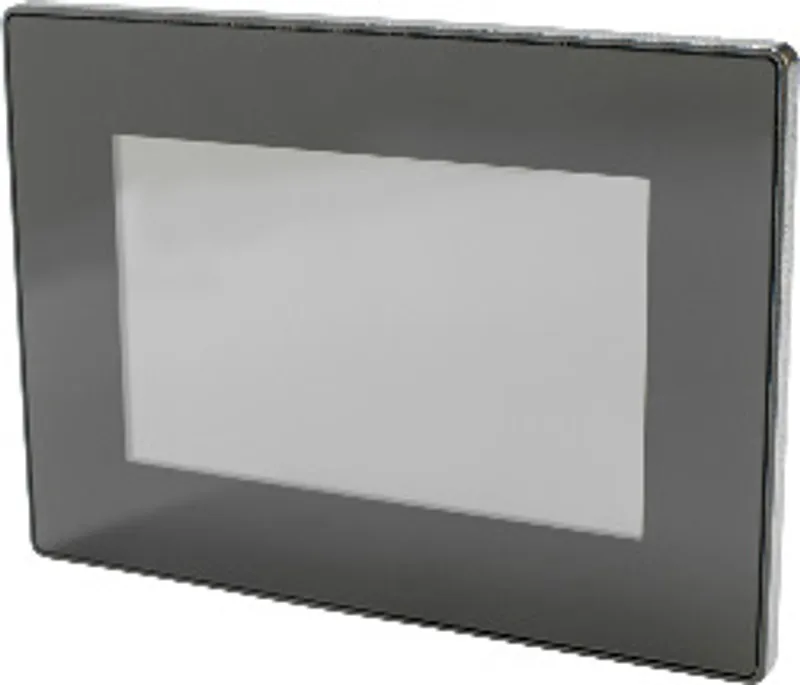

B&R 6PMT50.0502-19B

Power Panel T50 mobile, 5.0", glass front

MPN
6PMT50.0502-19B
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 6PMT50.0502-19B?

Power Panel T50 mobile, 5.0", glass front, 1x Ethernet. CPU and memory: 800 MHz dual core (ARM Cortex-A9), 1 GB RAM, 512 MB onboard flash drive. Display and touch screen: 5.0", 800 x 480 (WVGA) resolution, projected capacitive touch screen, multi-touch support, glass front with black frame, landscape and portrait format configurable with software. Interfaces: 1x Ethernet 10/100 Mbit/s, 1x USB 2.0 on multi-header. Client software: Integrated service page, VNC client, embedded web browser.

Specifications

General information

Certifications – UN ECE-R10Yes
Certifications – CEYes
Certifications – UKCAYes
Certifications – CRA (Cyber Resilience Act)In preparation
Certifications – DNVTemperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCSYes
Certifications – ClassNKYes
Certifications – LRENV4
Certifications – KRYes
Certifications – ABSYes
Certifications – BVEC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – RINAYes
B&R ID code0xF9B7
Status LED1x red/green; configurable, dimmable; 2x red/green/blue; configurable, dimmable
BuzzerYes
Brightness sensorYes

Controller

Processor – TypeARM Cortex-A9, dual core
Processor – Clock frequency800 MHz
Operating systemPPT50 system
Flash512 MB
DRAM1 GB

Display

Viewing angles – HorizontalDirection L / Direction R = 70°
Viewing angles – VerticalDirection U = 50° / Direction D = 70°
Backlight – TypeLED
Backlight – BrightnessTyp. 400 cd/m 2
Backlight – Brightness (dimmable)Yes
Backlight – Half-brightness time30,000 h
Touch screen – TypeMulti-touch
Touch screen – TechnologyPCT (projected capacitive touch)
Touch screen – SurfaceGlass, chemically hardened (6H)
TypeTFT color
Diagonal5.0"
Colors16.7 million (RGB, 8 bits per channel)
ResolutionWVGA, 800 x 480 pixels
ContrastTyp. 600:1
Screen rotationYes

Interfaces

Interface IF1 – TypeEthernet
Interface IF1 – VariantM12, D-coded
Interface IF1 – Transfer rate10/100 Mbit
Interface IF3 – TypeUSB 2.0
Interface IF3 – VariantOn multi-header
Interface IF3 – Current-carrying capacityMax. 0.5 A

Digital inputs

Input filter – HardwareApprox. 20 ms
Input filter – SoftwareNo
Quantity8
Nominal voltage12 / 24 VDC
Input voltage9 to 32 VDC
Input circuitSink
Input currentTyp. 1.3 mA (at 12 VDC) Typ. 2.5 mA (at 24 VDC)
Input resistanceTyp. 9 kΩ
Switching thresholdTyp. 50% of the supply voltage

Digital outputs

Quantity4
VariantSource (current-sourcing FET)
Nominal voltage12 / 24 VDC
Nominal output currentMax. 0.5 A permissible continuous current
Output protectionShutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads
Diagnostic statusStatus display via read-back measurement
R DS(on)Max. 100 mΩ
Residual voltage<0.1 V at 0.5 A nominal current
Additional functionsOverload shutdown / short-circuit shutdown: Yes (for each channel); must be acknowledged by user Hardware filter read-back measurement: Approx. 20 ms Software filter read-back measurement: No Short-term overcurrents during the switch-on procedure are tolerated.

Electrical properties

Nominal voltage12 / 24 VDC
Power consumptionMax. 8 W (note: Additional power consumption for each USB interface: Max. 2.75 W.)
FuseNo (note: Required fuse: Max. 5 A slow-blow per connection pin)
Reverse polarity protectionYes
Short-circuit proofYes

Operating conditions

Mounting orientation – AnyYes
Degree of protection per EN 60529IP66

Ambient conditions

Temperature – Operation-20 to +70°C housing surface
Temperature – Storage-20 to 80°C (note: See also temperature/humidity diagram)
Temperature – Transport-20 to 80°C (note: See also temperature/humidity diagram)

Mechanical properties

Front – DesignBlack
Dimensions – Width157 mm
Dimensions – Height113 mm
Dimensions – Depth45.4 mm
Weight658 g

Accessories

Optional accessories (19)
6PM.AC.RAM-001Brackets — RAM installation set 1 inch B-ball, diamond plate for panel, including screws, short connecting arm, round base plate, suitable for T50 mob…
6PM.AC.PAN-050Brackets — T50 mobile 5 inch, panel installation set
X67ACTQMXMounting tools — X67 torque wrench set, for X67 M8 and M12 connectors, for hex-head connectors
6PMTBT50.01-00Other — T50 mobile, connector for Superseal header, with connector contacts and dummy plugs
X67AC2E01POWERLINK/Ethernet — X67 M12 connector, 4-pin, D-coded, shielded, insulation piercing connection
X67CA3E41.0150POWERLINK/Ethernet-Cable — POWERLINK/Ethernet connection cable, RJ45 to M12, can be used in cable drag chains, 15 m
X67CA0E61.0200POWERLINK/Ethernet-Cable — POWERLINK/Ethernet connection cable, M12 to M12, 20 m
X67CA0E61.0150POWERLINK/Ethernet-Cable — POWERLINK/Ethernet connection cable, M12 to M12, 15 m
X67CA0E61.0100POWERLINK/Ethernet-Cable — POWERLINK/Ethernet connection cable, M12 to M12, 10 m
X67CA0E61.0050POWERLINK/Ethernet-Cable — POWERLINK/Ethernet connection cable, M12 to M12, 5 m
X67CA0E61.0020POWERLINK/Ethernet-Cable — POWERLINK/Ethernet connection cable, M12 to M12, 2 m
X67CA0E61.0010POWERLINK/Ethernet-Cable — POWERLINK/Ethernet connection cable, M12 to M12, 1 m
X67CA0E41.0500POWERLINK/Ethernet-Cable — POWERLINK/Ethernet connection cable, RJ45 to M12, 50 m
X67CA0E41.0150POWERLINK/Ethernet-Cable — POWERLINK/Ethernet connection cable, RJ45 to M12, 15 m
X67CA0E41.0050POWERLINK/Ethernet-Cable — POWERLINK/Ethernet connection cable, RJ45 to M12, 5 m
X67CA0E41.0030POWERLINK/Ethernet-Cable — POWERLINK/Ethernet connection cable, RJ45 to M12, 3 m
X67CA0E41.0020POWERLINK/Ethernet-Cable — POWERLINK/Ethernet connection cable, RJ45 to M12, 2 m
X67CA0E41.0010POWERLINK/Ethernet-Cable — POWERLINK/Ethernet connection cable, RJ45 to M12, 1 m
6PMCAT50.02-00wiring harness — T50 mobile, wiring harness starter set for T50 mobile, 2 m length, for Superseal connection

6PMT50.0502-19B: frequently asked questions

When can 6PMT50.0502-19B be shipped?

6PMT50.0502-19B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6PMT50.0502-19B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6PMT50.0502-19B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6PMT50.0502-19B, subject to availability and destination.
