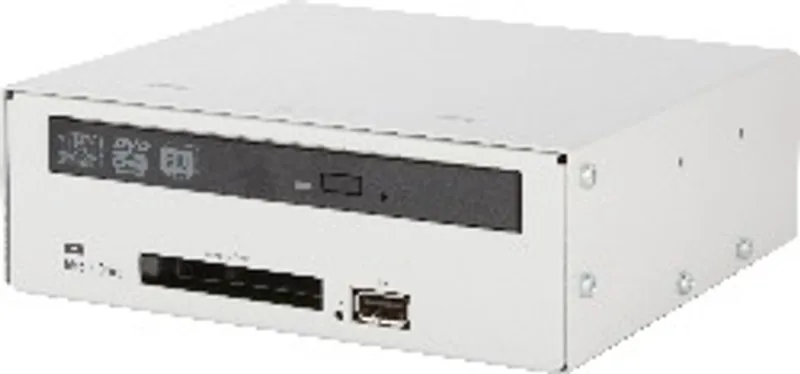

B&R 5MD900.USB2-02

Desktop or panel mount device (top-hat rail brackets)

MPN: 5MD900.USB2-02
Category: USB accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5MD900.USB2-02?

Desktop or panel mount device (top-hat rail brackets)

Integrated DVD-R/RW DVD+R/RW drive

Integrated IDE/ATAPI CompactFlash slot (hot pluggable)

Integrated USB 2.0 connection

+24 VDC power supply (back)

USB 2.0 connection (back)

Optional front cover

The USB media drive is equipped with a DVD-R/RW DVD+R/RW drive, CompactFlash slot and one USB interface on both the front and back. It is connected to a USB interface on the B&R industrial PC.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Max. cable length	5 m (without hub)

Interfaces

CompactFlash slot 1 – Type	Type I
CompactFlash slot 1 – Connection	IDE/ATAPI
CompactFlash slot 1 – Activity LED	Signals read or write access to an inserted CompactFlash card
USB – Type	USB 2.0
USB – Variant	Front: Type A; Back: Type B
USB – Transfer rate	Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s)
USB – Current-carrying capacity	Max. 500 mA

CD/DVD drive

Startup time – CD	Max. 14 seconds (from 0 rpm to read operation)
Startup time – DVD	Max. 15 seconds (from 0 rpm to read operation)
Access time – CD	Typ. 140 ms (24x)
Access time – DVD	Typ. 150 ms (8x)
Readable media – CD	CD/CD-ROM (12 cm, 8 cm), CD-R, CD-RW
Readable media – DVD	DVD-ROM, DVD-R, DVD-RW. DVD-RAM, DVD+R, DVD+R (dual layer), DVD+RW
Writable media – CD	CD-R, CD-RW
Writable media – DVD	DVD-R/RW, DVD-RAM (4.7 GB), DVD+R/RW, DVD+R (dual layer)
Read speed – CD	24x
Read speed – DVD	8x
Write speed – CD-R	10 to 24x
Write speed – CD-RW	10 to 24x
Write speed – DVD+R	3.3 to 8x
Write speed – DVD+R (dual layer)	2.4 to 4x
Write speed – DVD+RW	3.3 to 8x
Write speed – DVD-R	2 to 6x
Write speed – DVD-R (dual layer)	2 to 4x
Write speed – DVD-RAM	3 to 5x
Write speed – DVD-RW	2 to 6x
Write methods – CD	Disk at once, session at once, packet write, track at once
Write methods – DVD	Disk at once, incremental, overwrite, sequential
Data buffer capacity	2 MB
Data transfer rate	Max. 33.3 MB/s
Speed	Max. 5090 rpm ±1%
Noise level	Approx. 45 dBA at a distance of 50 cm (full read access)
Compatible formats	CD-DA, CD-ROM mode 1 / mode 2; CD-ROM XA mode 2 (form 1, form 2) ; Photo CD (single-/multi-session), enhanced CD, CD text ; DVD-ROM, DVD-R, DVD-RW, DVD-Video ; DVD-RAM (4.7 GB, 2.6 GB) ; DVD+R, DVD+R (dual layer), DVD+RW
Laser class	Class 1 laser
Service life	60,000 POH (power-on hours)
Interface	IDE (ATAPI)

Electrical properties

Nominal voltage	24 VDC ±25%, SELV+24 VDC power supply" in the user's manual."> (note: EN 60950 requirements must be observed; see section)
Overvoltage category per EN 61131-2	II

Operating conditions

Pollution degree per EN 61131-2	Pollution degree 2
Degree of protection per EN 60529	Front: IP65 (only with optional front cover), back: IP20

Ambient conditions

Temperature – Operation	5 to 45°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)
Temperature – Storage	-20 to 60°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)
Temperature – Transport	-40 to 60°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)
Relative humidity – Operation	20 to 80%
Relative humidity – Storage	5 to 90%
Relative humidity – Transport	5 to 95%
Vibration – Operation	5 to 500 Hz: 0.3 g (2.9 m/s² 0-peak)
Vibration – Storage	10 to 100 Hz: 2 g (19.6 m/s² 0-peak)
Vibration – Transport	10 to 100 Hz: 2 g (19.6 m/s² 0-peak)
Shock – Operation	5 g, 11 ms
Shock – Storage	60 g, 11 ms
Shock – Transport	60 g, 11 ms
Elevation – Operation	Max. 3000 m (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)

Mechanical properties

Dimensions – Width	156 mm
Dimensions – Height	52 mm
Dimensions – Depth	140 mm
Weight	Approx. 1100 g (without front cover)

Accessories

Required accessories (order separately)

0TB103.91	Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply.
0TB103.9	Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply.
5CAUSB.0050-00	USB cables — USB 2.0 connection cable - Type A - type B connector - 5 m
5CAUSB.0018-00	USB cables — USB 2.0 connection cable - Type A - type B connector - 1.8 m
