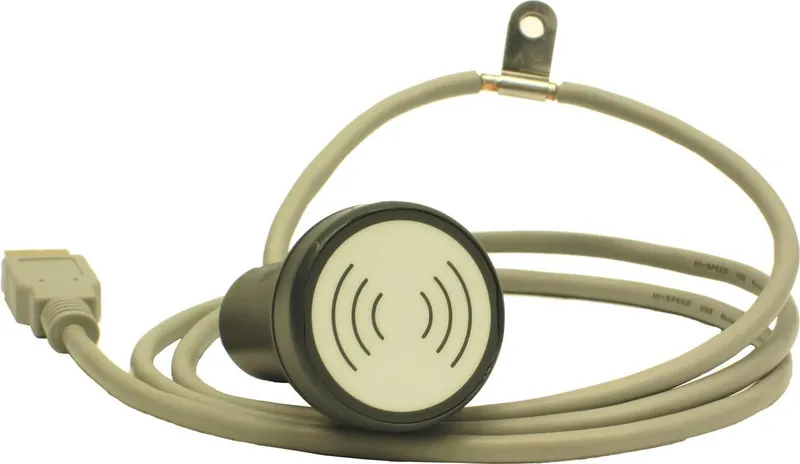

B&R 5E9010.29

13.56 MHz transponder read/write unitISO 15693…

MPN: 5E9010.29

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5E9010.29?

13.56 MHz transponder read/write unit

ISO 15693 compatible

USB interface

Transponder 13.56 MHz, read/write unit, mounting diameter 22.5 mm, USB connection cable length 1200 mm, IP65 protection.

Specifications

General information

Certifications – CE

Yes

Interfaces

USB – Type	USB 2.0
RFID read/write transponder unit – Type	For I-Code SLI transponder with amplitude modulation, carrier frequency 13.56 MHz
RFID read/write transponder unit – Read/Write range in air	Approx. 1 to 3 cm

Electrical properties

Current consumption	Max. 150 mA
Supply voltage	5 VDC ±20% (via USB)

Operating conditions

Degree of protection per EN 60529

IP65

Ambient conditions

Temperature – Operation	0 to 50°C
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 90%, non-condensing
Relative humidity – Transport	5 to 90%, non-condensing

Mechanical properties

Dimensions – Width	34 mm
Dimensions – Height	34 mm
Dimensions – Depth	60 mm
Weight	59 g

Accessories

Optional accessories (7)

5A9010.50	Miscellaneous — Transponder in the form of a credit card color white, read/write, SLI, 1 kbit, 13.56 MHz
5A9010.48	Miscellaneous — Transponder tag, blue housing, read/write, SLI, 1 kbit, 13.56 MHz
5A9010.47	Miscellaneous — Transponder tag, green housing, read/write, SLI, 1 kbit, 13.56 MHz
5A9010.46	Miscellaneous — Transponder tag, red housing, read/write, SLI, 1 kbit, 13.56 MHz
5A9010.45	Miscellaneous — Transponder tag, yellow housing, read/write, SLI, 1 kbit, 13.56 MHz
5A9010.44	Miscellaneous — Transponder tag, white housing, read/write, SLI, 1 kbit, 13.56 MHz
5A9010.43	Miscellaneous — Transponder tag, black housing, read/write, SLI, 1 kbit, 13.56 MHz
